Burkert Powertech conductivity meter 8225|8226 upgraded to 8222 8228
LEHIY item code: LH-0097
Quick buying check
This page helps you check Burkert Powertech conductivity meter 8225|8226 upgraded to 8222 8228 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The Burkert conductivity meter 8225/8226 is an upgrade to the 8222/8228 model, replacing the 418950 model (a custom order). The original model 418950 is discontinued, and its sensors and accessories are incompatible with the older model; accessories must be installed according to document S022.
Therefore, the replacement is the 8222 model: 00559618 + 00559168 + 00438680 (three units in total), replacing the 00418950. This achieves functional replacement. The probe length and chuck installation method are the same for both the 8225 and 8222 Burkert conductivity meters; only the wiring differs.
Type 8222 - Inductive Burkert Conductivity Meter Description: The Burkert 8222 is a compact measuring instrument for measuring the conductivity of liquids. The Burkert conductivity meter is equipped with a sensor that inserts and transmits data to a transmitter (with a detachable display).
The sensor consists of two electrodes and a Pt1000 temperature sensor.
The sensor itself has three different cell constants C: the sensor electrode for C = 0.01 / 0.1 is made of stainless steel; the sensor electrode for C = 1.0 is made of graphite.
The conductivity meter can operate without a display, but the device programming, visualization of continuous measurements, and process parameter functions require a display.
The 8222 model is available in the following configurations: - With three programmable outputs: two transistors and one two-wire 4-20mA current output;
- With four programmable outputs: two transistors and two three-wire 4-20mA current outputs. The transmitter converts the measurement signal, displays different parameters values in different measurement units (if a display is provided), calculates the output signal, and then transmits it via one or two M12 fixed connectors. Features: Perfect for clean water and trace concentrated liquids;
- direct connection to PLC integrated equipment;
- simulates diagnostic process values;

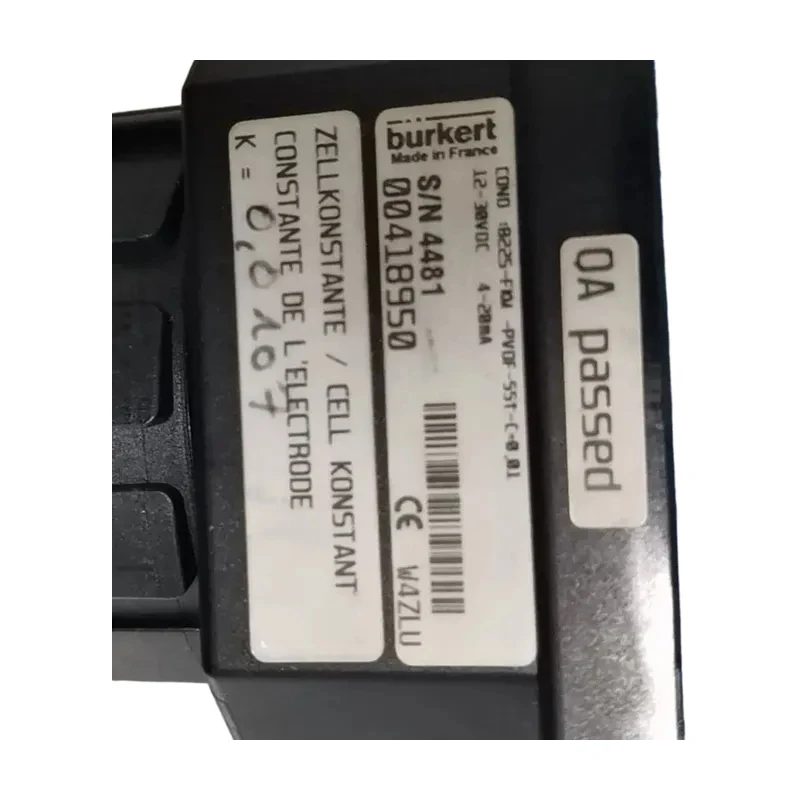

- three battery constants allow the device to be used over a wide conductivity range, such as reverse osmosis. BURKERT conductivity meter 00418950 (old model nameplate image);
- BURKERT conductivity meter 8225|8226 (upgraded to 8222, 8228 model);
- Functional replacement type 8228 - Inductive Burkert conductivity meter. Type description: The Bürkert 8228 inductive Burkert conductivity meter can be used under harsh conditions in various industrial fields and is suitable for measuring concentrated liquids, such as acid, alkali, or salt solutions, over a wide measurement range. Suitable applications include: cooling water monitoring (eg, dilution control), industrial water treatment, and clean liquid identification in CIP processes. The 8228 model has two versions: - A standard version with a G 2” interface, mounted on a Type S020 accessory;
- A CIP version with a 2” chuck interface, compliant with ASME BPE (1.5” chuck available upon request). Perfect for concentrated fluids, with a wide conductivity range. Features: Preset parameter variable version for direct start-up, direct connection to a PLC, compact device, analog diagnostic process values, PEEK, PVDF, or PP sensor specifications included. The German Burkert 8222 conductivity meter/transmitter, order number: 559620, is compact, robust, and versatile. Our company maintains a large inventory of Burkert products, sourced directly from Germany, 100% genuine, with a ten-fold compensation for any counterfeit products. We offer competitive pricing, comprehensive after-sales service, and professional technical support. Under normal use, it comes with a one-year warranty. New and old customers are welcome to visit our store for consultation. Burkert conductivity meters 8221, 8222, 8223, 8228 model 559618. Model numbers: 559168, 559620, 562420*
Plain language sourcing guide for Burkert Powertech conductivity meter 8225|8226 upgraded to 8222 8228
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert Powertech conductivity meter 8225|8226 upgraded to 8222 8228
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert Powertech conductivity meter 8225|8226 upgraded to 8222 8228 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
