Burkert pneumatic valve distributor, Burkert angle seat valve 2000 model .

Burkert pneumatic valve distributor, with ample stock of Burkert 2000 type angle seat valves and G-thread valves. Commonly stocked models include: 001253, 001252, 001248, 001249, 001250, 001251, 001398, and 001137.

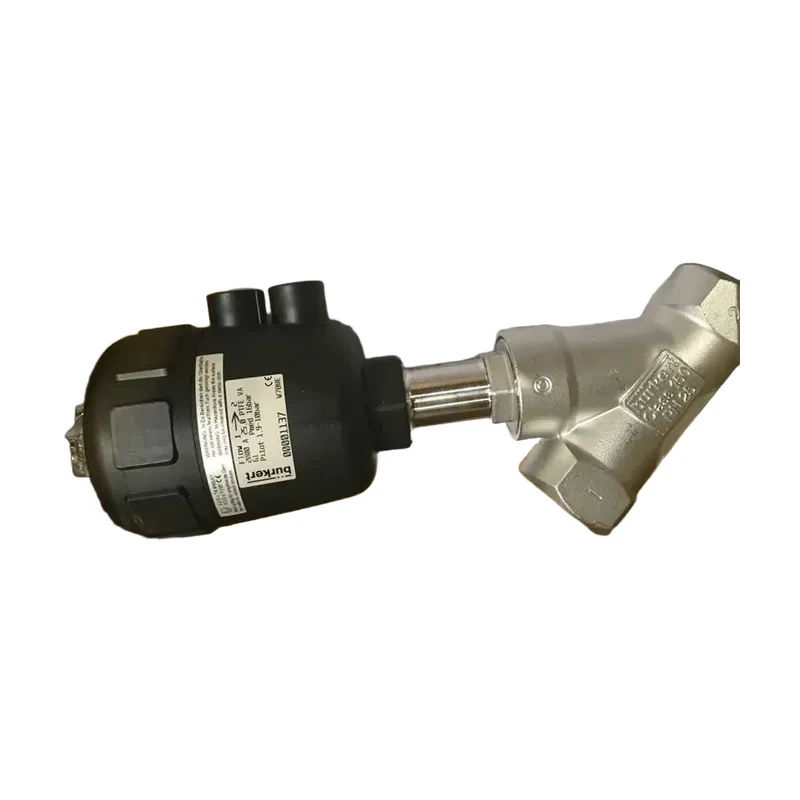

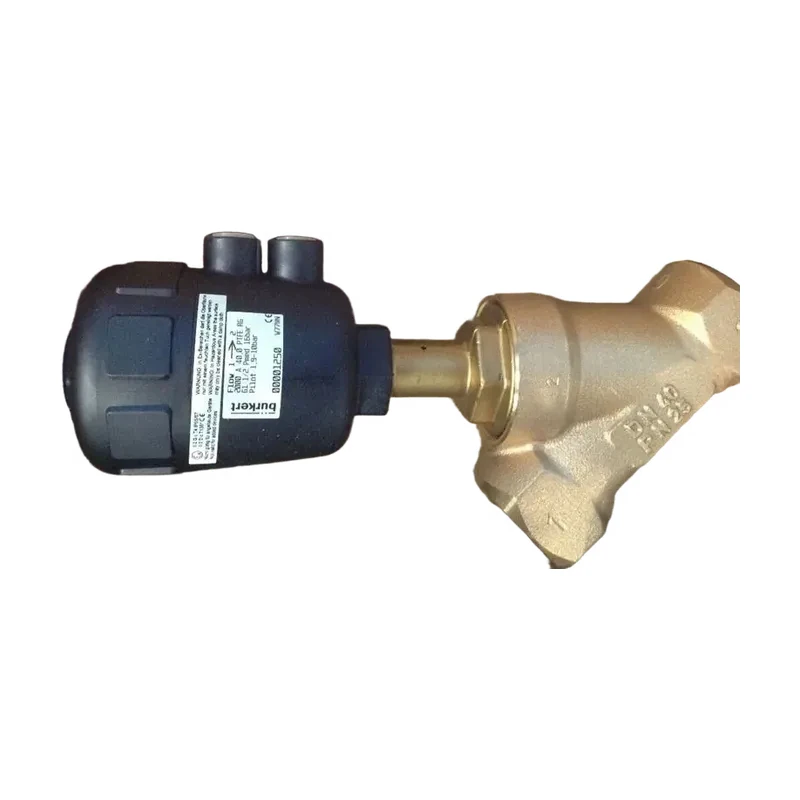

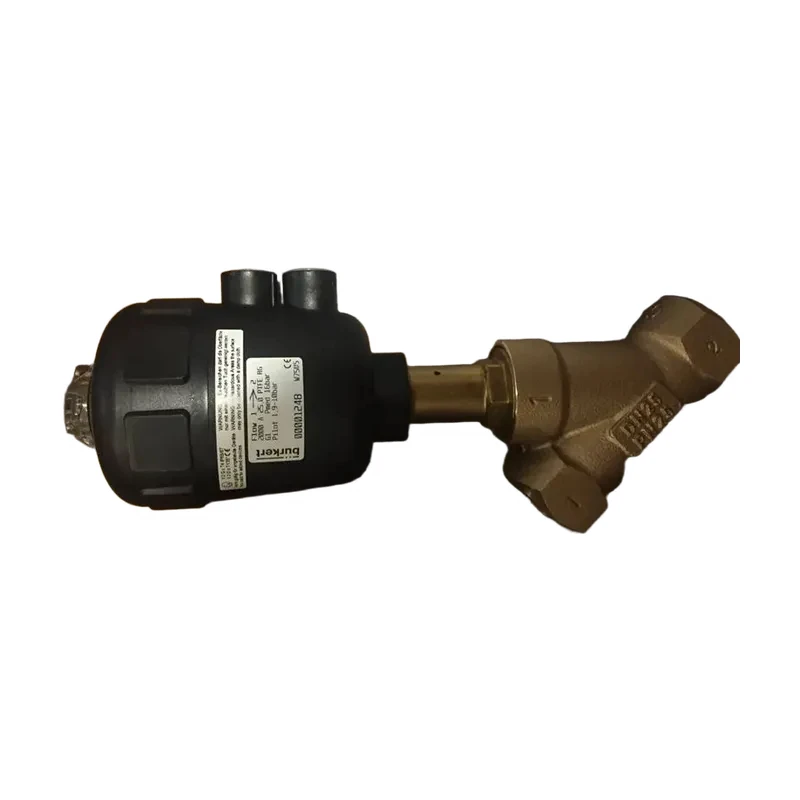

Burkert internal thread angle seat valves consist of a valve body and related accessories, currently available in the market made of stainless steel 304, 316, and various other materials.

They are common pipeline switches in automatic control systems and are widely used in various automatic machinery in printing and dyeing, bleaching, food, washing, chemical, water treatment, and pharmaceutical industries. Burkert internal thread angle seat valves feature no water hammer, no noise, and reliable sealing performance.

Their compact structure saves installation space, and they are positioned at a 45° or 90° right angle. The Burkert solenoid valve, used in conjunction with a pneumatically operated directional control valve, is suitable for frequent opening and closing in short periods.

It features rapid response, accurate action, and an extremely long piston life (over 10 million cycles), enabling precise temperature control and liquid dispensing. The Burkert internal thread angle seat valve maintains flow rate and saves space. It is a guided linear-stroke valve operated by a pneumatic actuator.

Widely used for frequent short-term starts, the Burkert angle seat valve is characterized by rapid response and accurate action. and closing. (Double-acting with spring return can also be selected according to customer requirements for more precise control.) Features of the Burkert internal thread angle seat valve:

• The angle seat valve has a valve open or closed position indicator.
• External pneumatic pilot, which increases service life and eliminates maintenance.
• A self-adjusting sealing gland between the overflow port and the slider improves sealing performance.
• The valve body angle seat structure allows for high flow rates (especially compared to ordinary gate valves), with a compact structure and fast response.
• High flow rate, low flow resistance, and no water hammer.
• Y-type design increases flow rate by 30%.
• The cylinder is made of stainless steel, making it superior in harsh environments and allowing for 360° rotation. Burkert pneumatic valves are available in stock. Applications of Burkert pneumatic angle seat valves in daily life: Gas control: neutral gases, air;
• Liquid control: automated industrial control fluids, food-grade dairy industry, domestic water, general pipeline fluid media, etc.
• Features Burkert valve open or closed position display.
• External pneumatic pilot increases service life and reduces maintenance.
• A self-adjusting sealing gland between the overflow port and the slider improves sealing performance.
• The valve body features an angle seat structure, enabling high flow rates (especially compared to ordinary Burkert gate valves). It boasts a compact structure and fast response. Ordering Instructions for Baode Angle Seat Valves:
• If the customer has special requirements for the product, the following details must be provided in the order contract: ① Structural length. ② Connection type. ③ Nominal diameter, full bore, reduced bore, and pipe size. ④ Operating medium and temperature/force range. ⑤ Testing and inspection standards and other requirements.
• Our factory can configure various drive devices according to the customer's special requirements.
• If the customer provides a specific Baode valve type and model, the customer should correctly explain the meaning and requirements of the model number, and a contract should be signed under the condition that both parties understand and agree.
