Burkert Fluid supplies Burkert 2000 pneumatic angle seat valves .
LEHIY item code: LH-0090
Quick buying check
This page helps you check Burkert Fluid supplies Burkert 2000 pneumatic angle seat valves . before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

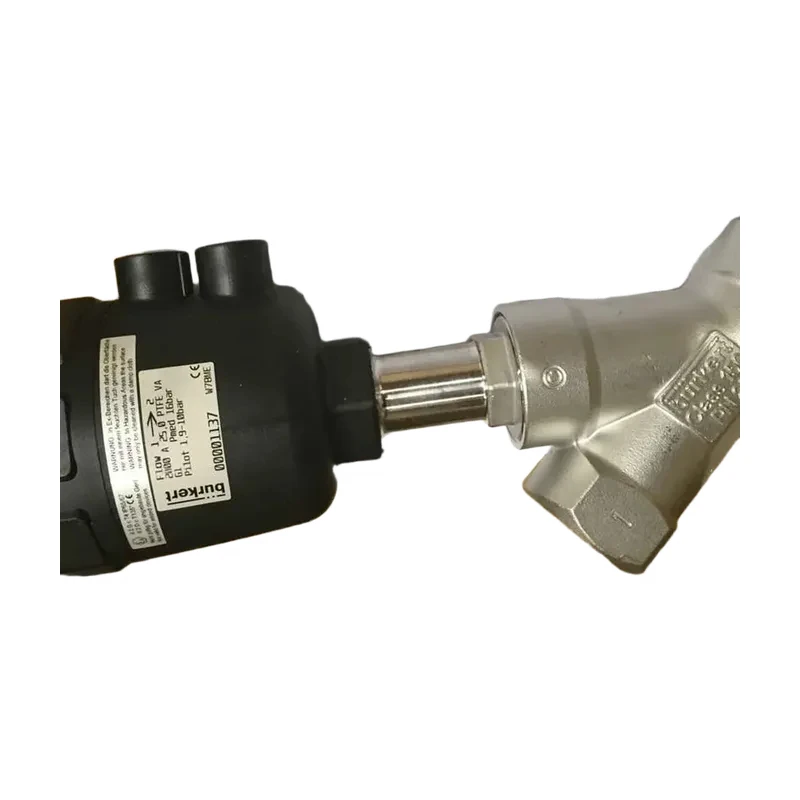

Baode Fluid presents the Burkert 2000 series pneumatic angle seat valve: The Burkert 2000 series externally piloted angle seat valve is driven by a single-acting or double-acting piston actuator. The Burkert angle seat valve actuator is available in two materials to suit different ambient temperatures.
The two-way valve body is made of gunmetal or stainless steel, offering high flow rates. A reliable self-adjusting packing seal provides high sealing performance.
This maintenance-free and durable valve can be equipped with various accessories to provide functions such as position indication, stroke limit, or manual on/off.
Baode Fluid supplies a large stock of Burkert 2000 series pneumatic angle seat valves; welcome to purchase! Connection methods for Burkert angle seat valves: Burkert pneumatic angle seat valves are available according to pipeline installation type: threaded connection, quick-connect connection, flange connection, and welded connection.

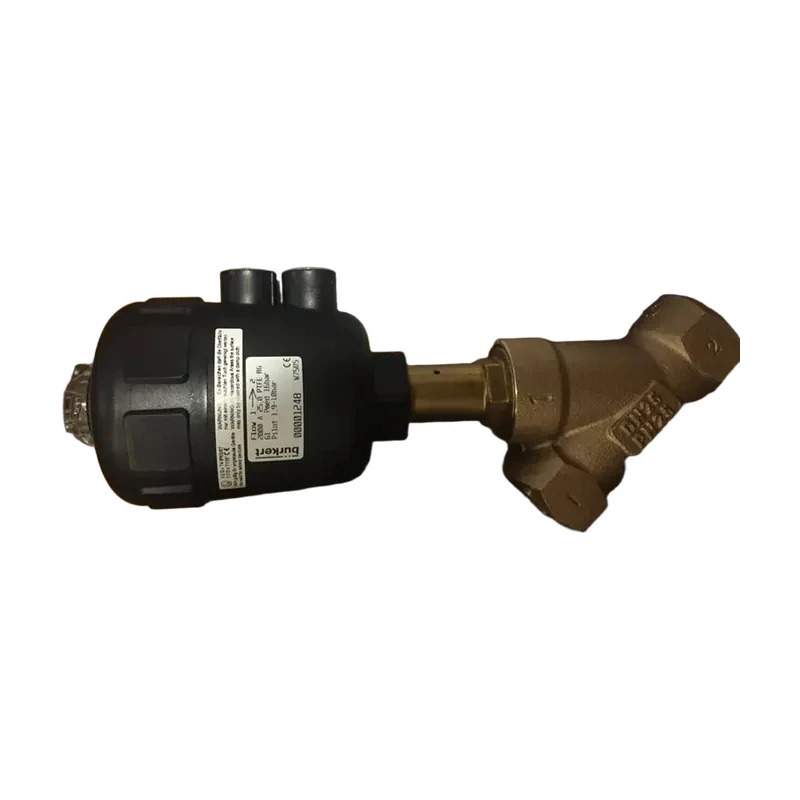

BURKERT is currently offering a promotion* on their 2000 series angle seat valves, primarily made of brass. Most of their G-thread angle seat valves are in stock, all genuine products directly from the German BURKERT factory.
BURKERT Fluid offers BURKERT solenoid valves, angle seat valves, flow meters, transmitters, conductivity meters, etc.
They also provide selection and supply of sealing components for BURKERT solenoid valves and angle seat valves to meet the needs of manufacturers who frequently need to replace sealing parts due to equipment wear.
The BURKERT angle seat valve repair kit has two parts: one is a sealing kit for the BURKERT angle seat valve actuator; the other is valve body parts.
The second part is the sealing diaphragm between the BURKERT standard valve body and the pilot head. Burkert angle seat valves from Germany maintain flow rate and save space. They are guided angle seat valves operated by a single-acting pneumatic actuator with spring safety protection.
Normally open or normally closed should be selected during use.
Angle seat valves are widely used for frequent short-time starts, featuring sensitive response and accurate action. When used with solenoid valves, pneumatic control can accurately control gas and liquid flow rates. They can achieve accurate temperature control, liquid dripping, and other requirements.
Angle seat valves are used in moist heat sterilizers to control steam volume and accurately control temperature. The working principle and technical parameters of Burkert angle seat valves: Baode Fluid supplies Burkert 2000 pneumatic angle seat valves in large quantities. Burkert angle seat valves maintain flow rate and save space.
They are guided angle seat valves operated by a single-acting pneumatic actuator with spring safety protection. Normally open or normally closed should be selected during use. The product is made of stainless steel casting and PTFE. It can be used in most gas, liquid, steam, and corrosive environments.
It has a radiator to protect the actuator, ensuring a long valve life.
The following are the characteristics and technical parameters of BURKERT brand angle seat valves: Single-acting and double-acting.
(Double-acting with spring return is also available upon request for more precise control.) BURKERT pneumatic angle seat valves are categorized by pipeline installation type: Threaded connection, Quick-connect connection, Flanged connection, Welded connection.
They are also categorized by actuator type: Plastic actuator angle seat valve, Stainless steel actuator angle seat valve. Finally, they are categorized by temperature: Normal temperature type (maximum 200°C), High temperature type (maximum 300°C).
Actual application parameters for BURKERT pneumatic angle seat valves: Pressure range: 0-2.5Mpa (PN0-PN25); Medium temperature: -20℃~+200℃ (normal temperature type), -20℃-+300℃ (high temperature type); Ambient temperature: -10℃~+60℃.
Threaded pneumatic angle seat valve specifications: DN10-65; Quick-connect pneumatic angle seat valve specifications: DN15-65; Flanged pneumatic angle seat valve specifications: DN15-125.
All-stainless steel pneumatic threaded (internal thread) angle seat valve: DN10-65; All-stainless steel pneumatic quick-install angle seat valve: DN15-65; All-stainless steel pneumatic flange angle seat valve: DN15-125. Valve body material: Stainless steel; Sealing material: PTFE; Actuator housing: Polyamide, stainless steel.
Applications of pneumatic angle seat valves in daily life: Controlled gases: Neutral gases, air; Controlled liquids: Automated industrial control fluids, food-grade dairy industry, domestic water, general pipeline fluid media, etc. Features of BURKERT angle seat valves:
- Valve open or closed position indicator.
- External pneumatic pilot, increasing service life and requiring no maintenance.
- Self-adjusting sealing gland between the overflow port and the slide block improves sealing performance.
- Valve body angle seat structure allows for large flow rates (especially compared to ordinary gate valves), compact structure and fast response.
Plain language sourcing guide for Burkert Fluid supplies Burkert 2000 pneumatic angle seat valves .
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
