Burkert turbine flow meter, models 8030/8032/8035
LEHIY item code: LH-0089
Quick buying check
This page helps you check Burkert turbine flow meter, models 8030/8032/8035 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The Burkert 8030/8032/8035 series turbine flow meters are widely used. Each Burkert turbine flow meter consists of two parts: the Burkert flow meter display module (SE30, SE32, SE35) and the Burkert flow meter connector base (S030 type).
The two are connected by a turbine clip, which locks in place by rotation.
The core component of the Burkert turbine flow meter base is the Burkert turbine rotor accessory, which enables continuous flow measurement of the liquid and accumulates feedback signals to the Burkert flow meter module.
The Burkert online turbine flow meter sensor (order numbers 449694, 553022, Burkert 551763 turbine rotor accessory), the Burkert 8035 flow meter, or batch controller is particularly suitable for neutral, slightly corrosive, and solid-free liquids.
The flow meter or batch controller consists of of a compact turbine sensor (S030) and a transmitter (SE35), which are easily connected via a bayonet joint. Bürkert's assembly system makes installation of all fittings suitable for DN06-DN65 simple.
The turbine sensor flow meter is available in two versions: standard signal output or battery-powered display version/accumulator version without output. The BURKERT 8035 is suitable for neutral and corrosive media.
It is used for neutral and mildly corrosive liquids that do not contain solids, outputting a 4-20mA analog signal, with relay output (optional).
Connection method: Pipe flange type: This refers to the flow meter having mounting flanges at both ends.
The German Burkert 8030 turbine flow sensor features a pulse output without The German Burkert 8035 online flow transmitter consists of an S030 online connector and an SE35 electronic module.
When liquid flows through the pipe, the turbine begins to rotate, generating a frequency signal proportional to the flow rate in the transmitter. accumulators (main and auxiliary accumulators), and two freely programmable relays. When equipped with two relay outputs, this transmitter becomes a switch controller.
Battery-powered models can be used for on-site display of flow and cumulative values.
The batch controller features two accumulators, two relays, and three batch trigger modes (on-site triggering via button, binary input, and PLC pulse width modulation). The user-friendly menu includes special functions such as online K-coefficient correction (Teach-in) and flow simulation.
Regarding Burkert turbine flow meters (models 8030/8032/8035): Burkert turbine flow meters are strictly prohibited from handling air bubbles, especially at the impeller. Avoid air bubbles and start-stop oscillations.
(In fact, if there are air bubbles in the pipeline, any flow meter will be inaccurate.) If air bubbles are generated at the front end of the pipeline, it is recommended to use a Burkert electromagnetic flow meter (except for deionized water, which is not recommended).
Electromagnetic flow meters are at least inaccurate, and turbine flow meters are particularly problematic; in short, they wear out turbine parts too much, either damaging the impeller or breaking the turbine shaft!
The main reason why the turbine shaft of the SET8 rotor accessory on the S030 base of the Burkert turbine flow meter is prone to breakage is: If the turbine shaft of the Burkert flow meter keeps breaking, it's not actually a shaft problem; it wouldn't normally break.
so quickly.
There's definitely a problem with the user's pipeline!
The main issues are: impurities and small air bubbles in the medium. Another possibility is that the pipeline is starting and stopping too quickly at the rear, causing a large reverse impact and potentially generating water hammer, leading to turbine shaft breakage.

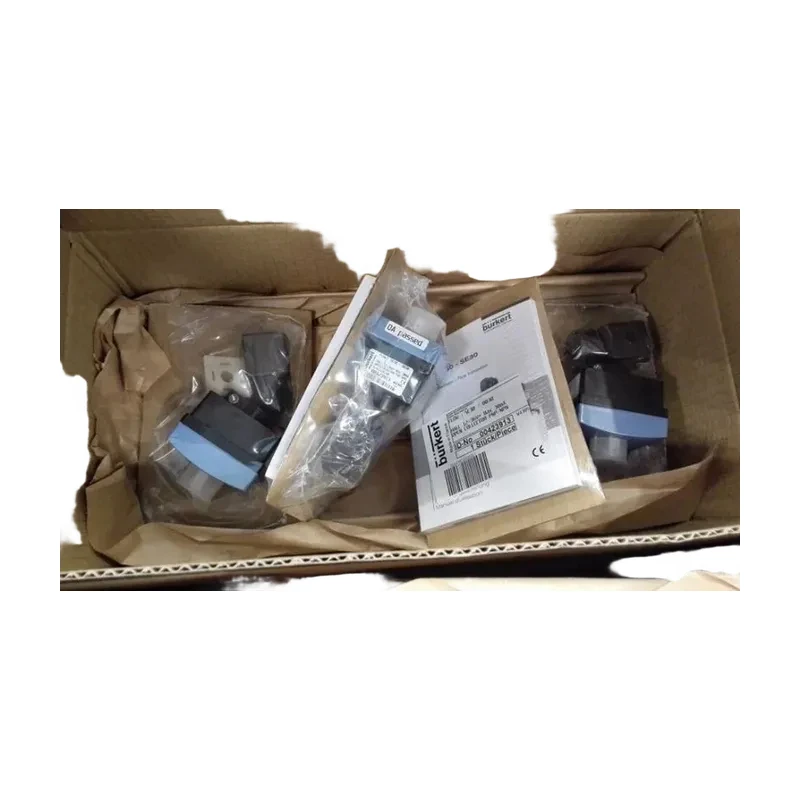

Photos of the Burkert 8030 flow meter turbine accessory 551763 and the Burkert turbine flow meter base S030.
- are included. Photos of the Burkert 8030 flow meter display module SE30
- are also included. For more information on the operation and use of German Burkert flow meters, including Burkert turbine flow meters, Burkert electromagnetic flow meters, Burkert mass flow meters, and Burkert insertion flow meters, please contact our technical support for product selection and operation manuals.
Plain language sourcing guide for Burkert turbine flow meter, models 8030/8032/8035
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert turbine flow meter, models 8030/8032/8035
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert turbine flow meter, models 8030/8032/8035 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
