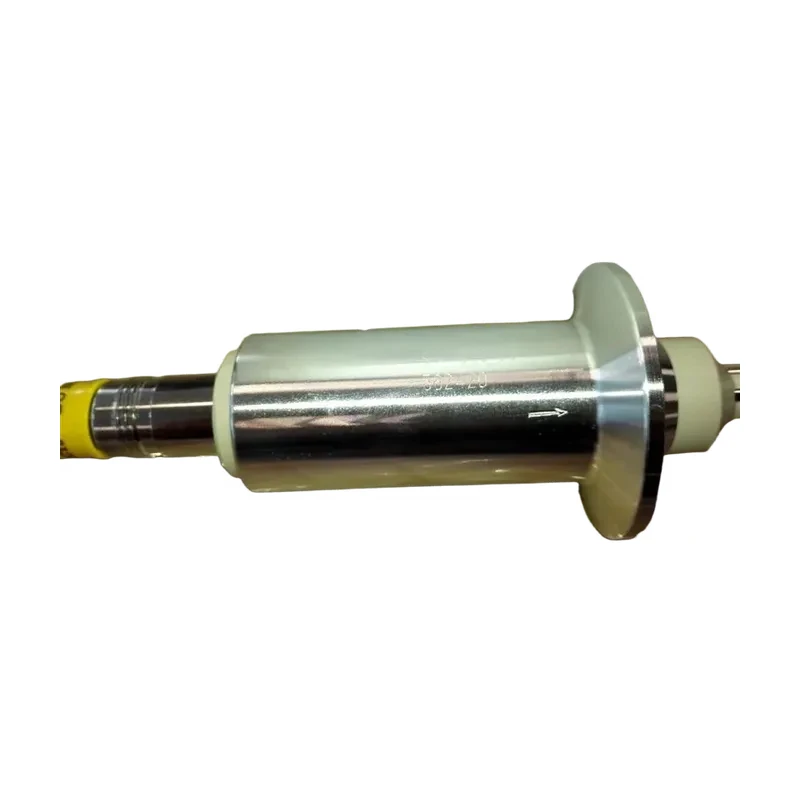

Burkert conductivity sensors 8221, 8222, 8228 sanitary grade
LEHIY item code: LH-0087
Quick buying check
This page helps you check Burkert conductivity sensors 8221, 8222, 8228 sanitary grade before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert conductivity sensors, including the 8221, 8222, and 8228 models, are sanitary probes used in laboratories, industrial production, and detection fields to measure the conductivity of various solutions such as ultrapure water, pure water, drinking water, and wastewater, or the overall ion concentration of water samples.
A common model of the 8221 Burkert conductivity sensor is 562420.93161500 (C=0.01). Due to their sanitary and durable design, Burkert conductivity probes are suitable for various applications, including the food and beverage industry, pharmaceuticals, biotechnology, and chemical industries.
The 8221 Burkert sanitary conductivity probe is widely used to determine the conductivity of pure or concentrated liquids. The probe is based on two different technologies: • A probe using a dual-electrode structure is suitable for measuring pure liquids, especially ultrapure water, where contamination can affect the measurement.
• A probe using a four-electrode structure prevents polarization effects and is insensitive to contamination. The ingenious design ensures excellent linearity throughout the entire measurement range. All versions integrate a temperature sensor (Pt1000). The probe must be connected to the 8619 multiCELL transmitter/controller.
Type 8228 - Bürkert Inductive Conductivity Meter: The Bürkert 8228 inductive conductivity meter can be used in harsh conditions across various industrial sectors and is suitable for measuring concentrated liquids, such as acid, alkali, or salt solutions, over a wide measurement range.
Suitable applications include: cooling water monitoring (eg, dilution control), industrial water treatment, and identification of clean liquids during CIP processes. The 8228 model has two versions: - A standard version with a G 2” interface, mounted on a Type S020 accessory;
- A CIP version with a 2” chuck interface, compliant with ASME BPE (1.5” chuck available upon request). Features of the Burkert 8221 conductivity sensor: 8221 Burkert conductivity electrode K=0.01 - Suitable for demanding applications in the hygiene industry (CIP and SIP compatible) - Expandable conductivity range through different models - Customizable to meet customer needs due to support for several important process connectors - Compatible with our 8619 Burkert multifunction transmitter/controller. Burkert conductivity sensors 8221, 8222, 8228 hygiene-grade conductivity probes. Burkert conductivity sensor usage instructions:
- When using the Burkert conductivity sensor, ensure the object being measured is in full contact with the sensor.
- When connecting the Burkert conductivity electrode to the Burkert sensor, align the notch of the BNC interface with the protruding end of the sensor interface and tighten.
- Before and after using the Burkert conductivity sensor, rinse both electrodes with distilled water and blot dry with filter paper. The application principle of the Burkert conductivity sensor: Conductivity sensor technology is a very important field of engineering research, used to measure the conductivity of liquids. It is widely used in human production and daily life, becoming a crucial detection and monitoring device in industrial production and technological development such as power, chemical, environmental protection, food, semiconductor industry, and marine research and development. Conductivity sensors are mainly used to measure and detect the characteristics of industrial production water, domestic water, seawater, and electrolyte properties in batteries. Based on different measurement principles and methods, Burkert conductivity sensors can be divided into electrode-type Burkert conductivity sensors, etc. Inductive Burkert conductivity sensors and ultrasonic conductivity sensors are included. Electrode-type conductivity sensors use resistance measurement based on the principle of electrolytic conductivity to measure conductivity;
- the conductivity measuring electrode behaves as a complex electrochemical system during the measurement process. liquids based on the principle of electromagnetic induction. Ultrasonic Burkert conductivity sensors measure conductivity based on the changes in ultrasound waves in liquids. The first two types of Burkert sensors are commonly used.
Plain language sourcing guide for Burkert conductivity sensors 8221, 8222, 8228 sanitary grade
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert conductivity sensors 8221, 8222, 8228 sanitary grade
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert conductivity sensors 8221, 8222, 8228 sanitary grade verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
