Burkert multiCELL 8619 Controller | Transmitter
LEHIY item code: LH-0084
Quick buying check
This page helps you check Burkert multiCELL 8619 Controller | Transmitter before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
MultiCELL 8619 Burkert Controller | Transmitter multiCELL - Multichannel/Burkert Multifunction Transmitter/Controller MultiCELL 8619 Burkert Controller Features: Directly connects to most flow, pH/ORP, chlorine, and conductivity sensors. Simple and intuitive user interface with a large graphic display and configurable backlighting (4 user-customizable views).
Basic Burkert transmitter/controller hardware offers expansion possibilities (up to 6 freely configurable slots). Industrial Ethernet (Modbus TCP, PROFINET, or EtherNet/IP) is optional. Functionality expansion is achieved through optional software.

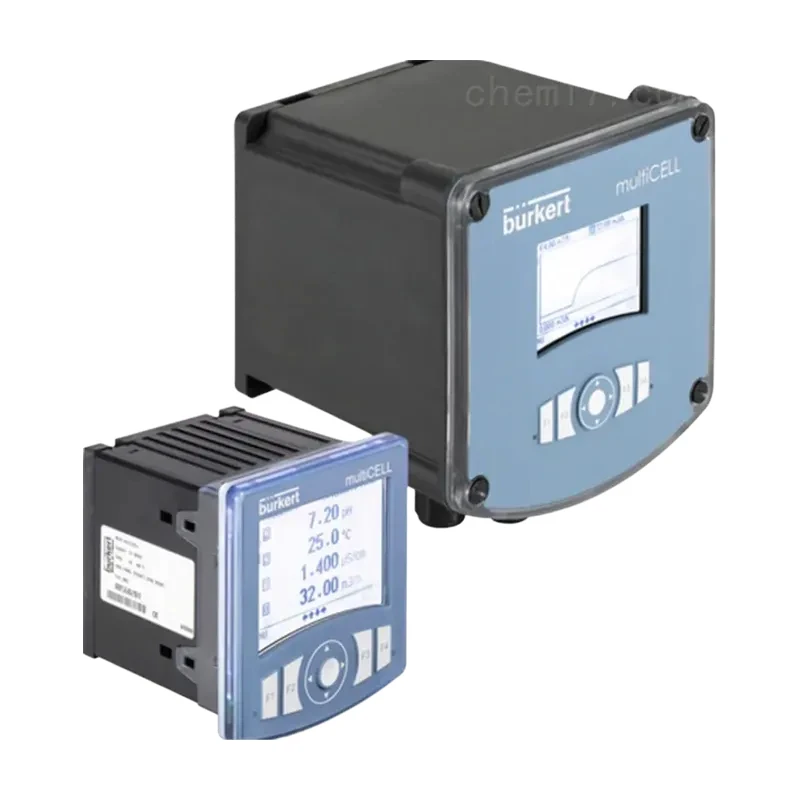

MultiCELL 8619 Burkert Controller Product Description: The 8619 multichannel and multifunction transmitter/controller is a microprocessor-based transmitter/controller available in panel-mount or wall-mount versions.
It can directly connect to sensors providing raw signals (such as pH, ORP, conductivity, and flow) for pulse detection or to sensors providing analog signals (0…20 mA, 4…20 mA, 0…2 V, 0…5 V, 0…10 V) for pressure, level, chlorine, etc.
It is ideal for measurement, control, and metering tasks in water treatment equipment (such as boilers, cooling towers, and reverse osmosis systems), food, and pharmaceutical applications. The modular design of the hardware and software provides high flexibility to adapt to specific applications and offers excellent cost-effectiveness.
Advanced electronics and new control and regulation algorithms ensure optimal process control, achieving the highest quality with minimal operator intervention. The Model 8619 supports Modbus TCP and PROFINET (Compliance Class B) or EtherNet/IP, allowing integration into most industrial Ethernet environments.
This means that all critical process values (such as measurement data, process diagnostics, or equipment status) can be easily transmitted to the automation system.
The Burkert 8619 controller is compatible with the following products: Type 8200 Analytical Probe Accessories; Type 8201 Sanitary pH Meters; Type 8203 pH and ORP Probes; Type 8221 Conductivity Sensors for Sanitary Applications; Type 8030 Inline Impeller Flow Measurement Devices; and Type 8232 Chlorine Sensors.
The multiCELL 8619 Burkert Controller/Transmitter operates on the principle that, due to its internal modular structure, the transmitter/controller can process different sensor types in parallel and selectively apply different operations to them.
They can perform multiple tasks in parallel, such as simple measurements via standard output signals and control and quantification by assigning mathematical formulas to selectable values. Signal and function modules can be easily interconnected through configuration. All functions can be adapted to actual process conditions through individual parameter settings.
The basic unit is panel-mounted or wall-mounted. It features analog and digital signal outputs, digital signal inputs, and a backlit graphic display on the front panel.
Depending on the application, up to six slots can be used, accommodating pH/redox, conductivity, analog and digital output modules, additional analog and digital input modules, and an industrial Ethernet module.
No separate 4…20 mA transmitters are required: the pH/redox potential and conductivity modules receive the raw sensor signal. Despite its powerful features, the multiCELL is easy and intuitive to The clear menu and function module structure makes configuration and parameter setting very simple and straightforward.
Users can configure four custom views. This allows users to display all parameters on one page or separately on four pages as needed.
For storing data such as measurements, users can select the data logger function, which uses a memory card in the existing device slot to store the data.
Uploading and downloading the complete 8619 database (including parameter settings for various applications and software updates) is a standard function when using the memory card.
Full integration with automation systems is possible via the optional industrial Ethernet module. Currently, Modbus TCP, PROFINET Class B compliance, and EtherNet/IP protocols are supported. A universal configuration file simplifies PLC programming.
Plain language sourcing guide for Burkert multiCELL 8619 Controller | Transmitter
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert multiCELL 8619 Controller | Transmitter
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert multiCELL 8619 Controller | Transmitter verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
