Burkert 8012 turbine flow meter, 0.3-10 m³/s
LEHIY item code: LH-0081
Quick buying check
This page helps you check Burkert 8012 turbine flow meter, 0.3-10 m³/s before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

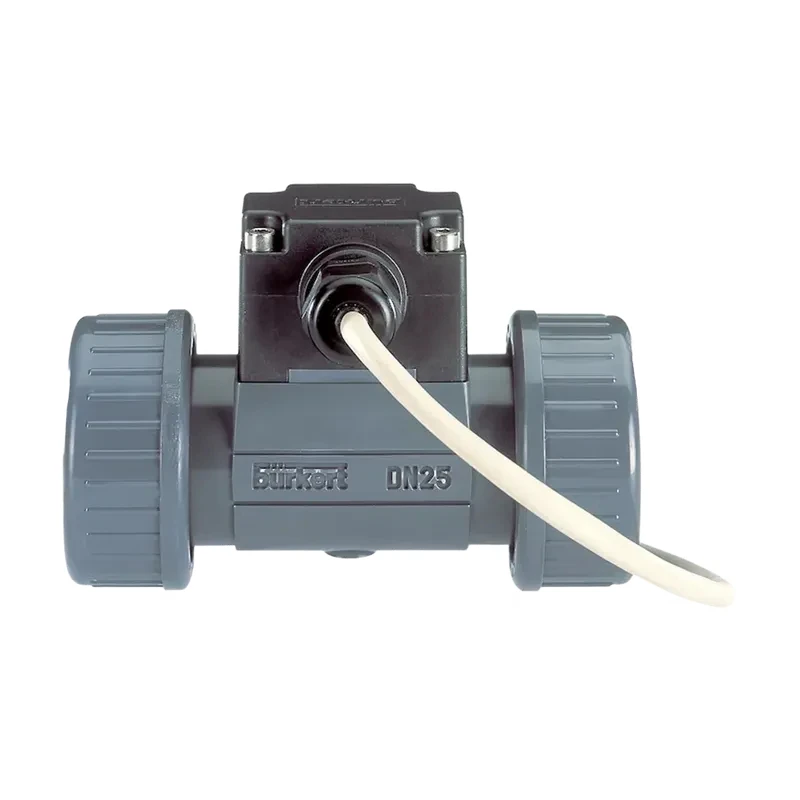

Burkert 8012 Turbine Flow Meter (0.3-10 m/s) - This Burkert turbine flow meter, model 8012 (product number 556056), is an electromagnetic version designed for neutral, slightly corrosive solids containing small amounts of liquid. A version is also available for IR transparent liquids in optical measurements.
The Burkert 8012 flow meter consists of accessory S012 and electronic module SE12. Burkert's assembly system simplifies installation for all accessories suitable for DN06-DN65. It can also be integrated into customer-customized valve systems.
With a fundamentally different electronic module type, the Burkert 8012 turbine flow meter features a pulse output that generates a flow proportional frequency or functions as an output switch, and also includes a 4…20 mA current output signal.
Burkert 8012 Turbine Flow Meter Features: Low cost for integration into piping systems, no additional piping required.
Optical or electromagnetic measurement principle. Output: 1 analog signal output 4...20mA and/or 1 transistor output (frequency or switch). Settable output (via PC USB interface).
Burkert 8012 Turbine Flow Meter Selection and Ordering Table: Burkert 8012 Turbine Flow Meter 0.3-10m/s Technical Parameters Measurement Range 0.5 - 1200 l/min Flow Velocity 0.3 - 10 m/s Accuracy 1) Standard K coefficient correction ≤ ±(0.5% of full scale * +.
2.5% of reading) Repeatability ≤ ±0.4% of reading Electrical Connection Rotatable fixed connector M12, 5-pin power cable Large cross-section: 1.5 mm2 Protection rating IP67 with M12 cable plug Relative humidity ≤ 80%, non-condensing medium temperature: Stainless steel or brass connector -15℃ to +100℃ (ambient.
temperature ≤ 45℃) or -15℃ to +90℃ (45℃ ≤ ambient temperature ≤ 60℃); Ambient temperature -15℃ to +60℃ (operating and storage); Maximum medium pressure PN16; Medium viscosity/solid particle content: up to 300 cSt/up to 1% (particle size: 0.5 mm); Connector material: Brass, stainless steel; Other materials: Electronic.
module housing/cable plug; Turbine, bracket; Shaft and bearing/seal: PPS/PA PVDF; Ceramic (Al2O3)/FKM (optional EPDM); Inner bore: DN 06 - DN 50; Operating power (V+): 12 - 36 V DC, filtered and rectified with reverse polarity and voltage peak protection; Current consumption < 60 mA (current type.
12 V DC, no load); Output: Transistor type; Current type (programmable type available on demand).
Transistor NPN (default)/PNP (programmable on-demand), open collector, up to 700 mA. NPN output: 0.2 - 36V DC (default).
PNP output: Power supply V+, frequency or switching mode 4-20 mA, sink mode (default), flow rate graph (default), programmable on-demand (source mode); Maximum loop impedance: 1125 Ω (36 V DC); 650 Ω (24 V DC); 140 Ω (12 V DC).
Plain language sourcing guide for Burkert 8012 turbine flow meter, 0.3-10 m³/s
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
