Burkert insertion flow meter, models 8041 and 8045
LEHIY item code: LH-0080
Quick buying check
This page helps you check Burkert insertion flow meter, models 8041 and 8045 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

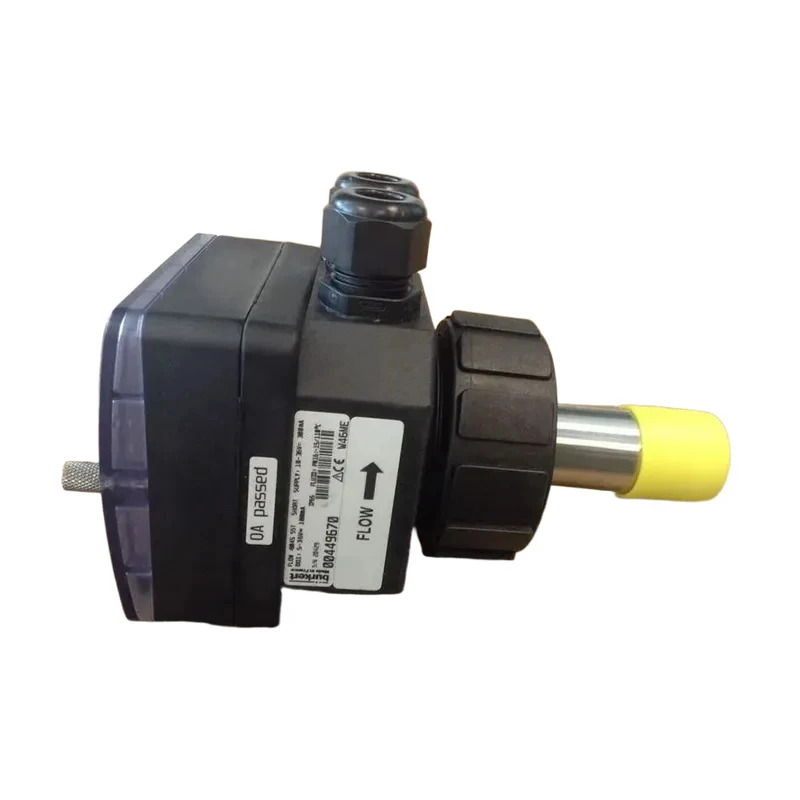

The Burkert 8041/8045 insertion flow meter is an electromagnetic flow transmitter suitable for pipelines from DN 06 to DN 400 with liquids having a conductivity greater than 20 μS/cm. This Burkert transmitter features a display and a keypad, with 4-20mA, relay, and pulse outputs.
The 8045 Burkert electromagnetic flow meter with a stainless steel probe is suitable for high-pressure (PN16) and high-temperature (110°C) media. The 8045 Burkert electromagnetic flow meter consists of an electronic module with a backlit display, operating buttons, and a PVDF or stainless steel sensor.
It is suitable for neutral and slightly corrosive liquids with a conductivity greater than 20 µS/cm in the DN06-DN400 range. It is equipped with a 4-20 mA output port and a digital output port (pulse output by default).
Some versions offer two relay output ports and one digital input port. Flow rate is calculated by two independent accumulators.
Available interfaces: - G2” interface for PVDF sensors - G2” or clamp interface for stainless steel sensors. The stainless steel Burkert sensor version is suitable for high-pressure (PN16) and high-temperature (110°C) applications. 8041 - Burkert Insertion Electromagnetic Flow Meter.
Description: The 8041 Burkert electromagnetic flow meter consists of an electronic module and a PVDF or stainless steel Burkert sensor. It is suitable for pipe diameters from DN06 to DN400 and for neutral and slightly corrosive liquids with a conductivity greater than 20 µS/cm.
The 8041 electromagnetic flow meter is equipped with 4...20 mA output, pulse output, and relay output. Different parameters can be set via 5 DIP switches, a push-button, and a 10-LED bar display. Available interfaces: - G2” connector for PVDF sensors - G2” or clamp connector for stainless steel sensors.
The 8041 flow meter with a stainless steel sensor can be used in applications with higher pressure (PN16) and higher temperature (150°C). Features of the Burkert 8045 electromagnetic flow meter: sensor with no moving parts; analog output signal; online cleaning (CIP); FDA-approved material; C22 alloy electrode version.
The Burkert 8041|8045 insertion flow meter and the 8045 electromagnetic flow meter (EMF) have been used for continuous flow measurement in industrial applications for many years. They are ideal for liquids with a conductivity greater than 5 μS/cm.
Besides water and simultaneous wastewater, other contaminated liquids are also typical applications for the 8045 Burkert electromagnetic flow meter. The basic measurement principle of the EMF is based on Faraday's law of induction.
signal is converted to a standard signal (eg, 4-20 mA or P) by integrated electronic components.
Our flow product portfolio includes various versions of "Insertion" and "Full Bore" EMF.
The magnetic field of the "Full Bore" version extends across the entire cross-section of the pipe, while for the Burkert 8045 electromagnetic flow meter insert version, the magnetic field emitted from the immersion sensor is transferred to a specific area of the medium.
When ordering a complete set of 8045 Burkert electromagnetic flow transmitters, please note: A complete set of 8045 electromagnetic flow transmitters includes the 8045 Burkert transmitter and the S020 Burkert insert fitting (pages 418-425).
Standard supply is FKM sealed; the standard supply of the transmitter also includes an accessory package with part number 558 102 (see attachment). Please order the appropriate 8045 Burkert transmitter and Burkert S020 insert fitting separately!
Plain language sourcing guide for Burkert insertion flow meter, models 8041 and 8045
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert insertion flow meter, models 8041 and 8045
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert insertion flow meter, models 8041 and 8045 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
