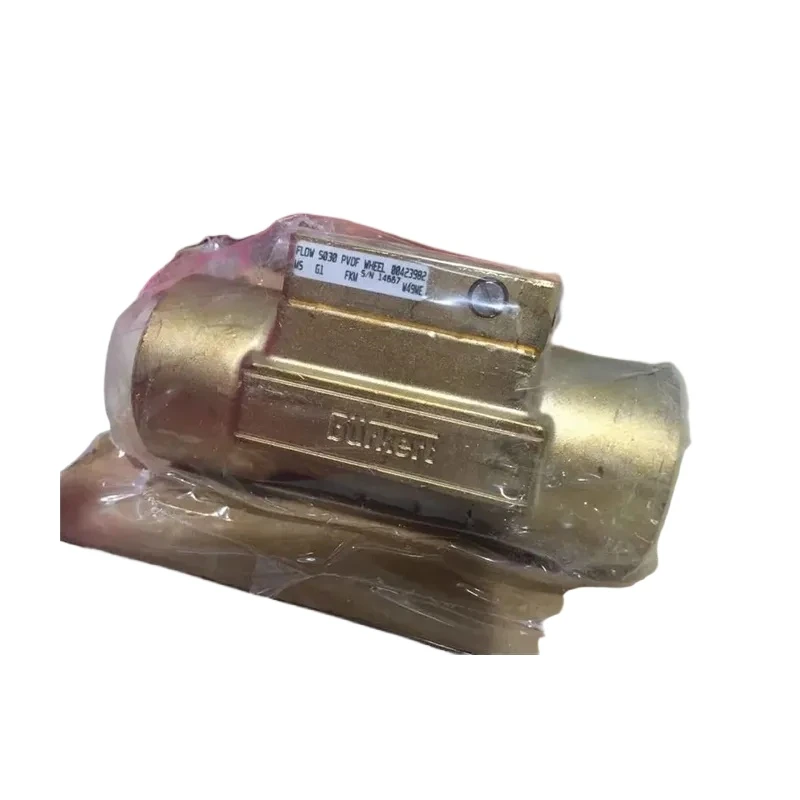

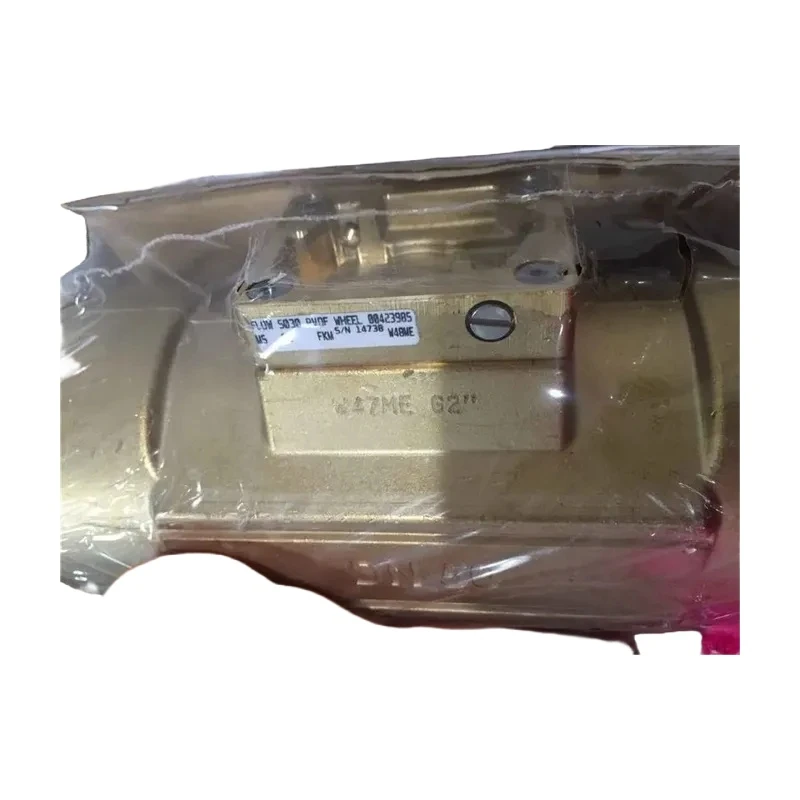

Burkert Flow Meter Base - S030 In-line Turbine Connector
LEHIY item code: LH-0079
Quick buying check
This page helps you check Burkert Flow Meter Base - S030 In-line Turbine Connector before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert Flow Meter Base - S030 Online Turbine Connector. The S030 Burkert online connector features a built-in turbine for flow measurement with Burkert sensors/transmitters. 8030 and SE30 Ex types, 8032 type, 8035T type, and 8035B type.
When liquid flows through the pipeline, the turbine rotates and generates a pulse signal; the pulse frequency is proportional to the flow rate.
This creates a leak-proof structure: the so-called "bayonet connection" technology detects the turbine rotation non-contactly through the Burkert wall connector. Burkert sensors can be installed or removed without disconnecting the pipeline or interrupting the process system.
Burkert S030 Online Turbine Connector Features: Suitable for flow measurement . DN 06 to DN 65 . Closed piping systems (sensor located inside the connector) . Bayonet connection technology .
Optional electronic modules for: - Display, monitoring, transmission - On/off control, batch control Burkert flow sensors and transmitters can be installed in horizontal or vertical pipes.
The S030 Burkert flow meter connector is compatible with the following devices: 8030 Burkert flow sensor 8032 on/off Burkert flow sensor/switch SE30 Ex Burkert flow sensor ATEX type 8035 Burkert flow transmitter Burkert flow meter base - S030 Online Turbine Connector Technical Specifications Measurement Range 0.5 -1200.
l/min Flow Velocity 0.3 -10 m/s (see flow-velocity curve on page 364) Accuracy 1) Calibrated using Teach-in (through a split transmitter) or standard K coefficient.
See the accuracy curve on the next page.
Repeatability ≤ ±0.4% of reading Medium temperature PVC/PP connector Stainless steel, brass, or PVDF connector 0-50℃/0-80℃ -15 to 100℃ Ambient temperature -15 to 60℃ (operating and storage) Maximum medium pressure PN10 (plastic connector), PN16 (metal connector, PN40 available upon request) (see pressure-temperature chart on.
the next page) Medium Particle content Viscosity Clean liquid, neutral liquid, slightly corrosive liquid, or liquid without solids, more than 1% (particle size: maximum 0.5 mm) Maximum 300 cSt Connector body material PVC, PP, PVDF, brass (CuZn39Pb2), stainless steel (1.4435/316L) Other materials Seal Screws Turbine Shafts and.
bearings FKM or EPDM (depending on connector material, see ordering list) Stainless steel A4 PVDF (PP or stainless steel available upon request) Ceramic (Al2O3) Inner bore DN 08 - DN 65 (DN 06 available upon request) Metal fittings for connection points; Plastic fittings with internal threads, welded joints, clip-on.
or flanges (external threads available upon request); Oil fittings (pipe fittings or external threads available upon request).
Plain language sourcing guide for Burkert Flow Meter Base - S030 In-line Turbine Connector
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
