Burkert tank bottom diaphragm valves, models 3235 and 2033.
LEHIY item code: LH-0077
Quick buying check
This page helps you check Burkert tank bottom diaphragm valves, models 3235 and 2033. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Depending on the downstream pipeline location, Burkert tank bottom valves can flexibly select left, right, or multiple discharge directions simultaneously.
The valve body is machined from a single piece of material and can be equipped with CIP/SIP interfaces and sampling ports; the outlet section can be welded or snap-fitted.
These Burkert valves can also be welded to the container sidewall, with the valve body's curvature adjusted to perfectly match the container's radius.
The actuator of the Burkert tank bottom diaphragm valve is designed with operational flexibility in mind, maximizing convenience for customers by providing ample space for tools used when replacing the diaphragm.
Various auxiliary functions can be integrated and added to the basic Burkert tank bottom valve design. 1) Sampling can be performed directly from the tank body, or the sampling valve can be welded to the bottom valve, or integrated with the bottom valve.
2) The bottom valve can be equipped with CIP/SIP functionality.
The CIP/SIP auxiliary valve can also be welded together or integrated into a block valve. 3) Burkert diaphragm valves that can be installed on the side wall of the tank for sampling.
4) Robolos multi-channel Burkert bottom valves, a patented product of Burkert, offer significant advantages for applications below storage tanks: greatly saving space for the valve assembly, reducing residual liquid volume, significantly lowering the height of the tank supports, increasing equipment stability and reliability, and reducing validation risks, truly solving.
problems for customers.
Burkert Robolux multi-channel diaphragm valve: The Burkert Robolux multi-channel diaphragm valve is a more advanced patented product.
In some applications, it even has advantages over the BLOCK multi-channel diaphragm valve, particularly in terms of residual liquid volume and control head installation space, giving your system and application a unique highlight.
Several standard valve bodies: Burkert tank bottom diaphragm valve 3235 introduction (agent): 3235 type - manually operated bottom drain valve Features: Seamless housing, no welds; diaphragm strictly separates the medium from the actuator; stainless steel or plastic; manual actuator; one-piece stainless steel housing with press-fit or welded joints.

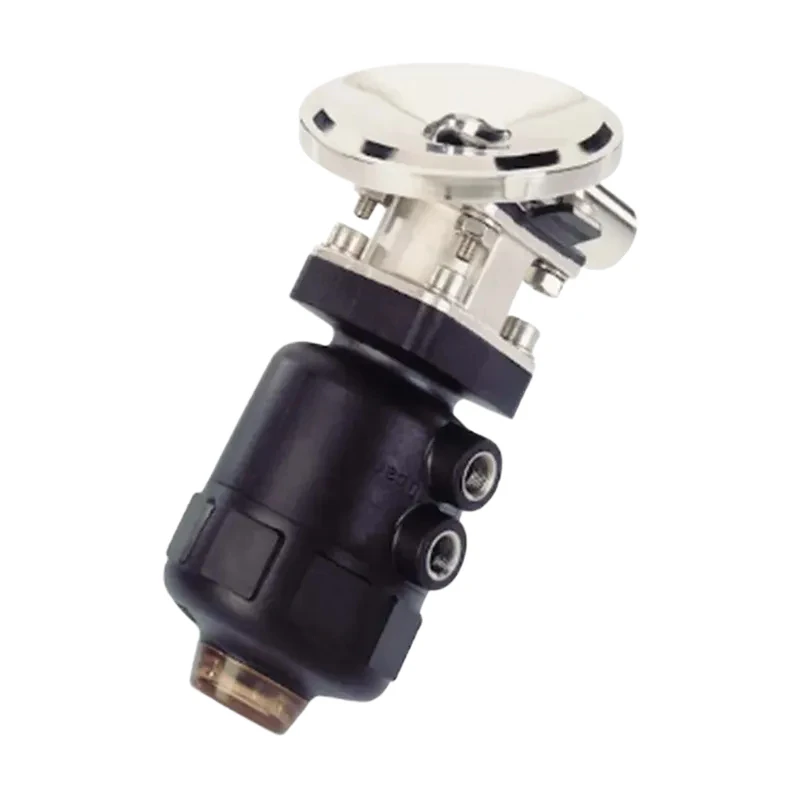

Burkert tank bottom diaphragm valve 2032 (agent): 2032 introduction type - pneumatically operated bottom drain valve. Burkert tank bottom diaphragm valve 2032 type description: Burkert bottom drain valve for controlling high-purity, sterile, corrosive, or abrasive media.
This valve features a very small dead zone volume, enabling precise container filling and emptying processes.
The valve body is constructed from a single, seamless ingot made of high-quality stainless steel. The bottom discharge valve flange has two beveled angles. This design simplifies its positioning and welding process within the container. piloted valve (single pilot valve, valve island, or control head).
Control function A closes in the rest position by spring force.
3235 manual tank bottom valve 2037 welded 1-inch, order number 370704; 3235 manual tank bottom valve ASME snap-fit 1-inch, order number 93108884; 3235 manual tank bottom valve ASME snap-fit 1 1/2-inch, order number 93109848; Tank bottom valve body, order number 93110018; Tank bottom valve.
body, order number 93110020; Tank bottom valve body, order number 93110021; Tank bottom valve body, order number 93110022.
Tank bottom valve body order number 93110076; snap-fit 3/4 inch Type 3235 manual tank bottom valve ASME welding 1/2 inch order number 93199096; Manual tank bottom valve order number 93198800; Type 3235 manual tank bottom valve ASME welding 1/2 inch order number 93198880; 3235 manual tank.
bottom valve ASME snap-fit 1 1/2 inch order number 93108692; Manual diaphragm valve order number 93199501; 3235 Manual Tank Bottom Valve, ASME Clip-on 1 1/2-inch, order number 351058; 3235 Manual Tank Bottom Valve, ASME Welded 1 1/2-inch, order number 342963; 3235 Manual Tank.
Bottom Valve, ASME Welded 1 1/2-inch, order number 345594; 3235 Manual Tank Bottom Valve, ASME Welded 1-inch, order number 345600; 3235 Manual Tank Bottom Valve, Welded 13.5X1.6, order number 343144; Manual Tank Bottom Diaphragm Valve, order number 259448; Tank Bottom Valve, order number 260696; 3235.
Manual Tank Bottom Valve, ASME Welded 1-inch, order number 265878.
3235 Manual Tank Bottom Valve ASME Welding 1 1/2" Order No. 265879; Manual Tank Bottom Sampling Valve Order No. 266493; 3235 Manual Tank Bottom Valve ASME Welding 1 inch Order No. 266496; Tank Bottom Valve Order No. 266497; Tank Bottom Diaphragm Valve Order No.
266500; Manual Tank Bottom Valve Order No. 266505; 2033 Pneumatic Tank Bottom Valve ASME Clip-on 2' Order No.
93108176; Diaphragm Valve Order No. 93199007; Diaphragm Valve Order No. 93199036; 2033 Pneumatic Tank Bottom Valve Order No. 93199849; 2033 Pneumatic Tank Bottom Valve 2852 Clip-on 2 1/2 inch Order No.
93149612 2033 Pneumatic Tank Bottom Valve, ASME snap-fit 1 1/2 inch, order number 93149124; 2033 Pneumatic Tank Bottom Valve, ASME welded 1 1/2 inch, order number 93149245; 2033 Pneumatic Tank Bottom Valve, ASME welded 1 1/2 inch, order number 93109988; 2033 Pneumatic Tank Bottom Valve, 2037.
welded 2 1/2 inch, order number 346664; 2033 Pneumatic Tank Bottom Valve, ASME welded 1 1/2 inch, order number 351000; 2033 Pneumatic Tank Bottom Valve, ASME welded 1 1/2 inch, order number 351001; 2033 Pneumatic Tank Bottom Valve, ASME snap-fit 1 1/2 inch, order number.
337843; 2033 Pneumatic Tank Bottom Valve, 2037 welded 1 inch, order number 371318.
2033 type pneumatic tank bottom valve, 2037 welding, 1 1/2 inch, order number 371326; 2033 type pneumatic tank bottom valve, ASME welding, 1 2033 type pneumatic tank bottom valve, ASME welding, 3/4 inch, order number 362737; 2033 type pneumatic tank bottom valve, ASME welding, 1 1/2 inch,.
order number 362738; 2033 type pneumatic tank bottom valve, ASME welding, 3 inch, order number 362740; 2033 type pneumatic tank bottom valve, ASME welding, 3 inch, order number 360844; 2033 type pneumatic tank bottom valve, welding, 88.9X2.3, order number 319980.
Plain language sourcing guide for Burkert tank bottom diaphragm valves, models 3235 and 2033.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
