Burkert Servo Auxiliary Solenoid Valve 6281
LEHIY item code: LH-0073
Quick buying check
This page helps you check Burkert Servo Auxiliary Solenoid Valve 6281 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

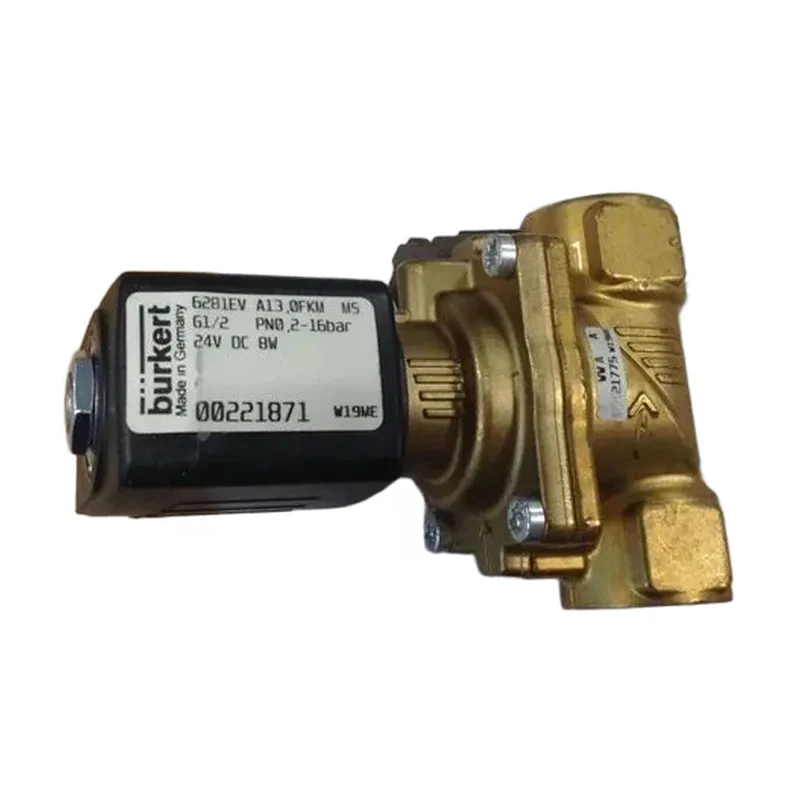

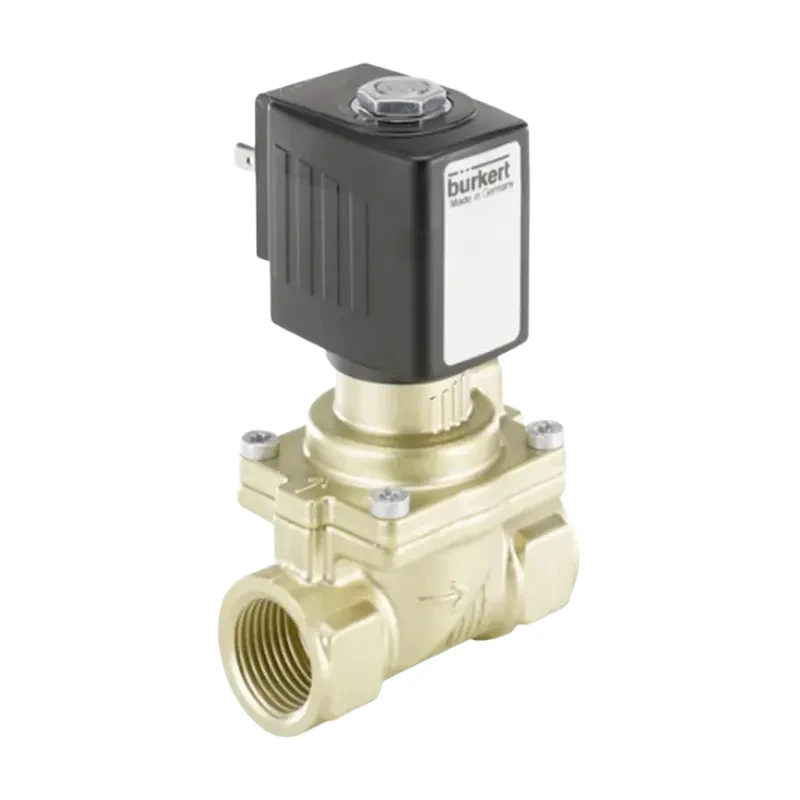

Burkert Servo-Assisted Solenoid Valve Model 6281 - Servo-Assisted Two-Position Two-Way Burkert Diaphragm Solenoid Valve. Description: The 6281 is a servo-assisted S.EV series Burkert solenoid valve. A small pressure differential is required to open the valve.
Various diaphragm materials and operating modes are available depending on the application.
The standard brass valve body meets all European drinking water standards. A dezincification-resistant brass option is available for other applications. A stainless steel option is also available. servo-assisted solenoid valve has an IP65 safety rating and a stainless steel NEMA 4X body.
Burkert Servo-Assisted Solenoid Valve Model 6281 Features: Servo-assisted diaphragm solenoid valve, maximum diameter DN 50, anti-vibration coil damping design, quiet valve operation, one-piece molded valve body with high surface quality, easy manual operation.
Burkert Servo-Assisted Solenoid Valve Introduction: Features a two-position three-way Burkert pilot valve and isolation diaphragm. solenoid core. This type of Burkert solenoid valve (eg, models 0142 and 5282) is mainly suitable for relatively dirty and corrosive media.
Burkert servo-assisted solenoid valve advantages: ■ Isolation diaphragm with no pilot orifice, making it less sensitive to dirty media. ■ The solenoid system is protected by the isolation diaphragm. ■ No media flows through the pilot valve when the Burkert valve is open!
This is a significant advantage compared to two-position two-way pilot valves.
■ Standard supply includes manual switch. ■ Response time is adjustable via the adjusting screw. Normally closed (NC) and normally open (NO) circuit functions allow for 180° rotation of the pilot valve.
6281 Technical Parameters: Nominal Diameter DN10-50 mm; Housing Material: Brass (compliant with DIN EN 50930-6) (Stainless steel, dezincification resistant upon request); Valve Interior: Stainless steel, brass, plastic (PPS); Sealing Material: NBR, EPDM, FKM; Medium: NBR, EPDM, FKM; Neutral media, such as compressed air, water, non-greasy media, hot.
water, acetone, water-containing alkaline hot air, tetrafluoroethylene solvent; Ambient Temperature: Maximum +55°C; Medium Temperature: NBR, EPDM, FKM;.
- 10°C to +80°C;
- 30°C to +90°C (epoxy coil, maximum +100°C);
- 0°C to +90°C (epoxy coil, maximum +120°C);
- Voltage: 0.24V/DC. 024/50-60, 230/50-60 Voltage tolerance ±10% Rated operating mode 100% continuous operation ED Electrical interface conforms to DIN EN 175301-803 Type A socket shoulder (formerly DIN 43650) for Type 2508 equipment socket (see attached ordering sheet, S. 12) Protection rating IP65, including equipment socket and cable connection IP65, including junction box Installation position arbitrary, *drive unit facing upward Switching time 2) 0.1~4 s (depending on nominal diameter and differential pressure) Coil insulation class Polyamide Class B Epoxy Class H
Plain language sourcing guide for Burkert Servo Auxiliary Solenoid Valve 6281
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
