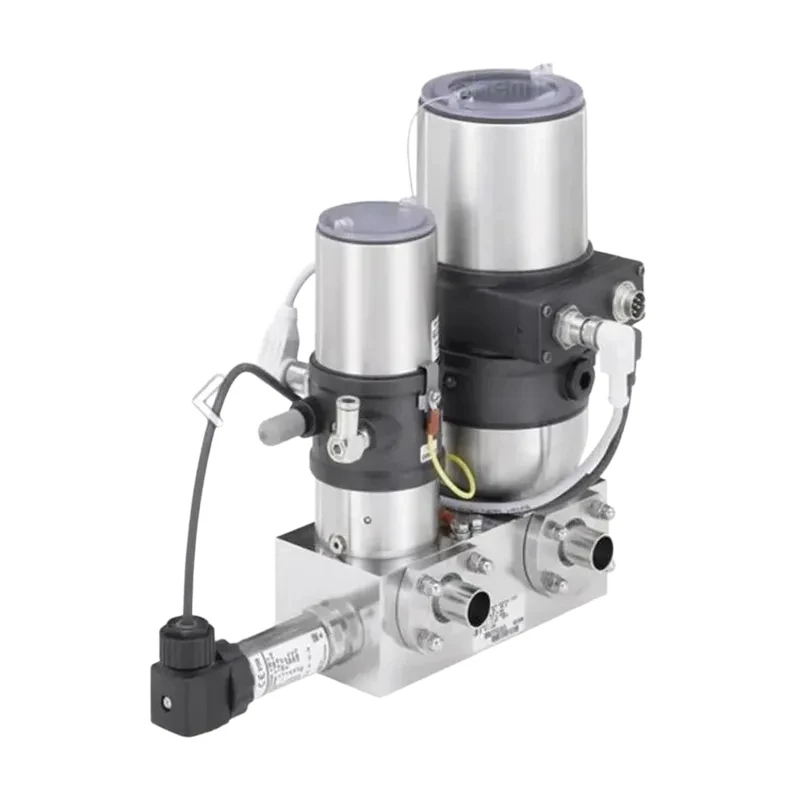

Burkert bellows control valve model 2380.
LEHIY item code: LH-0059
Quick buying check
This page helps you check Burkert bellows control valve model 2380. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Baodi Fluid distributes the Burkert Bellows Control Valve Model 2380 - Two-position, two-way Burkert Bellows Control Valve. Description: The Burkert bellows control valve is a pneumatically operated Burkert process valve equipped with a single-acting diaphragm actuator. The PTFE bellows ensures safe separation of the media and actuator.
The materials used and the design of the media chamber allow for use in medical or corrosive environments. The Burkert control valve is easy and convenient to clean. Highly demanding control tasks can be accomplished through combination with the controller (model 869x) and the integrated control profile within the bellows.
The small internal volume of the actuator saves significant space, resulting in an extremely compact structure and significantly reduced response time. Due to its frictionless construction, the Burkert valve offers excellent control performance and a linear characteristic curve. A variety of body and block solutions are also available.
Burkert 2380 Bellows Control Valve Models: 141266, 454424J, 649878, 502539, 414531D, 50294, 173450, 134238W, 134615Q, 134317, 132202, 197126. Burkert 2380 Bellows Control Valve Features: Suitable for neutral and corrosive media; media separation via PTFE bellows; medical and hygiene design.
The Burkert 2380 bellows control valve is a combination of a bellows valve and an 869x controller.
Range control units include: • Burkert Digital Electro-Pneumatic Positioner Basic Model 8696 • Burkert Digital Electro-Pneumatic Positioner Basic Model 8694 • 8692 Digital Burkert Electro-Pneumatic Positioner • Digital Electro-Pneumatic Positioner/Bukert Process Controller Model 8693.
Baodi Fluid, the agent for Burkert bellows control valve model 2380, provides the following technical data: KVS value: 0.4 ~ 2 m (h); Inner bore diameter: DN3 to DN10; Port connection (for media): . G threaded . welded . clamp type . G (DIN EN ISO 228-1) .
DIN 11850 series 0, DIN 11866 S. A / DIN 11850 S.
2, DIN 11866 s / B / DIN ISO 4200, DIN 11866 standard C / ASME BPE; Media supplied as needed: Gases and liquids (ultrapure, sterile, dirty, corrosive, abrasive, or even highly viscous, steam (sterilized); Media temperature: 0 ~ +80℃ (limited operating conditions -10℃ ~ +150℃ s1); Media pressure: Vacuum.
to 6 bar 2); Ambient temperature: -10 ~ +55℃; Seat leakage: less than 0.01% of valve's full opening capacity.
(ANSI Class IV) Control Media • Pilot Pressure • Pilot Interface Air Acc.
Complies with DIN ISO 8573-1 or Neutral Gas Standard . 5.5 to 7 bar (2) . Threaded Port (G⅛) Material, Media Contact . Valve Body . Bellows . Surface Quality of Threaded Port . Welded End and Surface Quality Clamp Connection . Stainless Steel 316L ASME BPE (1.4435 BN2) . PTFE . Ra 1.6's .
Ra 0.6μm (mechanical polishing) or Ra 0.4 abrasive m (electroplated) Material, not media contact.
• Actuator • Positioner (Controller) • Seal • 304 (1.4301) or CF-8 (1.4308) PPS, Stainless Steel EPDM, FKM
Plain language sourcing guide for Burkert bellows control valve model 2380.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert bellows control valve model 2380.
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert bellows control valve model 2380. verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
