Burkert solenoid valve model 5404 00140564*
LEHIY item code: LH-0054
Quick buying check
This page helps you check Burkert solenoid valve model 5404 00140564* before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

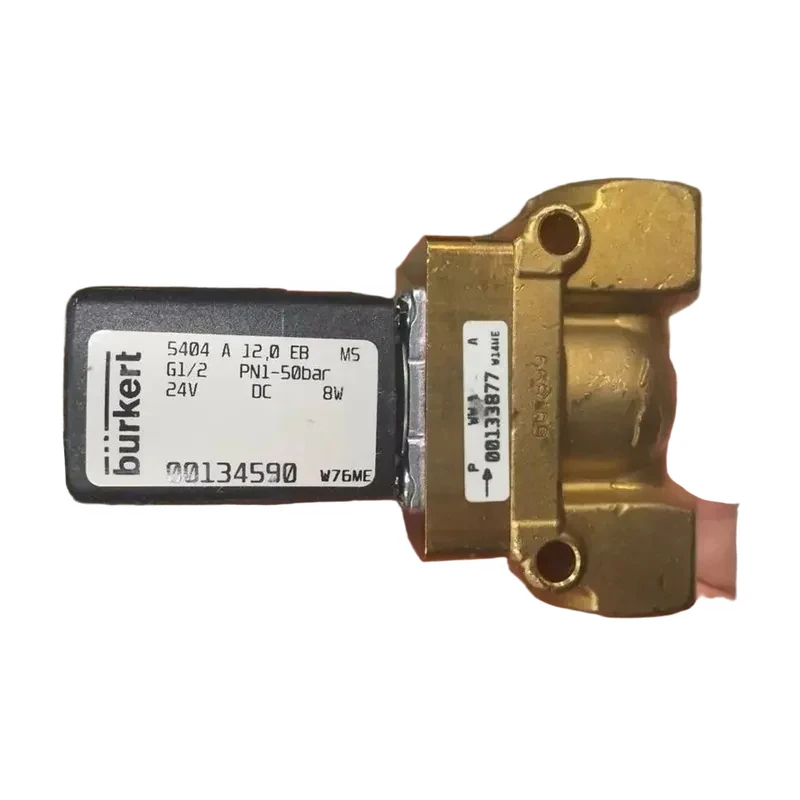

We are an authorized distributor of Burkert solenoid valves, model 5404 (00140564**). The original model 134590 is discontinued; the upgraded model is. 00140564. Please be aware that the Burkert 5404 solenoid valve is a typical high-pressure type.
The Burkert 5404 is a servo-controlled two-position, two-way piston valve.
Description: The Burkert 5404 is a servo-controlled piston valve, available in NC and NO specifications. A small pressure differential is required for the valve to function. The Burkert 5404 solenoid valve coil is coated with high-quality epoxy resin.
When used with a plug conforming to DIN EN 175301-803 Form A, the Burkert 5404 valve meets an IP65 protection rating.
The plug is not included in the shipment and must be purchased separately
- . Burkert 5404 Solenoid Valve Characteristics: Servo-controlled piston valve, maximum nominal diameter DN50, Category 2 explosion-proof specification. Burkert solenoid valves are suitable for gas and steam applications at temperatures not exceeding 160°C. Compressor pressure reducing valve. Burkert 5404 solenoid valve is suitable for gas and steam applications. Burkert 5404 model 00140564 detailed parameters: 5404 high-pressure solenoid valve, brass G1/2, product number 140564, type 5404 2/2 - A - normally closed - inlet port 1 (P/NC) | 12.00 mm (7/16 inch) | 1.00 bar - 50.00 bar (50.00 bar) | Brass | Inner thread - G1/2 | 24.00 V - 24.00 V | PTFE (Polytetrafluorethylene) | -10.00 °C - 100.00 °C | Valve Complete Agent for Burkert Solenoid Valve Model 5404
- * How to troubleshoot a Burkert Solenoid Valve Model 5404? If a malfunction occurs, please check: • Is the equipment installed correctly? • Are the electrical and fluid connections correct? • Is the equipment damaged? • Are all screws tightened? • Is the applied voltage and pressure correct? • Is there contamination in the pipeline? • Is the power supply sufficient? Possible reasons why the Burkert Solenoid Valve Model 5404 does not switch: • Short circuit or coil interruption. • Insufficient power. • Contamination of the magnetic core or core space. • Medium pressure exceeding the permissible pressure range. Possible reasons why the valve does not close: • Internal contamination of the valve. Spare parts for Burkert 5404 solenoid valves: • Coil kit (position 1) • Vulnerable parts kit for pilot control valve (position 2) • Vulnerable parts kit for pipe fittings (position 3) When ordering spare parts kits for Burkert 5404 solenoid valves, please specify the location and ID number of the equipment.
Plain language sourcing guide for Burkert solenoid valve model 5404 00140564*
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
