Burkert proportional solenoid valve model 2875 00299908 2mm
LEHIY item code: LH-0053
Quick buying check
This page helps you check Burkert proportional solenoid valve model 2875 00299908 2mm before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We are an authorized distributor of Burkert proportional solenoid valves, model 2875
- , with a 2mm base plate connection (2875-A-02, 0-AA-MS-FK01-024/UC-15). These are 2/2-way proportional valves from Burkert, Germany. We also supply Burkert proportional solenoid valves (models 2873 and 2875) directly from the German manufacturer. We provide first-hand supply and can provide Burkert factory shipping lists and import customs declarations. Typically, Burkert proportional solenoid valves require a Burkert 8605 controller for use. For details, please contact us. Overview of Burkert proportional solenoid valves: Burkert proportional solenoid valves are based on the principle of a spring-loaded solenoid valve that closes upon de-energization. By modifying the structure of the electromagnetic components in the Burkert solenoid valve, the spring force and the electromagnetic force of the coil current are balanced. The valve stroke and/or valve opening are determined by the magnitude of the coil current and/or electromagnetic force. maximum flow rates under operating conditions. Burkert proportional solenoid valves can be used to implement both open-loop and closed-loop control loops. Open-loop loops do not require actual value feedback, while closed-loop control loops adjust based on the deviation between the set value and the actual value. Type 2875 - Direct-acting 2-way standard Burkert proportional solenoid valve type description: The Burkert 2875 direct-acting solenoid control valve is used as a regulating unit in a control loop. Due to its resilient seat seal, the valve has excellent sealing performance (built-in shut-off function) and can achieve rated pressure commensurate with the nominal diameter. The Burkert valve's plunger has no friction, resulting in excellent regulating performance. This valve is particularly suitable for applications with high control requirements (wide control range, drying gases, etc.). Key characteristics of Burkert proportional solenoid valve positioning performance: ● Hysteresis: The largest difference in output signal when the input signal changes from small to large and from large to small, expressed as a percentage of the large output signal. ● Response Sensitivity: The smallest difference in setpoint value that causes a change in output signal, expressed as a percentage of the large output signal. ● Repeatability: The largest deviation of the output signal when the same input signal of the same magnitude is applied repeatedly in the same direction. ● Control Ratio: The ratio of Kv values at large and small openings (see calculation for proportional valves). Burkert proportional solenoid valves can achieve a control ratio of up to 1:500. We are an authorized distributor of Burkert proportional solenoid valves, model 2875
- , with a 2mm baseplate connection. The Burkert proportional solenoid valve 2875 is compatible with the following products: Type 8605 PWM control electronics for proportional solenoid valves;
- Type 2518A device plug;

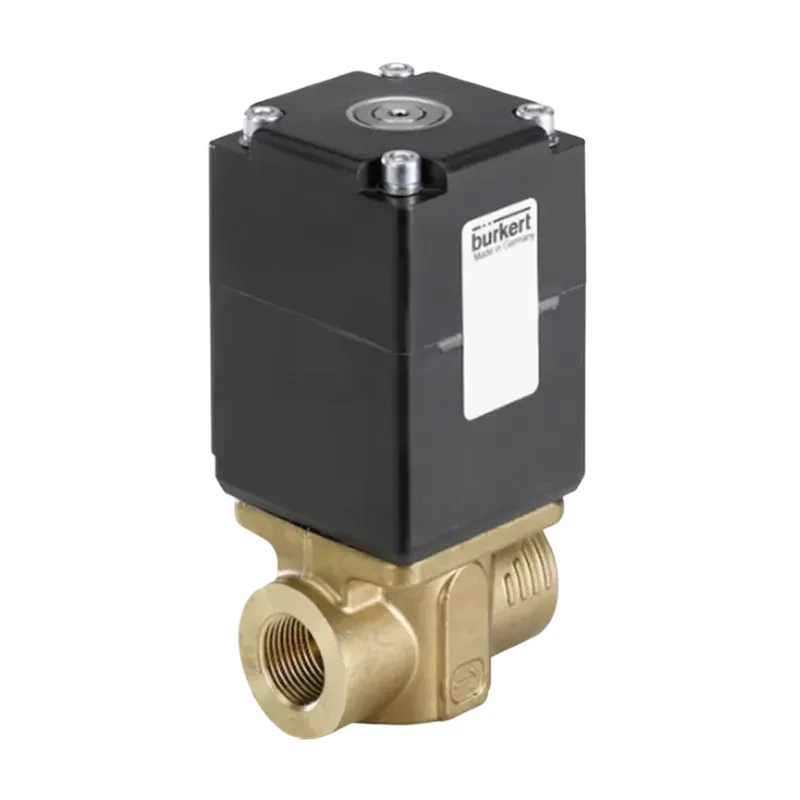

- and Type 8611eCONTROL universal controller. The proportional solenoid valve can be controlled using either the Burkert 8605 controller or the Burkert 8611 universal controller. In principle, the Burkert 8605 controller converts the analog setpoint signal at the input into a corresponding pulse-width modulated signal output, which controls the Burkert proportional solenoid valve. Furthermore, the Burkert 8605 controller features current regulation to compensate for coil heating, adaptability of small and large coil currents to the applied pressure conditions, zero-point cutoff, and ramp functionality. The Burkert 8611 universal controller can control process values such as temperature and frequency, or output PWM signals to control Burkert proportional solenoid valves. Detailed specifications of the Produkt-Foto Typ 2875 Burkert proportional solenoid valve
- : 2875 Burkert proportional solenoid valve with brass base plate connection. Product number 299908. Type 2875 2/2 - A - normally closed - inlet port 1 (P/NC) | direct-acting | 2.00 mm | EPDM (Ethylene-propylene-diene rubber) | Brass | Flanged | 24.00 V - 24.00 V | -1.00 bar - 20.00 bar | -30.00 °C - 90.00 °C
Plain language sourcing guide for Burkert proportional solenoid valve model 2875 00299908 2mm
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
