Burkert solenoid valve 6013 model 137533 (Bordi Fluid)
LEHIY item code: LH-0051
Quick buying check
This page helps you check Burkert solenoid valve 6013 model 137533 (Bordi Fluid) before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

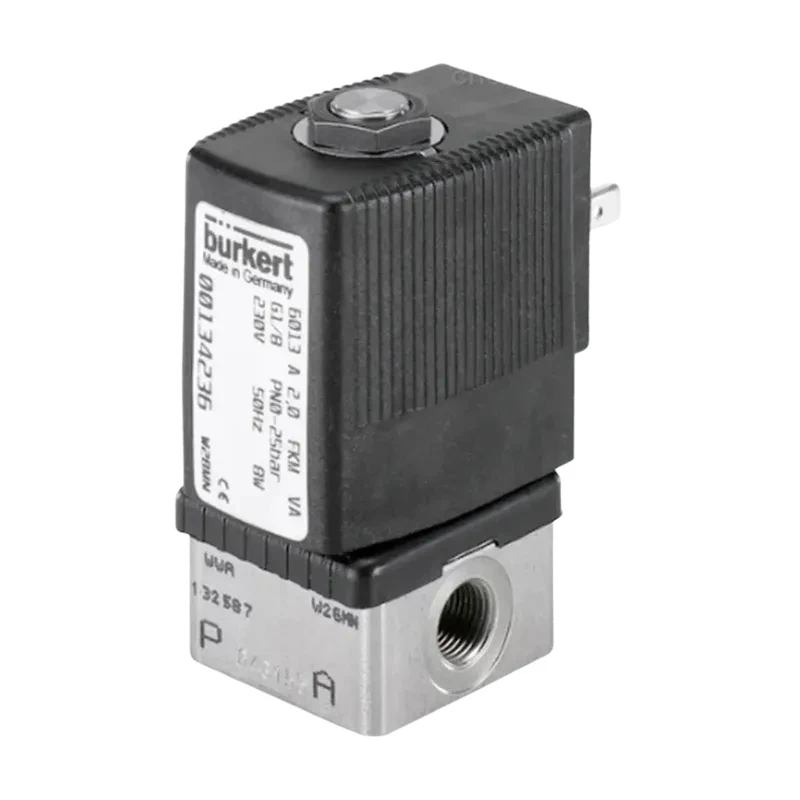

Burkert Solenoid Valve Type 6013 137533 6013-2/2 Normally Closed Burkert Solenoid Valve - DN2 - FKM Seal - Stainless Steel Body - G1/4" - 024/DC-8 6013 Burkert Solenoid Valve for LPG Normally Closed G 1/4 Stainless Steel 2mm 0-12bar 24V/DC 137533 Type.
6013 - Direct-Acting Two-Position Two-Way Burkert Piston Solenoid Valve Type Description: The Burkert 6013 is a direct-acting piston solenoid valve.
The stop is welded to the piston guide for improved pressure resistance and sealing. Various sealing materials are available depending on the application. The Burkert solenoid valve base plate interface allows for modular mounting on a base plate, saving space.
The solenoid coil is encapsulated in polyamide or chemically resistant epoxy resin.
Available in pulse coil type and with "kick and The "drop" electronic circuit type (2511 plug) is used to reduce power consumption. A manual switch type is optional for quick commissioning and easy maintenance. It is compatible with DIN EN 17301-803 Type A cable plugs.
The Burkert 6013 model solenoid valve has an IP65 safety rating and a stainless steel body (NEMA 4X).
Features of the Burkert 6013 solenoid valve: Direct-acting compact solenoid valve, large diameter DN 6.0; anti-vibration coil with welded iron core conduit for improved sealing; explosion-proof; energy-saving; pulse type.
Burkert 6013 model solenoid valve 137533 product data: 2/2-way solenoid valve, direct-acting, powerful valve, diameter up to DN13; vibration-resistant, bolted coil system; welded plunger conduit for increased sealing; explosion-proof version for high-pressure gas and liquid variants.
Technical attributes: surgical direct-acting actuator type; plunger valve; main valve working principle; shut-off valve working principle; switching function; switch; media separation; no valve function.
Function Switch Position 2 Valve Function Manual Actuation No Flow Above Seat Nominal Pressure Small 0 Bar Nominal Pressure Large (Gas) 50 Bar Nominal Pressure Large (Liquid) Thirty Bar Main Valve Hole 1 (P) (mm) 4 mm Main Valve Hole 1 (inch) 5/32 inch Kv Value (Water) 0.54.
m³/h Main Valve Welding Material Stainless Steel Port Connection 1 Type Internal Thread Port Connection 1 Thread Type G Port Connection 1 Thread Mark 1/4 Port Connection 2 Type Internal Thread Port Connection 2 Thread Type G Port Connection 2 Thread Mark 1/4 Valve Seat Material Stainless.
Steel Seat Seat Seat Seal Material Plastic Valve Seat Seal Material PTFE (Polytetrafluoroethylene) Sealing External Material PEEK (Polyetheretherketone) Low Temperature Environment -40°C Coil Rectifier No Coil Wiring Polarity Restoration Diode No Coil Features Suitable for High Temperature Actuators Thermal Insulation Rating H Voltage Tolerance -10% Voltage Tolerance +10% Voltage.
Frequency 50 Hertz AC voltage is valve set opening time no valve set closing time no back pressure no vacuum version no analysis version no oxygen version no oil burner valve no steam version no low noise version no main valve with integrated screen no high temperature environment 55 C.
high temperature medium 180 C voltage/rated voltage 230 V voltage/rated voltage 230 V installation length 55 mm valve structure valve completion DC voltage no battery voltage no rated power consumption 16 W ^ surge power consumption AC 105 V · one electrical connection sorting plug pattern form A.
according to DIN EN contact electrical connection quantity 2 + ground conductor cable plug delivery does not include electrical connection position in the direction of flow left protection type (IP large, with suitable connector) IP65 coil type placed on top coil insulation material class (shell) plastic coil insulation material (shell).
epoxy coil size 42 mm coil wiring operation overvoltage protection no nominal/duty cycle 100%.
Plain language sourcing guide for Burkert solenoid valve 6013 model 137533 (Bordi Fluid)
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert solenoid valve 6013 model 137533 (Bordi Fluid)
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert solenoid valve 6013 model 137533 (Bordi Fluid) verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
