Burkert Solenoid Valve
LEHIY item code: LH-0050
Quick buying check
This page helps you check Burkert Solenoid Valve before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert solenoid valves, distributed in Shanghai, are isolation valves of models 0330, 0131, and 5282. German Burkert solenoid valves ensure safe and continuous process control through media isolation. Media-isolated Burkert solenoid valves are crucial for fluid control.
The specific application of various Burkert media-isolated valves depends on the actual process conditions and media properties. Burkert media-isolated solenoid valves are primarily used for precise mixing and metering of coatings, dust suppression, reliable fire extinguishing, and wastewater screening.
Below are typical application examples of Burkert solenoid valves in particle handling. create the desired color. After each process, rinsing prevents color contamination. However, corrosive substances in the coating can damage the valve.
To avoid this problem, we use a wear-free ceramic valve seat, a material also resistant to corrosive media.
The valve diameter is 2mm-5mm to prevent fluid passage blockage caused by pigments. Dust Suppression – Used in Coal Production: Clean air is essential for preventing air pollution or explosive dust mixtures. Dust must be quickly suppressed. Water is drawn from mixing the ground or deep wells and reused.
This results in the potential presence of large particulate pollutants.
Servo-controlled solenoid valves employ media-isolated pilot valves, are insensitive to particles and minerals, and have a large DN50 diameter. Reliable Fire Extinguishing – Highest operational reliability for fire sprinkler system components: Sprinkler head seals are secured by glass bulbs, which can break if above heated a set temperature.
If the bulb breaks due to fire or external force, the gas pressure level drops, and the pressure sensor activates the water valve. Because the water pressure is located in the pipes and the valve does not move, the formation of particles and corrosive substances is not uncommon.
However, media-isolated solenoid valves ensure a reliable supply of extinguishing water to the sprinkler system when needed. Wastewater Screening – Clean wastewater screening in wastewater treatment plants is the starting point for the basic wastewater treatment process. The solids filtered out by the screen are mainly composed of organic matter.
During decomposition, these substances can generate explosive gases. With the help of the stable and durable 5282 solenoid valve, water jet cleaning of filters can be precisely controlled and explosions avoided. Burkert Solenoid Valve Agent: Isolation Valves 0330, 0131.

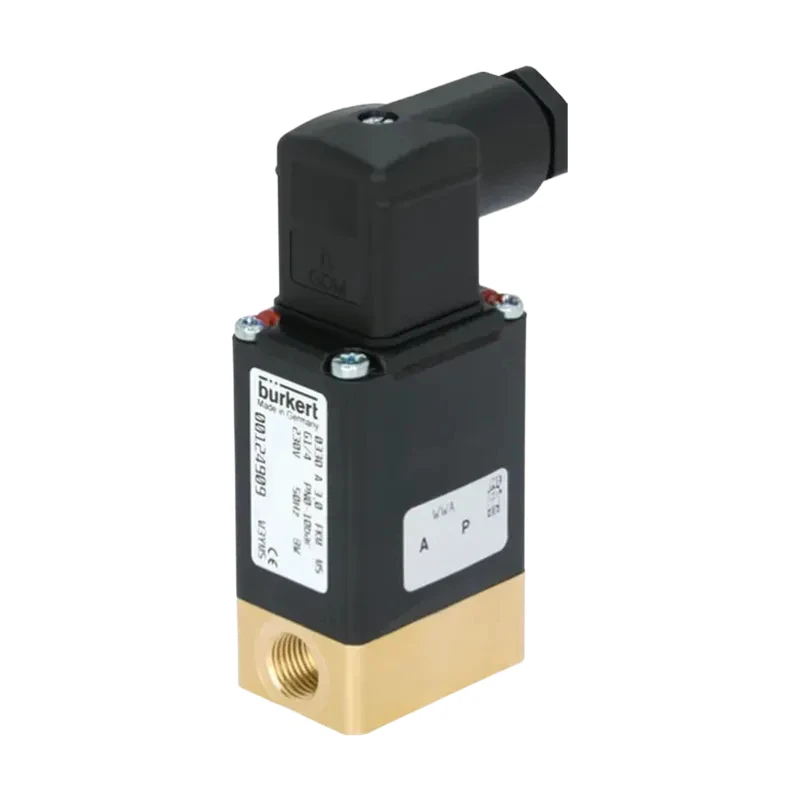

Features of the German Burkert Media-Isolating Solenoid Valve 0330, 0131: The Burkert 0330 solenoid valve is a direct-acting, media-isolated Burkert rotary armature solenoid valve. Available in two-position two-way and two-position three-way configurations.
The two-position three-way configuration can be used as a distributor or mixer.

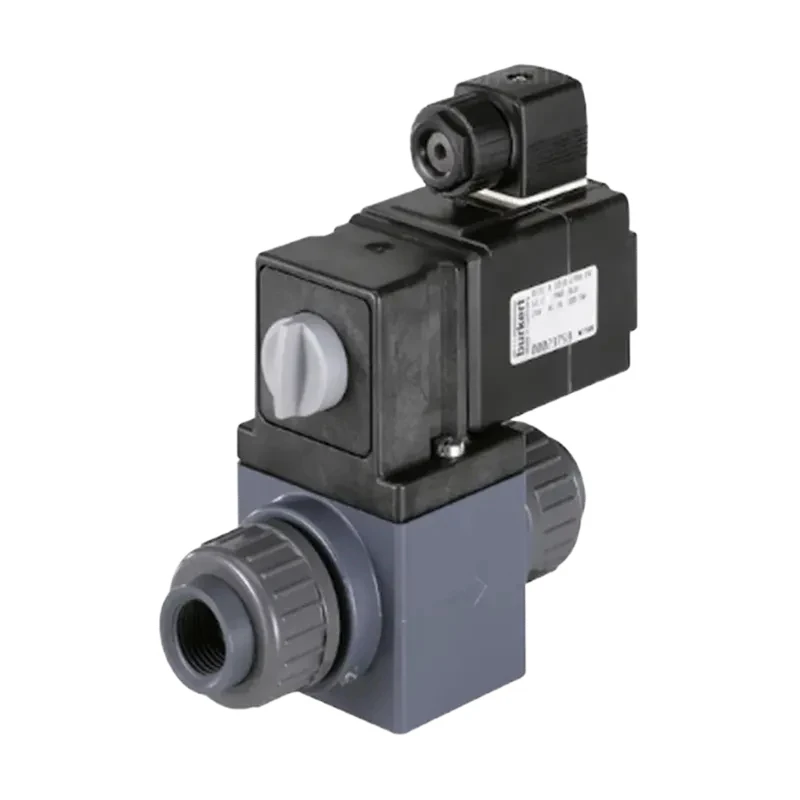

Various diaphragm materials and operating modes are available depending on the application. The standard brass valve body meets all European drinking water standards. Other valve body materials include stainless steel (316L), PVDF, and polypropylene. The solenoid coil is encapsulated in chemically resistant epoxy resin.
The Burkert media-isolation valve 0330 is equipped with a manual switch for commissioning and testing. For energy-saving requirements, all coils are available in energy-saving or pulse-type configurations. The switch status can be displayed via position feedback in binary or NAMUR signals.
This valve is compatible with DIN EN 17301-803 Type A cable plugs and has a safety protection rating of IP65/67. It features a stainless steel or plastic body and is NEMA 4X rated.
The Burkert direct-acting two-way or two-position three-way rotary armature solenoid valve (Type 0330) is a media-isolated solenoid valve with a large DN 5 diameter.
It is maintenance-free, features a rotary armature technology, and an anti-vibration coil suitable for corrosive alkalis and acids. The solenoid coil is encapsulated in chemically resistant epoxy resin. All DC types feature "kick and drop" electronics to reduce power consumption.
An optional electrical feedback function reliably detects the switch position. This valve is compatible with DIN EN 17301-803 Type A cable plugs and has an IP65 safety protection rating.
Direct-acting two-position two-way or two-position three-way Burkert solenoid valves: Burkert solenoid valve type 0131 (direct-acting media isolation solenoid valve, large diameter DN 25, shockproof coil DC type, energy saving, electrical position feedback for improved safety, robust manual switch, easy to use); servo-assisted.
two-position two-way Burkert diaphragm valve type 5282 (servo-assisted diaphragm valve, large rated width DN65, Burkert solenoid valve agent isolation diaphragm, suitable for corrosive and contaminated media, opening and closing times can be set separately, explosion-proof protection type (category 2), easy manual switch operation; Burkert isolation solenoid.
valve, Burkert media isolation solenoid valve, also called anti-corrosion solenoid valve, mainly has an internal servo diaphragm lining.
Plain language sourcing guide for Burkert Solenoid Valve
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert Solenoid Valve
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert Solenoid Valve verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
