Burkert 8032 Flow Meter (models 436475 and 423985) - and Selling Fast
LEHIY item code: LH-0035
Quick buying check
This page helps you check Burkert 8032 Flow Meter (models 436475 and 423985) - and Selling Fast before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

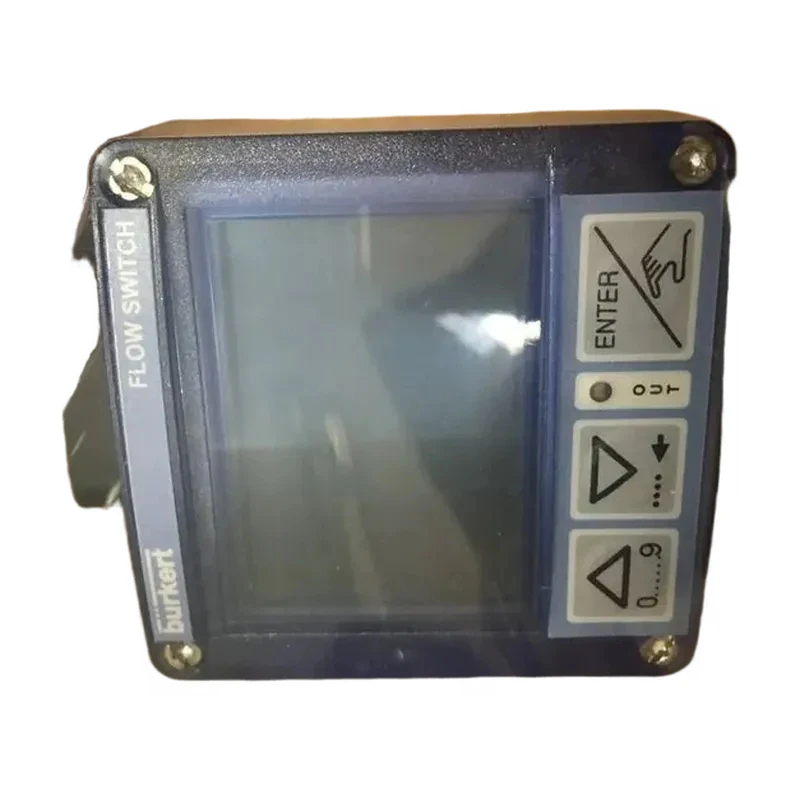

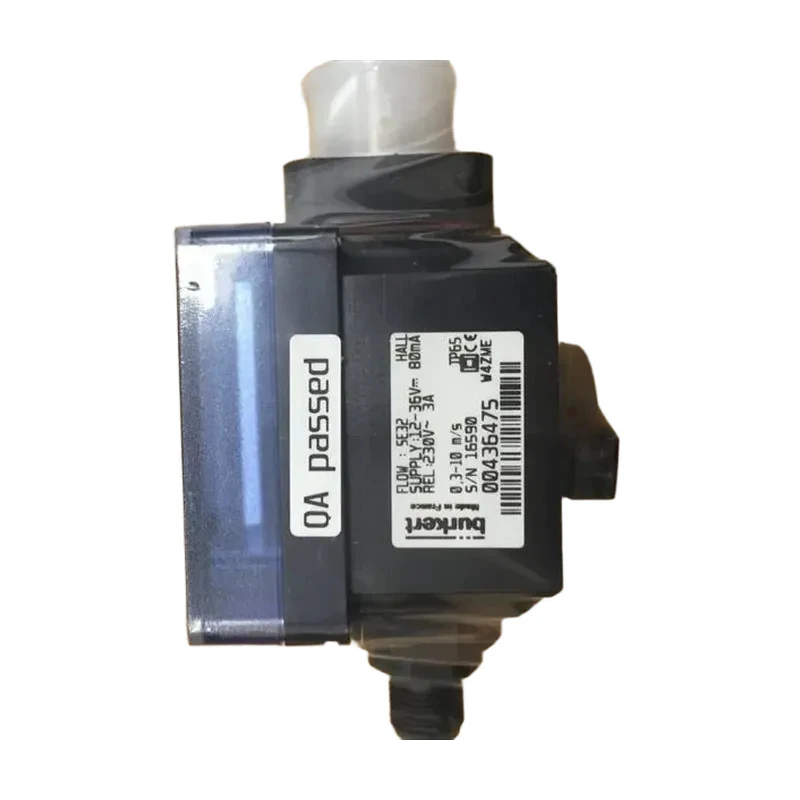

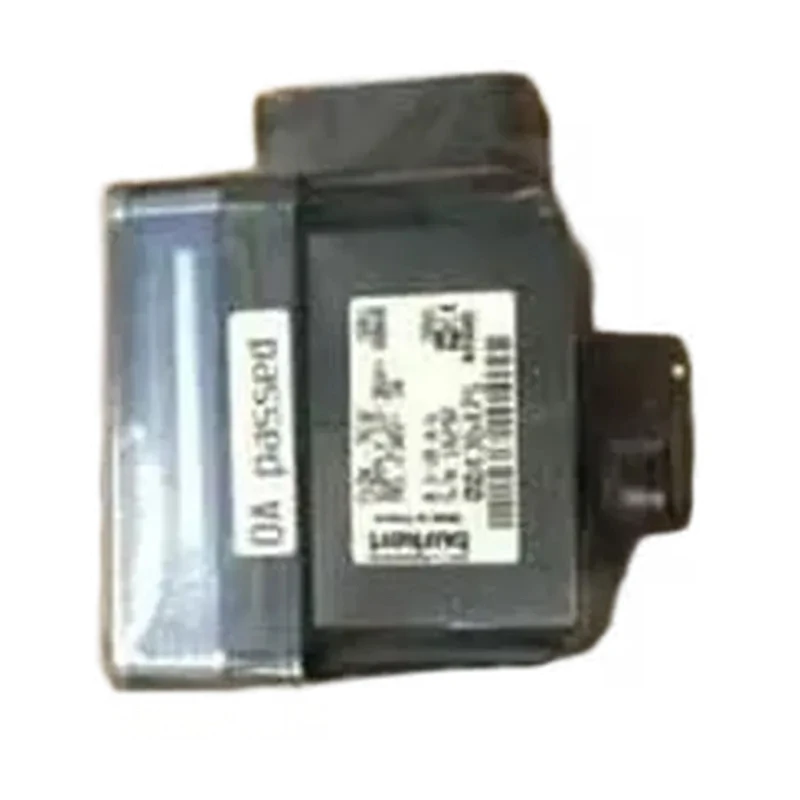

The Burkert 8032 flow meter (model 436475, model 423985) is a popular, in-stock product. Type 8032 - Flow measurement device with impeller/flow transmitter. Description: Flow measurement device with display /- transmitter /- threshold detector. Suitable for measuring pure, neutral, or corrosive liquids.
Valves can be directly triggered via the switch output, allowing for a simple 2-point control loop within a monitoring system. It can be operated directly via three switches on the display.
The compact version of the Burkert 8032 flow meter (transmitter SE32 + sensor accessory S030) can be configured without a switch output device (transistor or relay) or a current output between 4...20mA. The separate version (transmitter SE32) features a customizable transistor output.
The compact version of the Burkert transmitter can be installed onto the INLINE Burkert sensor accessory via a snap-fit without opening the pipeline.
Achieve measurement value display, monitoring, transmission, and 2-point control on a single device; freely configurable switching points (transistor or relay); automatic calibration process via teaching; output value: 4…20 mA.
Burkert Flow Meter 8032 Flow-Threshold Detector Technical Specifications: Measurement range from 1 l/min; Flow velocity 0.3 to 10 m/s; Switching accuracy ±1% oFS; Repeatability 0.4% oR; Measurement error [%] ≤ ±(0.5% oFS +2.5% oR) for water +20 °C and oFS = 10.
m/s; Relative humidity ≤ 80%, non-condensed; Medium temperature: see pressure-temperature chart; PVC/PP connector: 0 to +50 / +80 °C; PVDF, brass, stainless steel connector: 0 to +100 °C; Ambient temperature: 0 to +60 °C; Storage temperature: 0 to +60 °C; Maximum medium pressure: PN 10 (plastic,.
see pressure-temperature chart); PN 16 (metal).
Wetted Components S030 Type In-line Connector Plastic Connector PVC, PP, PVDF; Metal Connector Brass, Stainless Steel 1.4404/316L; Turbine PVDF; Shaft and Bearing Ceramic O-ring FPM, EPDM available upon request; Other Materials Electronic Component Housing PC; Front Panel Sheet Polyester.
See page 227 "Selecting Connector Diameter" for bore diameter selection.
Operating Power 12 to 30 V DC, reverse polarity protection. Transistor Output PNP or NPN, open collector contact. Rated 5 to 30 V DC, 700 mA. Relay Output 2 normally open contacts, passive contact. Rated 3 A/250 V AC or 3 A/30 V DC, adjustable.
External Setpoint Input 4 - 20 mA. Fieldbus Interface ASi Interface.
Power Consumption Maximum 80mA without load, with short circuit protection. Recommended Power Cable Maximum Length 100 meters, shielded, 0.14-0.5mm². Electrical Connection Cable Socket Type 2508 DIN 43650. A 5-pin multi-pin connector for cable socket, M12 protection rating with cable socket IP
- Assembly bayonet connection for arbitrary installation position, ensuring clear display. 8032 Burkert flow meter (436475 423985) in stock. 8032 Burkert flow meter and Burkert SE32 electronic module order list: 436474 434871 436473 436475 440500 440501 444699. 8032 Burkert flow meter accessory order list: 5-pin M12 socket connector with plastic threaded locking ring (917 116);
- 5-pin M12 socket connector with molded cable (2 meters, shielded) (438 680);
- 4-pin M12 socket connector with plastic threaded locking ring (448 856);
- 4-pin M12 socket connector with molded cable (2 meters, shielded)
- . 857 8-pin M12 socket connector with plastic threaded locking ring;
- 444 799 8-pin M12 socket connector with molded cable (2 meters);
- 444 800 2-pin M12 socket connector for flat ribbon cable (for ASi interface only);
- 440 653 8032 Burkert flow meter;
- Burkert S030 online connector ordering list;
- Burkert plastic connectors with adhesive/welded sleeve lubrication connection standard;
- PVC connectors with adhesive sleeve lubrication connection;
- PP, PVDF connectors with welded sleeve lubrication connection;
- Burkert PVC connector ordering numbers 423938 423939 423940 423941 423942 423943;
- Burkert PP connector ordering numbers 423956 423957 423958 423959 423960 423961 PVDF connector order number 423968 423969 423970 423971 423972 423973 Brass and stainless steel Burkert connectors, G internal thread interface inner hole [mm] Brass connector order number Stainless steel connector order number 15 G 1/2 85 16.0 122 423 980 424 004 20 G 3/4 95 17.0 119 423 981 424 005 25 G 1 105 23.5 120 423 982 424 006 32 G 1 1/4 120 23.5 123 423 983 424 007 40 G 1 1/2 130 23.5 127 423 984 424 008 50 G 2 150 27.5 134 423 985 424 009 Burkert Stainless Steel Fitting Order Number Inner Hole [mm] L [mm] ΦD [mm] H [mm] Stainless Steel Fitting, ISO 4200 Welded Joint 15 84 21.3 122 424 028 20 94 26.9 119 424 029 25 104 33.7 120 424 030 32 119 42.4 123 424 031 40 129 48.3 127 424 032 50 149 60.3 134 424 033 Burkert Stainless Steel Fitting Order Number Inner Hole [mm] L [mm] ΦD [mm] H [mm] Stainless Steel Fitting, ISO 2852 Triple Clamp Interface 15 130 34.0 122 424 034 20 150 50.5 119 424 035 25 160 50.5 120 424 036 32 180 50.5 123 424 037 40 200 64.0 127 424 038 50 230 77.5 134 424 039 Burkert Stainless Steel Fitting Order Number Inner Hole [mm] I [mm] J [mm] Flange Hole K [mm] M [mm] N [mm] L [mm] H [mm] Stainless Steel Fitting, DIN 2501 Flange Interface 15 25 4 x 14 65 95 45 130 122 424 040 20 25 4 x 14 75 105 58 150 119 424 041 25 25 4 x 14 85 115 68 160 120 424 042 32 30 4 x 18 100 140 78 180 123 424 043 40 30 4 x 18 110 150 88 200 127 424 044 50 40 4 x 18 125 165 102 230 134 424 045
Plain language sourcing guide for Burkert 8032 Flow Meter (models 436475 and 423985) - and Selling Fast
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
