Burkert control heads/controllers, models 8681, 8691, and 8695.
LEHIY item code: LH-0030
Quick buying check
This page helps you check Burkert control heads/controllers, models 8681, 8691, and 8695. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

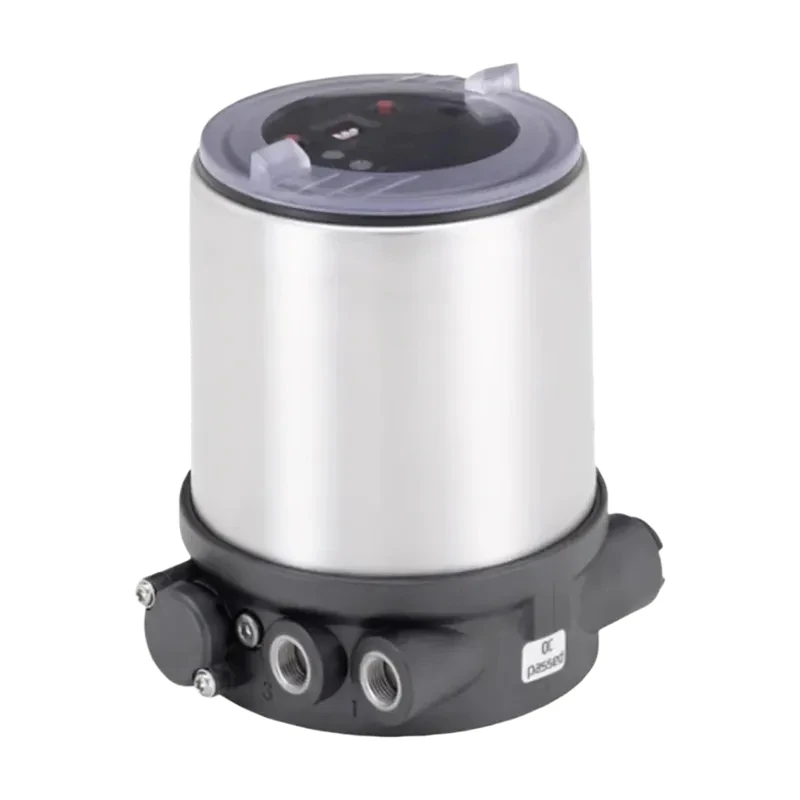

Burkert Control Heads | Controllers Models 8681, 8691, and 8695. The Burkert 8681 control head is optimized for decentralized automation of Burkert hygienic process valves. Due to its versatility, it can be used with all commercially available disc valves, ball valves, single-seat valves, and double-seat valves.
In the decentralized automation concept, the control head is responsible for overall pneumatic control, feedback, diagnostics, and bus communication.
With a cleanable housing and a field-proven IP protection rating, constructed from chemically resistant materials, the Burkert 8681 control head/controller can be used in hygienic process equipment in the beverage, food, and pharmaceutical industries.
Up to three pneumatic drive chambers can be controlled independently, depending on the Burkert valve process.
Burkert 8681 Control Head Features: ■ Universal actuator adapter for sanitary process valves ■ Controls single-acting and double-acting actuators ■ Automatic adjustment of end-point position detection via teach-in function ■ High dynamic control system with no internal control air consumption in regulation mode ■ Pilot valve.
with manual control, throttling function, and integrated check valve ■ Color status indicator ■ Integrated diagnostic functions for valve monitoring ■ AS-Interface or DeviceNet fieldbus communication Burkert 8681 Control Head Customer Advantages: ■ Universal actuator adapter for all sanitary process valves on the market, greatly improving flexibility ■ Easy.
commissioning via automatic teach-in function ■ Valve monitoring and diagnostics ensure reliability and predictable maintenance ■ Prominent status indicators enable safe process monitoring and easy valve diagnostics Burkert 8691 Control Head The Burkert 8691 control head is designed for decentralized automation of Burkert pneumatic process valves to meet sanitary.
process conditions.
Burkert valve position is detected by a non-contact analog position sensor, which automatically detects and stores the valve end-point position during commissioning via the teach-in function. Integrated Burkert pilot valves are used to control single-acting or double-acting actuators.
The housing is easy to clean and has a field-proven IP protection rating, and is made of chemically resistant materials, making it suitable for hygienic process equipment in the beverage, food, and pharmaceutical industries.
Burkert 8691 Control Head Features: ■ Sanitary stainless steel design compliant with EHEDG Directives ■ Teaching function for automatic detection of valve end position ■ Non-contact and wear-free inductive position sensor ■ High-performance color LED status indicators ■ Integrated pilot valve with manual operation components ■.
AS-Interface, DeviceNet, IO-Link, or büS (Bürkert System Bus) Burkert 8691 Control Head Customer Benefits: ■ Easy and safe commissioning via teaching function ■ Valve monitoring and diagnostics ensure reliability and predictable maintenance ■ Easy process monitoring and fault detection via visible high-performance color LEDs Burkert.
Control Heads | Controllers 8681, 8691, 8695 8695 Burkert Control Head The 8695 Burkert Control Head is designed for decentralized automation of pneumatic process valves, meeting the requirements of sanitary process conditions.
The Burkert valve position is detected by a non-contact analog position sensor, which automatically detects and stores the valve end position during commissioning via the teaching function. Integrated Burkert pilot valves are used to control single-acting or double-acting actuators.
The housing features excellent cleanability and a field-proven IP protection rating, and is made of chemically resistant materials, making it suitable for hygienic process equipment in the beverage, food, and pharmaceutical industries.
Features of the Burkert 8695 control head: ■ Hygienic stainless steel design compliant with EHEDG Directives ■ Teaching function for automatic detection of Burkert valve end position ■ Non-contact and wear-free inductive position sensor ■ AS-Interface, DeviceNet fieldbus communication Customer benefits of the Burkert 8695 control head:.
■ Easy and safe commissioning via automatic teaching function ■ Simple and reliable actuator adapter components ■ Minimal space required in system piping Burkert Pneumatic Controllers/8690 Burkert Feedback Sensors Burkert Pneumatic Controllers/8697 Burkert Feedback Sensors The Burkert 8690 or 8697 Burkert pneumatic controllers combine electric position feedback and.
pneumatic actuation, suitable for single (8697) and double-acting actuators, and are available in intrinsically safe versions compliant with ATEX.
Mechanical or inductive limit switches can detect valve position. Features of the Burkert 8697 feedback sensor: ■ Compact design ■ Visible position display ■ Integrated pilot valve with manual operation component ■ Mechanical or inductive proximity switch for end-point position detection ■ Optional intrinsically safe version compliant with ATEX/IECEx.
Customer benefits: ■ Simple design ■ Simple and reliable actuator adapter components ■ Occupies very little space in system piping, increasing system design flexibility.
Plain language sourcing guide for Burkert control heads/controllers, models 8681, 8691, and 8695.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
