Burkert 8605 controller 178354 upgrade model 316530
LEHIY item code: LH-0026
Quick buying check
This page helps you check Burkert 8605 controller 178354 upgrade model 316530 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

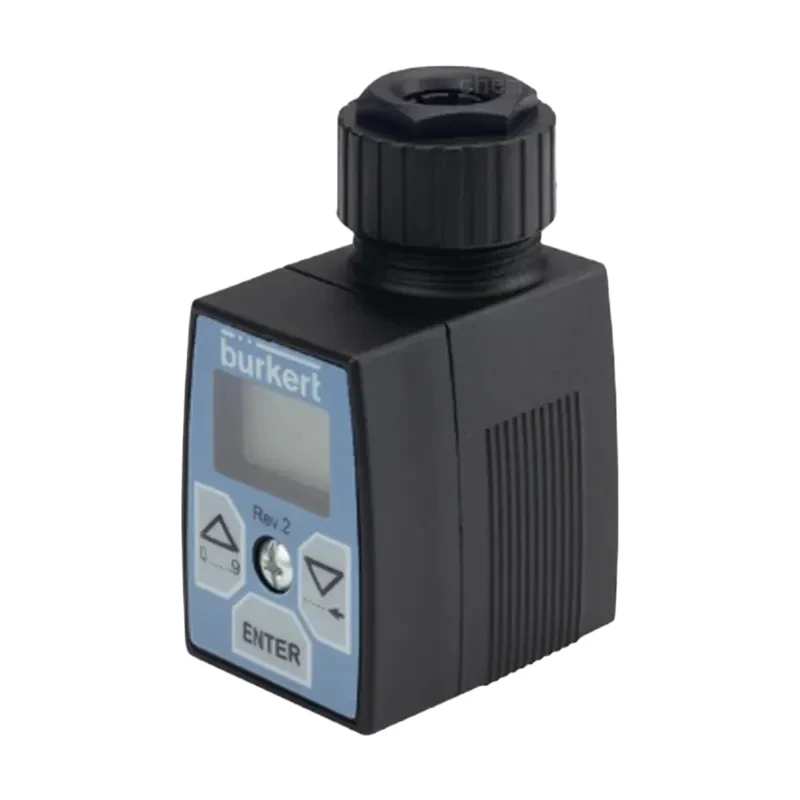

The Burkert 8605 controller, model 178354 (upgraded to model 316530), is a typical digital control electronics component used to match Burkert proportional valves. It provides a 4-20mA signal to regulate the valve's opening and flow rate. Type 8605 - PWM control electronics for Burkert solenoid proportional valves.
The Burkert 8605 controller type description: The 8605 digital control electronics component is used to control proportional solenoid valves with a power range of 40–2,000 mA.
The electronics component converts external standard signals into pulse width modulation (PWM) signals to continuously regulate the proportional valve opening and fluid output variables (eg, flow rate).
Internal current control, using the duty cycle of the PWM signal as the control variable, ensures that each value of the input signal is uniquely associated with a specific value of the effective coil current, regardless of the coil's temperature state.
The electronics component can be easily adjusted via the display and control buttons to suit specific proportional valves and application conditions. To integrate the control valve and proportional valve into a higher-level control system, a CAN-based controller model (called büS) must be used.
The proportional valve's parameters can be set and configured quickly and easily using the Bürkert Communicator software. Furthermore, büS control electronics allow for the integration of shut-off valves into the büS/CAN system.
Through integrated time control, the shut-off valve can be opened or closed for a specific period.
This can be used in applications such as dosage control during filling processes. The 8605 model can be equipped with an optional I/O board. electronics that convert analog input signals into PWM output signals. It offers an adjustable PWM frequency and supports digital communication (büS).
Optional integrated time control and digital/analog input are available.
The Burkert 8605 controller is compatible with the following products: Type 2873 Direct-acting two-way standard proportional solenoid valve; Type 6013 Direct-acting two-position two-way piston solenoid valve; Burkert 8605 controller 178354 Upgrade model 316530 Proportional solenoid valve controller order number 178354 Valve electronics | 178358 Valve.
electronics | Cable feed-through | 12.00 V - 24.00 V | 200.00 mA - 1.000.00 mA | -10.00 °C - 60.00 °C | 80.00 Hz - 6.000.00 Hz | IP65 German Burkert 8605 proportional valve controller, order number 316521.
Valve electronics | Cable feed-through | 12.00 V - 24.00 V | 200.00 mA - 1.000.00 mA | -10.00 °C - 60.00 °C | 80.00 Hz - 6.000.00 Hz German Burkert 8605 proportional valve controller, order number 316522 Valve.
electronics | Plug - M12 | 12.00 V - 24.00 V | 200.00 mA - 1.000.00 mA | -10.00 °C - 60.00 °C | 80.00 Hz - 6.000.00 Hz German Burkert 8605 proportional valve controller, order number 316523 Valve electronics.
| Cable feed-through | 12.00 V - 24.00 V | 500.00 mA - 2.000.00 mA | -10.00 °C - 60.00 °C | 80.00 Hz - 6.000.00 Hz German Burkert 8605 proportional valve controller, order number 316525 Valve electronics |.
Plug - M12 | 12.00 V - 24.00 V | 500.00 mA - 2.000.00 mA | -10.00 °C - 60.00 °C | 80.00 Hz - 6.000.00 Hz German Burkert 8605 proportional valve controller, order number 316526 Valve electronics | Plug.
- M12 | 12.00 V - 24.00 V | 500.00 mA - 2.000.00 mA | -10.00 °C - 60.00 °C | 80.00 Hz - 6.000.00 Hz German Burkert 8605 proportional valve controller, order number 316528 Valve electronics | Plug -.
M12 | 12.00 V - 24.00 V | 200.00 mA - 1.000.00 mA | -10.00 °C - 60.00 °C | 80.00 Hz - 6.000.00 Hz Burkert 8605 proportional valve controller, order number 316529; Burkert 8605 proportional valve controller, order number.
316530.
Plain language sourcing guide for Burkert 8605 controller 178354 upgrade model 316530
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert 8605 controller 178354 upgrade model 316530
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert 8605 controller 178354 upgrade model 316530 verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
