Burkert diaphragm valve, dual diaphragm type 677681 DN65 EA
LEHIY item code: LH-0020
Quick buying check
This page helps you check Burkert diaphragm valve, dual diaphragm type 677681 DN65 EA before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
FDA-certified Burkert diaphragm valve with dual diaphragm 677681 DN65 EA PTFE/EPDM locking pin. This Burkert diaphragm valve features a dual diaphragm (PTFE/EPDM) integrated diaphragm. Burkert dual and single diaphragms are highly regarded among imported brands, boasting a particularly high repurchase rate.
Manufacturer quality and after-sales guarantee are provided, along with a contracted discount from Burkert. Burkert dual diaphragm valves are suitable for industrial and sanitary applications. sanitary dual diaphragm pumps. Burkert sanitary diaphragm valves are available with PTFE/EPDM composite diaphragm gaskets from DN8 to DN100.
The main BURKERT dual diaphragm models are: 677673, 677674, 677675, 677676, 677678, 677679, 677680, 677681, 677682, and. 677683.
Technical specifications for BURKERT diaphragm valve dual diaphragm DN65 677681: BURKERT dual diaphragm material: The liquid-immersed end is made of FDA-compliant PTFE; the air end is made of FDA-compliant EPDM.
Operating temperature range: 14ºF to 180ºF (-10ºC to 82ºC). BURKERT diaphragm safety: Complies with FDA 21 CFR 177.1550 (PTFE) and FDA 21 CFR 177.2600 (EPDM) standards.
BURKERT diaphragm valve definition: BURKERT diaphragm valves consist of a flexible diaphragm or a combination of diaphragms housed within the valve body and cover.
The closing element is a compression device connected to the diaphragm. regulating valves, automatic mechanical servo devices, switches, and counters.
The advantages of diaphragm valves are that their operating mechanism is isolated from the media passage, ensuring the purity of the working medium and preventing the possibility of media in the pipeline impacting the working parts of the operating mechanism.
BURKERT diaphragm valves are used in industries such as biopharmaceuticals, brewing, dairy, beverages, steam production, food processing, sterilization equipment, water supply equipment, and water distribution equipment in contact with drinking water, requiring a large number of BURKERT diaphragm valves for various controls.
As a core component, the valve core's hygienic quality is strictly monitored by health supervision departments. FDA-certified BURKERT diaphragm valve double diaphragm 677681 DN65 EA.
The sealing principle of the BURKERT diaphragm valve is that the downward movement of the operating mechanism presses down the diaphragm or diaphragm assembly to seal it with the weir-lined valve body or straight-through-lined valve body. sealing force can achieve a seal.
[2] The BURKERT diaphragm valve has only three main components: valve body, diaphragm and valve cover assembly.
The diaphragm separates the lower valve body cavity from the upper valve cover cavity, preventing the valve stem, valve stem nut, valve disc, pneumatic control mechanism, electric control mechanism, and other components located above the diaphragm from contacting the medium and causing no leakage.
This eliminates the need for a stuffing box sealing structure.
Burkert diaphragm valves are a special type of shut-off valve. Their opening and closing element is a diaphragm made of soft material that separates the valve body cavity from the valve cover cavity.
Due to limitations in valve body lining and diaphragm manufacturing processes, manufacturing larger valve body linings and larger diaphragms is difficult.
Therefore, Burkert diaphragm valves are not suitable for larger pipe diameters and are generally used in pipelines ≤DN200. Due to limitations in diaphragm material, diaphragm valves are suitable for low-pressure and low-temperature applications. Temperatures should generally not exceed 180℃.
Because of their excellent corrosion resistance, diaphragm valves are generally used in devices and pipelines handling corrosive media. The operating temperature and applicable media of BURKERT diaphragm valves are limited by the valve body lining material and diaphragm material.

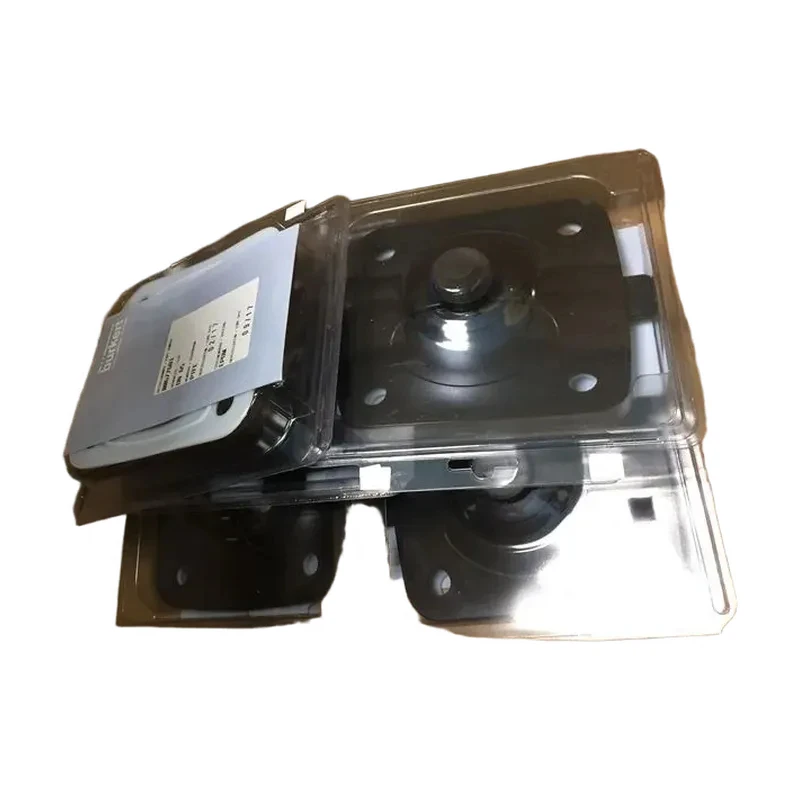

A picture of a BURKERT diaphragm valve with a double diaphragm (DN65 677681) is available.
German Burkert diaphragm valves using Burkert double and single diaphragms have a good reputation among imported brands and a high repurchase rate. We offer manufacturer quality and after-sales guarantee, and special discounted prices from Burkert factory direct. Please contact us for inquiries!
Plain language sourcing guide for Burkert diaphragm valve, dual diaphragm type 677681 DN65 EA
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert diaphragm valve, dual diaphragm type 677681 DN65 EA
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert diaphragm valve, dual diaphragm type 677681 DN65 EA verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
