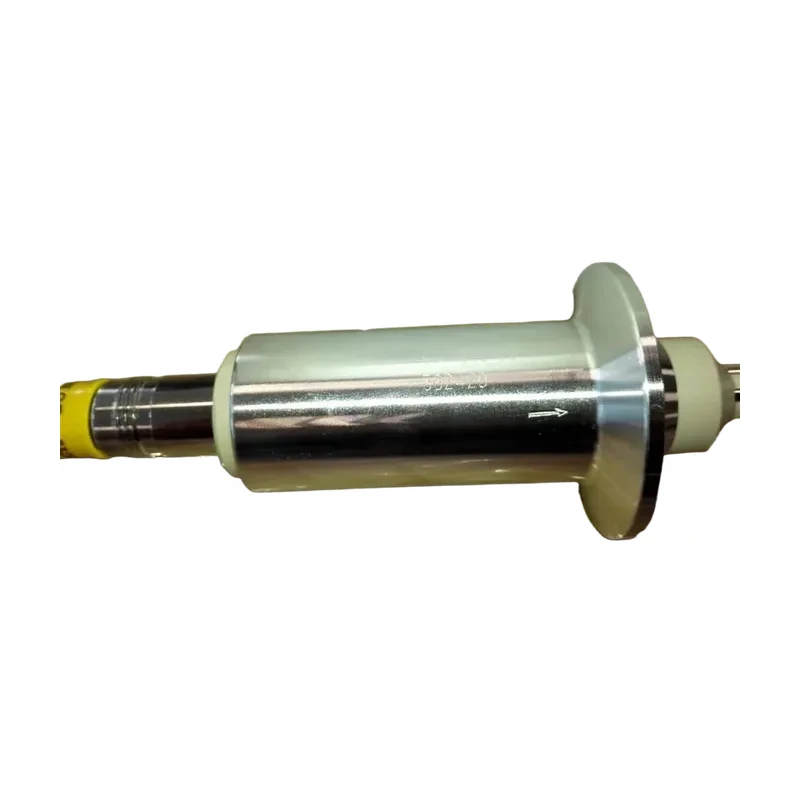

Burkert Sanitary Conductivity Probe Model 8221 (93161500)
LEHIY item code: LH-0012
Quick buying check
This page helps you check Burkert Sanitary Conductivity Probe Model 8221 (93161500) before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Burkert Hygienic Conductivity Probe 8221 (Model 93161500) - German Burkert conductivity meter, model 8221 hygienic conductivity sensor, 8221 conductivity electrode K=0.01, product number 93161500.
Description of the Burkert 8221 hygienic conductivity probe: The Burkert 8221 hygienic conductivity probe can be widely used for conductivity measurement of various pure or concentrated liquids.
Due to its hygienic and robust construction, this Burkert conductivity probe is suitable for the food and pharmaceutical industries, as well as the biotechnology and chemical industries.
The Burkert conductivity probe is based on two different technologies: the Burkert probe using a dual-electrode structure is suitable for measuring pure liquids, especially pure water. Contamination can affect the measurement. The Burkert probe using a four-electrode structure prevents polarization effects and is therefore resistant to contamination.
This ensures excellent linearity throughout the measurement range. All versions integrate a Burkert temperature sensor (Pt1000). The Burkert probe must be connected to the 8619 multiCELL transmitter/controller. and salts it contains. When their concentrations are low, conductivity increases with increasing concentration.
Therefore, this indicator is often used to estimate the total concentration of ions or the salt content in water. Conductivity (G) is the reciprocal of resistance (R).
Therefore, when two electrodes (usually platinum or platinum black electrodes) are inserted into a solution, the resistance R between the two electrodes can be measured.
According to Ohm's law, at a constant temperature, this resistance value is directly proportional to the electrode spacing L (cm) and inversely proportional to the cross-sectional area A (cm²) of the electrodes, ie, R = ρ × (L/A); where ρ is resistivity, the resistance of a conductor.
1cm long with a cross-sectional area of 1cm², and its magnitude depends on the nature of the substance.
Two technologies are available for BURKERT conductivity probes: • A 2-electrode probe is suitable for liquid measurements, especially (ultra)pure water. Contamination affects the measurement. • A 4-electrode probe eliminates polarization and is insensitive to contamination. This clever design ensures good linearity over a wide conductivity range.
An integrated temperature sensor (Pt1000) is a standard feature on all versions and can be used for temperature compensation. The probe must be connected to a multiCELL transmitter/controller type 8619. The Burkert sanitary conductivity probe model 8221 (93161500) is available from LEHIY Industrial.
Applications include biopharmaceuticals, food and beverage, automotive, steel mills, power plants, petrochemicals, machinery, fluid dynamics, automation, clean energy, and instrumentation. We can purchase industrial products manufactured in Germany, Italy, the USA, and other European and American countries at competitive prices and deliver them to our customers.
As a supplier of high-quality imported spare parts from Europe and America in Shanghai, LEHIY Industrial offers products from leading brands including: Burkert, ATOS, HYDAC, E+H, REXROTH, AVENTICS, SAMSON, Balluff, P+F, TURCK, IFM, EBRO, Norgren, ASCO, Parker, Fairchild, MOOG, VICKERS, and ELTRA. Inquiries are welcome.
LEHIY Industrial currently has a long-term cooperation agreement with Burkert. Burkert's advantageous product categories include: Burkert solenoid valves, Burkert control valves, Burkert pneumatic valves, Burkert electric valves, and Burkert process control valves; Burkert flow meters, Burkert level gauges, Burkert sensors, Burkert transmitters, and Burkert level meters.
The Burkert 8221 sanitary conductivity probe 93161500 has the following technical attributes: Type 8221; Port connection; Clamp 50.5 x 38.6 x 1.5 according to ISO 2852; Material: stainless steel; Seal material: EPDM; Sensor cellular constant: K=0.01; Measuring range: freely programmable; Function: sensor measurement; Design: fitting.
for analytic electrode and temperature sensor; Voltage without;.
Plain language sourcing guide for Burkert Sanitary Conductivity Probe Model 8221 (93161500)
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Burkert | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
Burkert Sanitary Conductivity Probe Model 8221 (93161500)
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
Burkert Sanitary Conductivity Probe Model 8221 (93161500) verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
