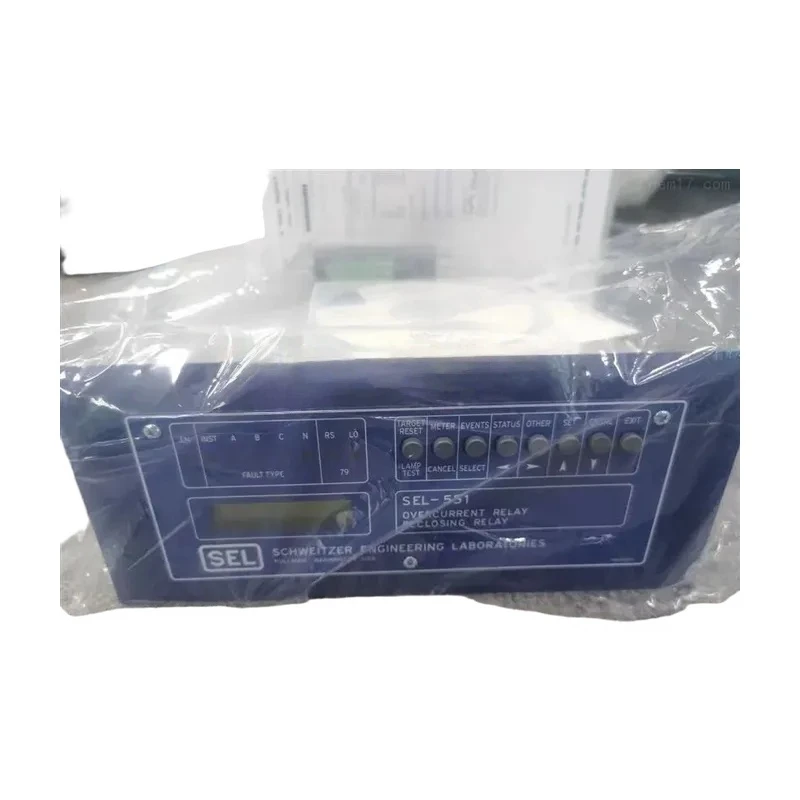

American SEL-551 overcurrent relay
LEHIY item code: LH-SEL-0028
Quick buying check
This page helps you check American SEL-551 overcurrent relay before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We offer remote or on-site installation and commissioning services for the American SEL-551 overcurrent relay! We source directly from the American SEL manufacturer, ensuring authenticity. Full model number: 0551006X532X.
The American SEL-551 overcurrent/reclosing relay replaces many relays, control switches, and wiring required for traditional distribution substation protection and control panels. This relay can also replace line reclosing control packages at a fraction of the cost.
Key features of the American SEL-551 0551006X532X include: Asset Protection – Monitors and protects distribution feeders, distribution buses, transformers, capacitors, or circuit breakers.
Versatility of Current Transformer (CT) Connections – Connects to individual neutral point current inputs to accommodate core-balanced CTs, individual neutral point CTs, tertiary winding CTs, or CT-grounded residual circuits. Reclosing Control – Coordinates with downstream reclosers using sequential coordination logic, programmable for up to four reclosing attempts.
Field-proven robustness—programmable SELogic control equation inputs and outputs to meet application needs in a variety of environments. A wide operating temperature range (–40°C to +85°C) allows installation in control room or outdoor enclosures.
We offer a superior supply of the American SEL-551 overcurrent relay, sourced directly from the American SEL manufacturer, guaranteeing authenticity.
The SEL-551 overcurrent relay provides comprehensive overcurrent protection: the SEL-551 offers phase, negative sequence, zero sequence ground, and neutral overcurrent protection in a compact package, including a complete set of instantaneous, definite-time, and timed overcurrent elements.
The acSELerator QuickSet SEL-5030 software: QuickSet allows you to develop relay settings, program SELogic control equations, and analyze post-fault event reports offline, helping to accelerate relay application protection and control logic: SELogic control equations with SELogic variables and timers allow for both traditional and advanced protection schemes.
Programmable local control elements allow for front panel button control. Programmable text display points provide enhanced local operator information. Monitoring and Reporting: The SEL-551 features instantaneous, peak, and meter demanding capabilities.
The latest 20 15-cycle oscilloscope data event reports and the latest 512 Sequential Event Recorder (SER) records are stored in non-volatile memory. Communication: Front panel EIA-232 serial port, rear panel EIA-232/EIA-485 serial port, and ASCII, binary, and Modbus RTU protocols enhance integration capabilities.
For product details regarding the SEL-551 relay 0551006X532X, please contact our sales department.
Plain language sourcing guide for American SEL-551 overcurrent relay
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | SEL | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
American SEL-551 overcurrent relay
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
American SEL-551 overcurrent relay verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
