American SEL-751A Microcomputer Protection Device Relay
LEHIY item code: LH-SEL-0003
Quick buying check
This page helps you check American SEL-751A Microcomputer Protection Device Relay before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The SEL-751A Feeder Protection Relay (USA) is available in the following models: 751A01G1G1G73860600, 751A01G1G3G71860300, and 751A01G3G1G71810300. We offer remote or on-site installation and commissioning services for SEL products. We source directly from the US SEL factory, guaranteeing authenticity. We offer group shipping for competitive pricing.
We recommend choosing the SEL-751 feeder protection relay instead of the SEL-751A. The SEL-751 supports additional protection and communication options such as fault location, high-impedance fault detection, EtherNet/IP, and integrated network servers.
SEL-751A microprocessor-based protection relay from the USA features the following key characteristics: Feeder Protection – Protects radial and loop distribution circuits with comprehensive protection functions, including timeout overcurrent, automatic reclosing, overvoltage/undervoltage, and frequency protection.
Arc Flash Mitigation – Enhances personnel safety with optional arc flash detection. The SEL-751A provides a combination of optical and high-speed overcurrent detection for arc flash events. This combination offers an ideal solution for both speed and safety.
Automation and Control – Apply the SEL-751A to feeders and provide protection, automation, and control functions in a single package. SELogic control equations support many automation applications without the need for additional automation controllers. Configurable front panel buttons can replace traditional panel controls and simplify overall application and wiring.
Our company offers a superior supply of the SEL-751A microprocessor-based protection relay from the USA, directly from the manufacturer, ensuring genuine SEL-751A microprocessor-based protection relays. Other features include: Event Analysis – Perform more effective post-event analysis using the detailed event logs provided in the SEL-751A.
Combine oscilloscope plots and digital information to pinpoint the root cause. Add a satellite synchronization time source, such as the SEL-2401 or SEL-2407 satellite synchronization clock, to facilitate alignment of event information from multiple devices.
Situational awareness—enhance situational awareness and asset utilization through IEEE C37.118 synchronization phasor measurements. Aggregate synchronization phasor information from across the system to understand system trends, make decisions based on state measurements rather than state estimates, and aid in post-event analysis.
Provides reliable protection in harsh environments—the SEL-751A operates under harsh conditions, with a temperature range of –40°C to +85°C (–40°F to +185°F), and is designed and tested beyond applicable standards, including vibration, electromagnetic compatibility, and adverse environmental conditions.
Furthermore, the SEL-751A is ATEX and Underwriters Laboratories (UL) Class I 2 certification for use in hazardous and potentially explosive environments.

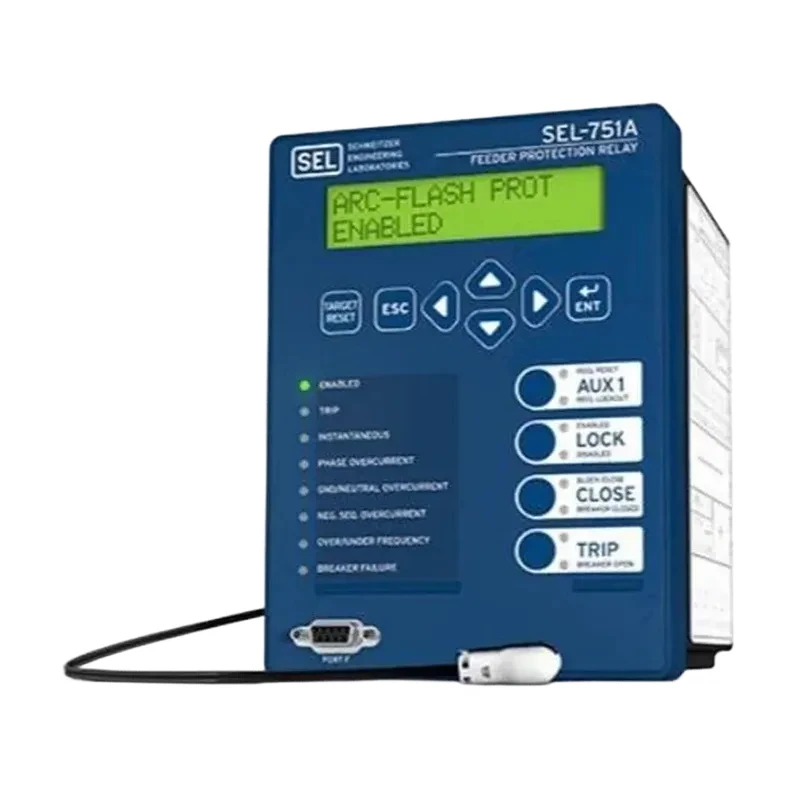

The following is a schematic diagram of the SEL-751A microprocessor-controlled protection relay from the USA: Front View: 1: A 2 × 16 character LCD provides navigation, relay control, data, and diagnostics via default messages or up to 32 customizable display messages.
2: Programmable front panel LEDs with user-configurable labels alert the operator to faulty phases and component operation. 3: Programmable operator buttons with user-configurable labels allow for front panel customization. Rear View: 1: Various communication protocols and media provide flexibility for communication with other devices and control systems.
2: Power options include 24–48 Vdc or 110–250 Vdc/110–240 Vac. 3: An optional fiber optic serial port provides quick and easy engineering access.
4: Card slots include locations for optional I/O, voltage input cards, or arc flash detection cards with sensors, helping to improve safety and prevent damage.
5: Phase current and optional phase voltage inputs are on a single card, freeing up space for additional SELect™ I/O card options. For more details on the SEL-751A microprocessor-controlled protection relay from the USA, please contact our sales department.
Plain language sourcing guide for American SEL-751A Microcomputer Protection Device Relay
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | SEL | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
