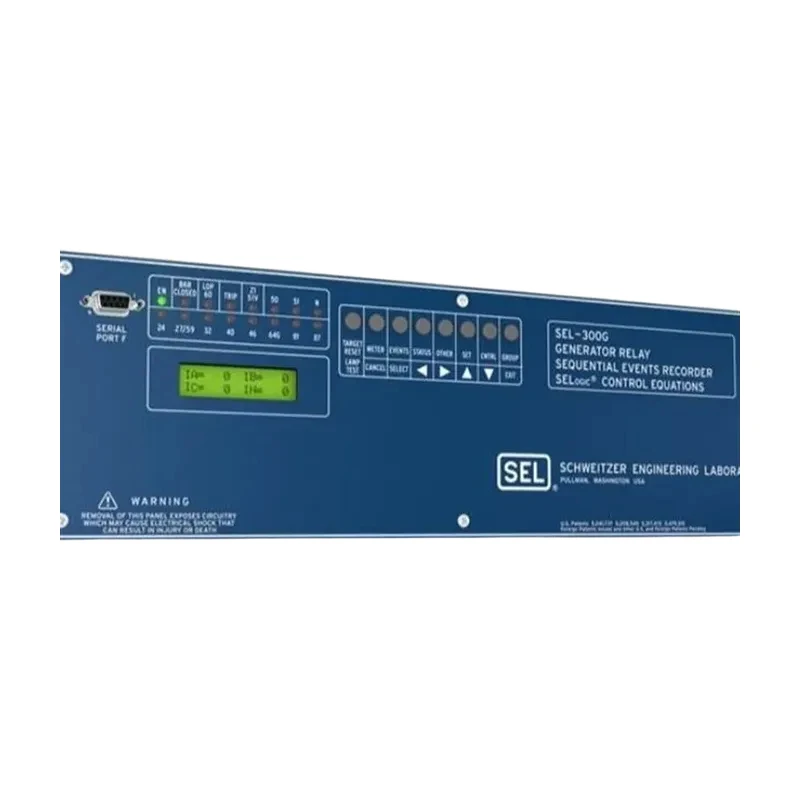

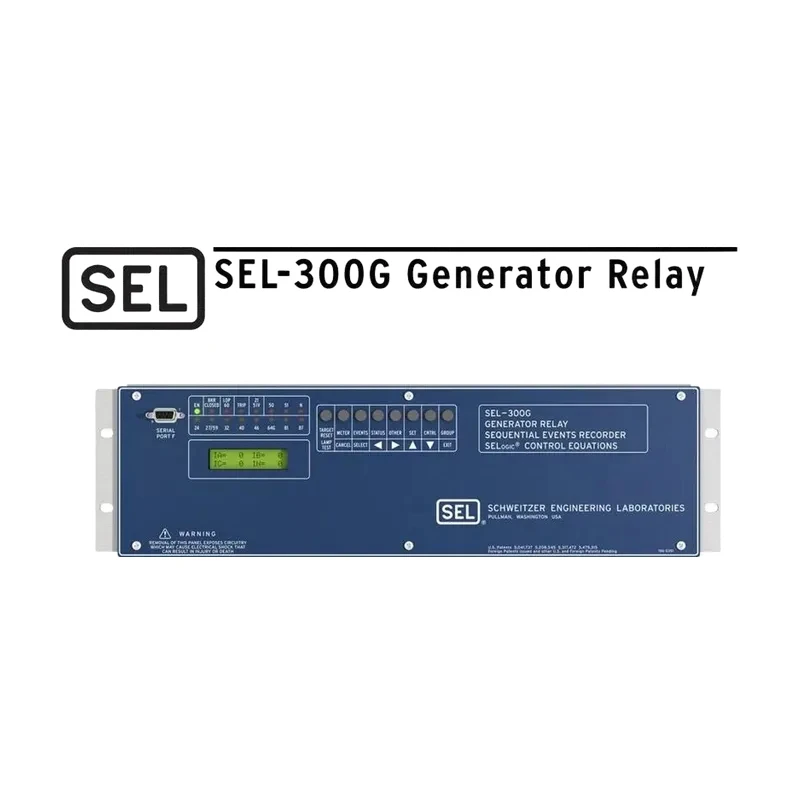

American SEL-300G generator relay protection device
LEHIY item code: LH-SEL-0005
Quick buying check
This page helps you check American SEL-300G generator relay protection device before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We offer remote or on-site installation and commissioning services for SEL (USA) generator relay protection devices. We source directly from the original SEL manufacturer in the USA, ensuring genuine products. Group shipping ensures competitive pricing.
The SEL-300G relay protection device provides proven primary and backup protection for utility and industrial generators according to IEEE turbine protection standards. Key features of the SEL-300G generator relay include: Complete generator protection – Connecting the SEL-300G generator relay to large generators provides complete primary and backup protection.
Adding a neutral voltage connection based on third harmonic voltage measurements provides 100% stator grounding protection. Connecting a neutral current input provides protection for machines with direct grounding or resistive grounding. Secure remote control and monitoring – Control, monitor, and alarm using Modbus and ASCII communication functions.
Control relay operation and initiate or stop automation sequences from remote or local control systems. Differential Current Protection – Utilizes a sensitive percentage-constrained current differential element and an unconstrained element, along with synchronization checks and volt/hertz elements, to protect generators and step-up transformers.
The SEL-300G includes phase shift and amplitude difference compensation for current differential applications, including generators and step-up transformers. Overexcitation Detection – Detects overexcitation using volt/hertz elements in generators and step-up transformers. Choose from multiple curves and definite-time elements for alarm and trip applications.
Our company is a leading supplier of SEL-300G generator relay protection devices from the USA, sourced directly from the manufacturer to ensure authenticity.
The SEL-300G relay protection device is summarized below: Comprehensive Generator Protection: Numerous current, voltage, frequency, and distance elements provide comprehensive protection for both large and small machines.
Stator Ground Fault Protection: Stator ground fault protection uses fundamental frequency overvoltage and third harmonic voltage differential elements to protect generators with high impedance grounding. Differential Current Protection: Optional current differential elements optimize protection for large while remaining economical for small machines.
Phase shift and amplitude difference compensation for current differential applications, including generator step-up transformers. curves and definite-time elements for alarm and trip applications. Sensitive directional power elements prevent reverse power, overload conditions, or low forward power.
RTD-based protection with optional thermal protection elements works with the SEL-2600A RTD module. Metering and reporting: Event reporting, Sequential Event Recorder (SER) reporting, and high-precision metering eliminate or reduce external metering requirements.
acSELerator QuickSet SEL-5030 software allows you to develop relay settings, program SELogic control equations, and analyze post-fault event reports offline, accelerating relay applications. Secure remote control and monitoring are provided using Modbus, ASCII, and SEL Fast SER functions for control, monitoring, and alarming.
For product details regarding the SEL-300G relay protection device, please contact our sales department.
Plain language sourcing guide for American SEL-300G generator relay protection device
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | SEL | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
American SEL-300G generator relay protection device
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
American SEL-300G generator relay protection device verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
