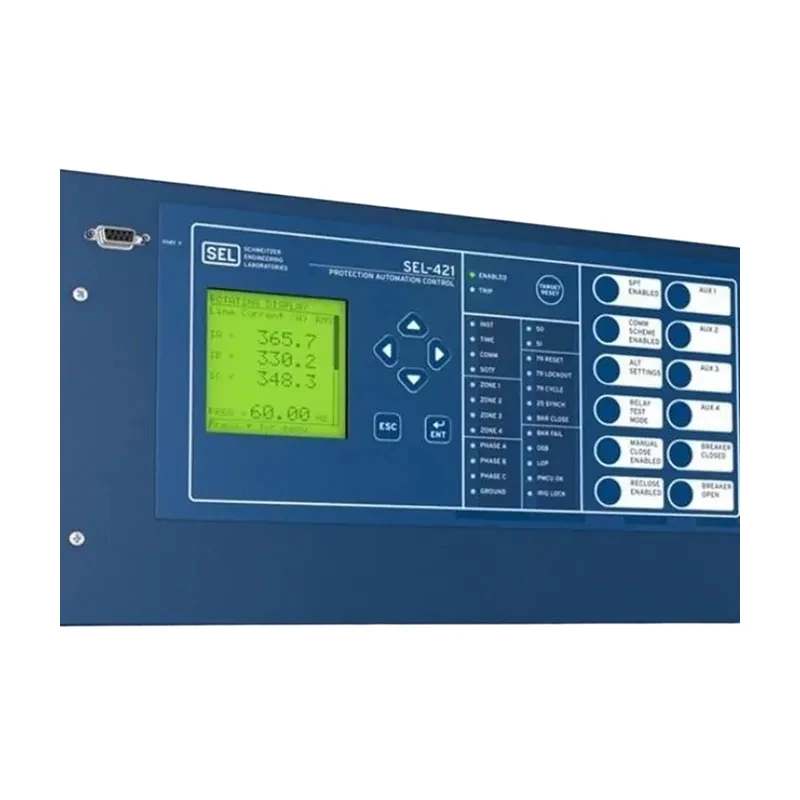

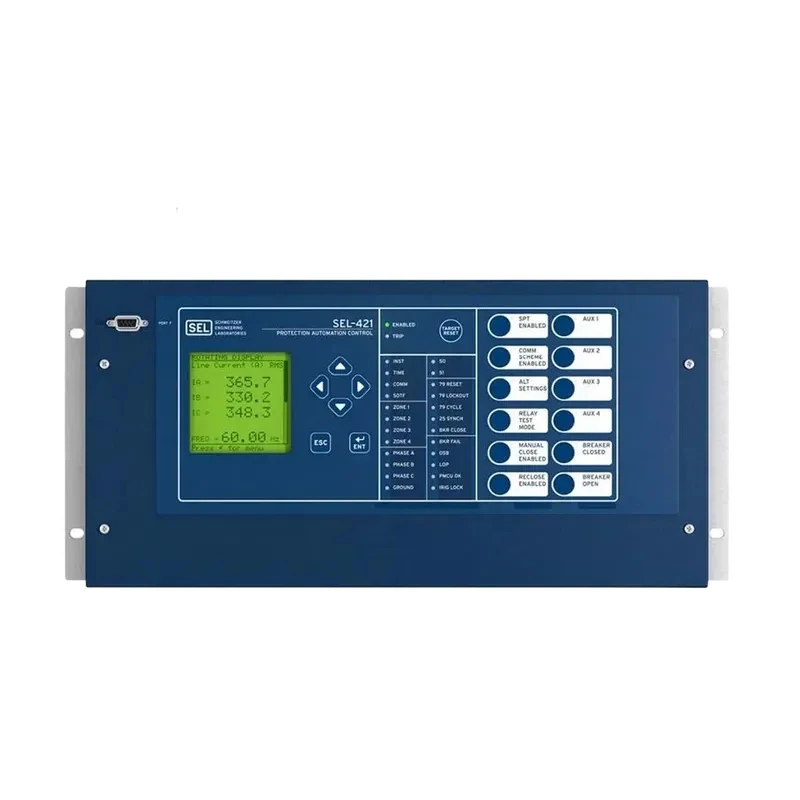

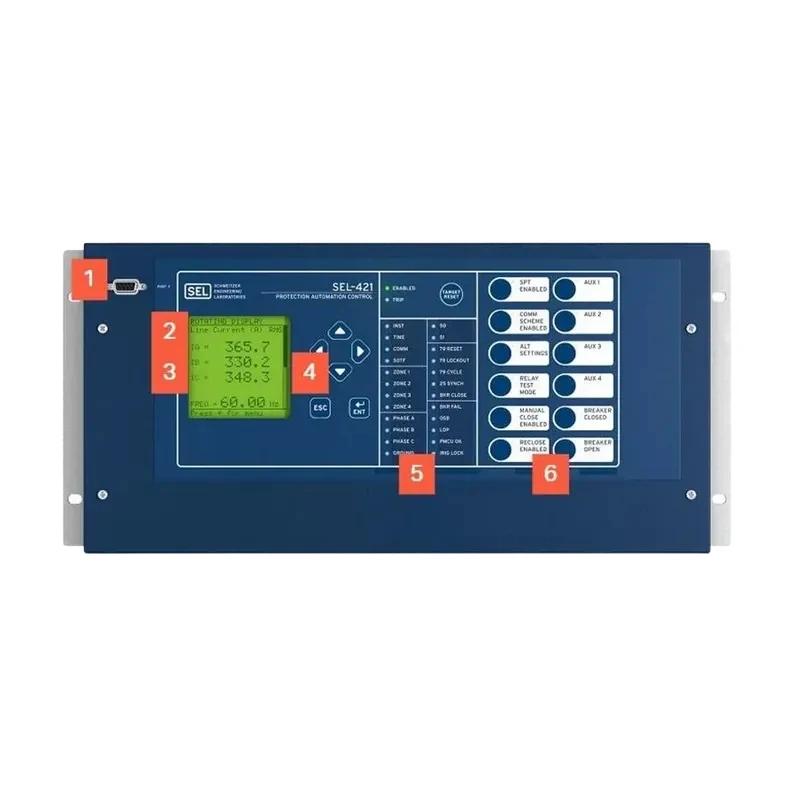

American SEL-421 Integrated Protection Device Automated Control System
LEHIY item code: LH-SEL-0023
Quick buying check
This page helps you check American SEL-421 Integrated Protection Device Automated Control System before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
SEL-421 Integrated Protection, Automation, and Control System, sourced directly from SEL USA, ensuring genuine SEL-421 products. We offer remote or on-site installation and commissioning services for SEL products. The SEL-421 enables high-speed distance and directional protection, as well as control of two circuit breaker bays.
It protects any transmission line using a combination of phase distance, ground distance, and five zones of directional overcurrent A graphical user interface system provides logic and application templates for typical line protection schemes.
Coupled capacitor voltage transformer (CCVT) transient over-limit logic enhances the safety of Zone 1 distance elements.
Ground directional element logic optimizes directional element performance and eliminates many directional settings. Optional additional logic prevents Zone 1 from exceeding the range on series-compensated lines. Optional incremental components provide sub-loop operation for applications requiring high-speed fault clearing on critical elements. lines.
Transform substation modernization with optional Time Domain Link (TiDL) technology or using sampled value (SV) based technology according to IEC 61850-9-2. Subcycle Distance Protection—Protects critical transmission lines using high-speed quadrilateral, Moohm distance, and directional elements.
Optional subcycle distance elements and series compensation logic reduce operation time, thereby improving system stability. You can reverse the polarity of individual or grouped CTs or PTs to accommodate changes in field wiring or protection zones.
Single-Pole or Three-Pole Operation—Integrates programmable single-pole and three-pole tripping and reclosing of one or two circuit breakers into an integrated substation control system. Provides complete bay control through synchronization and voltage checks from multiple sources.
Series Compensated Transmission Lines—Detects faults other than series capacitors and prevents zone 1 out-of-bounds crossings on series compensated transmission using optional lines logic in the SEL-421-5 protection, automation, and control systems. Communication-Assisted Tripping Scheme—Configures transmission line protection without any external coordination equipment.
The SEL-421 includes settings for Allowable Out-of-Limit Tripping (POTT), Dual-Channel Allowable Out-of-Limit Tripping (POTT2), Phase-by-Phase Allowable Out-of-Limit Tripping (POTT3), Directional Comparison Unlock (DCUB), and Directional Comparison Lock (DCB).
Out-of-step blocking and tripping—Selects out-of-step blocking for distance elements or tripping during power fluctuations. protection, but can be used individually for monitoring and station integration applications.
Thermal Overload Protection—Uses three independent IEC 60255-149 thermal elements to activate control operations, issue alarms, or trip equipment when it overheats due to adverse operating conditions.
The SEL-2600 RTD module can provide ambient temperature measurement. Under-frequency load shedding—Operates the six-level frequency element as an under-frequency or over-frequency element. The frequency element is suitable for applications such as low-frequency load shedding and recovery control systems.
Flexible Communication Options—Uses Small Pluggable (SFP) transceivers on the process bus, station bus, and engineering access ports of a five-port Ethernet card. Choose between single-mode and multi-mode communication options for increased flexibility.
All ports support 100 Mbps SFP transceivers, and the process bus ports also support 1 Gbps SFP transceivers.
Our company is a leading supplier of the American SEL-421 integrated protection device automation control system. We source directly from the American SEL manufacturer, ensuring authenticity. For product details, please contact our sales department.
Plain language sourcing guide for American SEL-421 Integrated Protection Device Automated Control System
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | SEL | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
American SEL-421 Integrated Protection Device Automated Control System
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
American SEL-421 Integrated Protection Device Automated Control System verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
