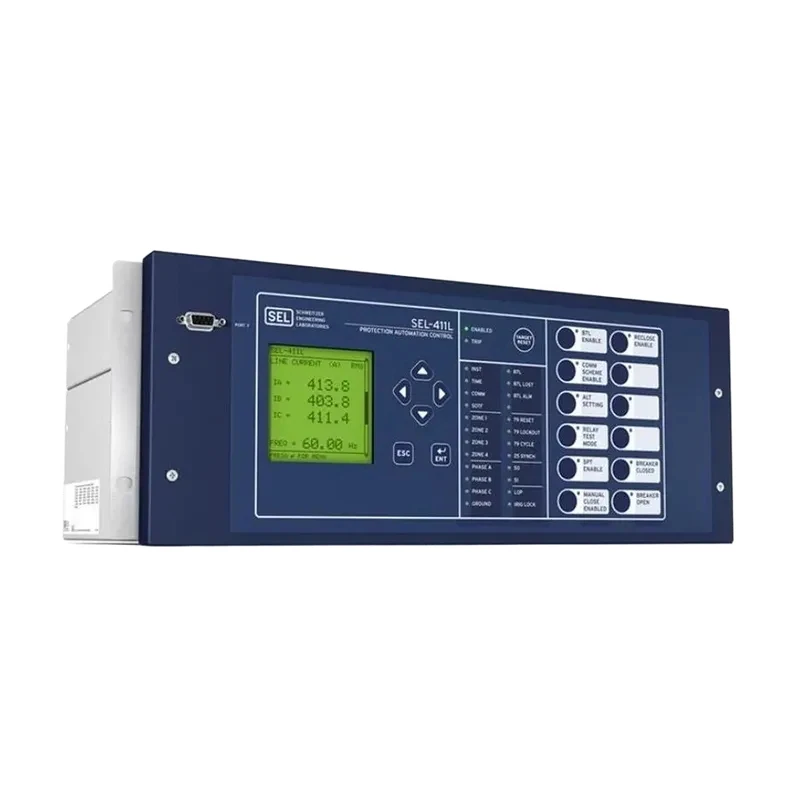

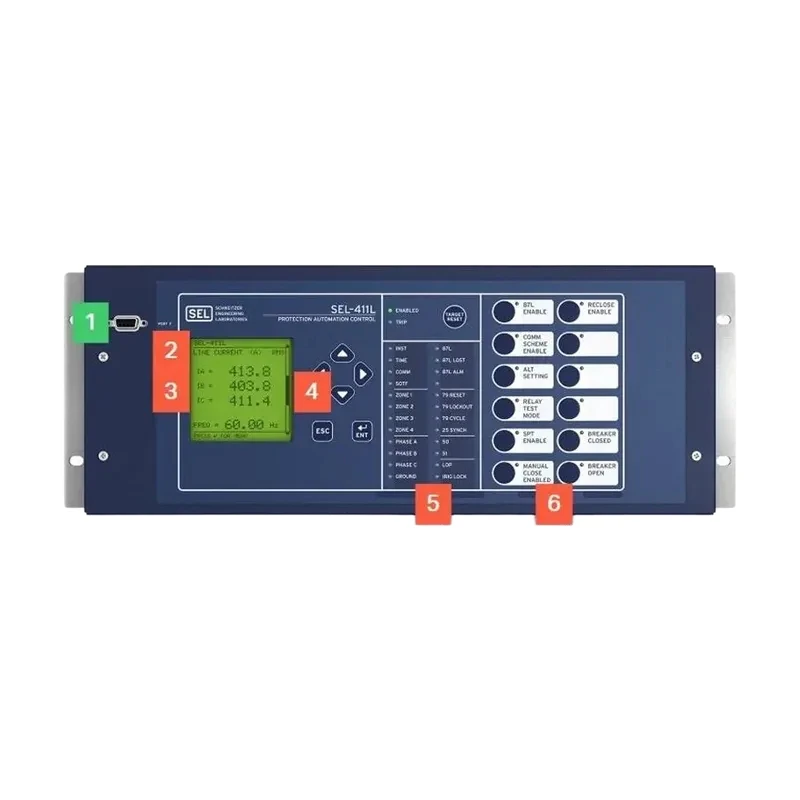

SEL-411L Integrated Protection Device Line Differential Protection System
LEHIY item code: LH-SEL-0022
Quick buying check
This page helps you check SEL-411L Integrated Protection Device Line Differential Protection System before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
SEL-411L Integrated Protection Device: Line Differential Protection System, Automation, and Control System. SEL-411L Advanced Line Differential Protection, Automation, and Control System. Directly sourced from the original SEL manufacturer in the USA, ensuring genuine products and competitive pricing.
We can provide remote or on-site installation and commissioning services for SEL products. The SEL-411L provides comprehensive protection and control for any line transmission (short, long, or series compensated).
The SEL-411L offers differential and distance protection through phase- and sequence-based operating elements for sensitive and high-speed operation.
You can choose from many popular fiber optic and multiplexed communication options. It includes distance protection and logic from the complete SEL-421 protection, automation, and control system for redundant protection and integration. The SEL-411L includes a traveling wave fault location method for locating faults within tower spans.
Open-circuit detection in the SEL-411L detects open circuits in overhead lines. This feature prevents parallel faults that may occur due to conductor drops. Transform substation modernization with optional Time Domain Link (TiDL) technology or sampled value (SV) based technology according to IEC 61850-9-2.
Line current differential protection—applies sub-cycle single-pole or three-pole line current differential protection and backup distance protection to lines transmission using serial or Ethernet differential communication.
The universal Alpha Plane technology, combined with overcurrent monitoring, external fault detection, and interference detection logic, enables the 87L function to operate with excellent safety and sensitivity. You can reverse the polarity of individual or grouped CTs or PTs to accommodate changes in field wiring or protection zones.
Series compensation and long lines—prevents zone 1 from exceeding the range on series compensated lines through optional logic in the SEL-411L-1. Built-in charge compensation improves the sensitivity and speed of long line differential protection.
Series transformers—simplifies protection schemes and reduces equipment costs by providing complete protection for combined lines and transformers. The 87L function of the relay allows for compensation of the vector group, ratio, and zero sequence of transformers within the area in online transformer applications.
Stability under inrush current conditions is achieved using harmonic blocking and/or limiting. Out-of-step blocking and tripping—during power fluctuations, the relay automatically selects out-of-step blocking or tripping. Out-of-step blocking enhances your safety by blocking distance elements under stable swing conditions.
Under unstable power swing conditions, the SEL-411L implements out-of-step tripping to maintain balance between generation and load. Multi-terminal transmission lines—protect lines with up to four terminals.
Apply the SEL-411L to half-circuit bus configurations or other dual-circuit breaker schemes with relay dual CT and PT inputs.
Efficiently dispatch line personnel, quickly isolate line problems, and restore service faster. The multi-terminal fault location system quickly locates faults even on transverse transmission lines. Flexible communication options—use small pluggable (SFP) transceivers on the process bus, station bus, and engineering access ports of the five-port Ethernet card.
Choose between single-mode and multi-mode communication options for increased flexibility. All ports support 100 Mbps SFP transceivers, and the process bus ports also support 1 Gbps SFP transceivers.
Our company is a leading supplier of SEL-411L integrated protection devices, line differential protection systems, and automation and control systems.
We source directly from the manufacturer, guaranteeing genuine products. For more details about the SEL-411L protection device, please contact our sales department.
Plain language sourcing guide for SEL-411L Integrated Protection Device Line Differential Protection System
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | SEL | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
SEL-411L Integrated Protection Device Line Differential Protection System
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
SEL-411L Integrated Protection Device Line Differential Protection System verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
