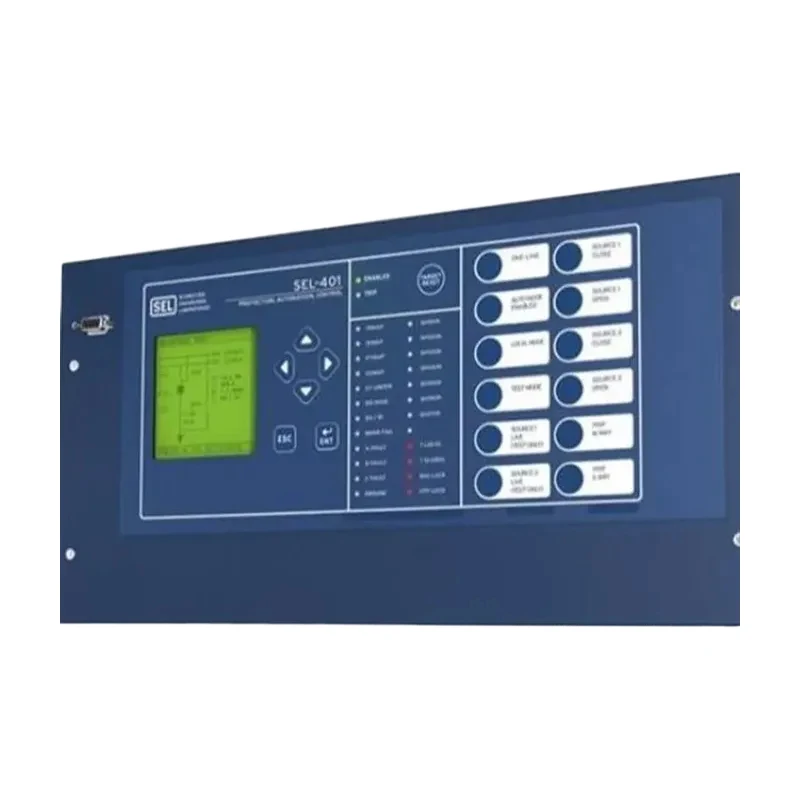

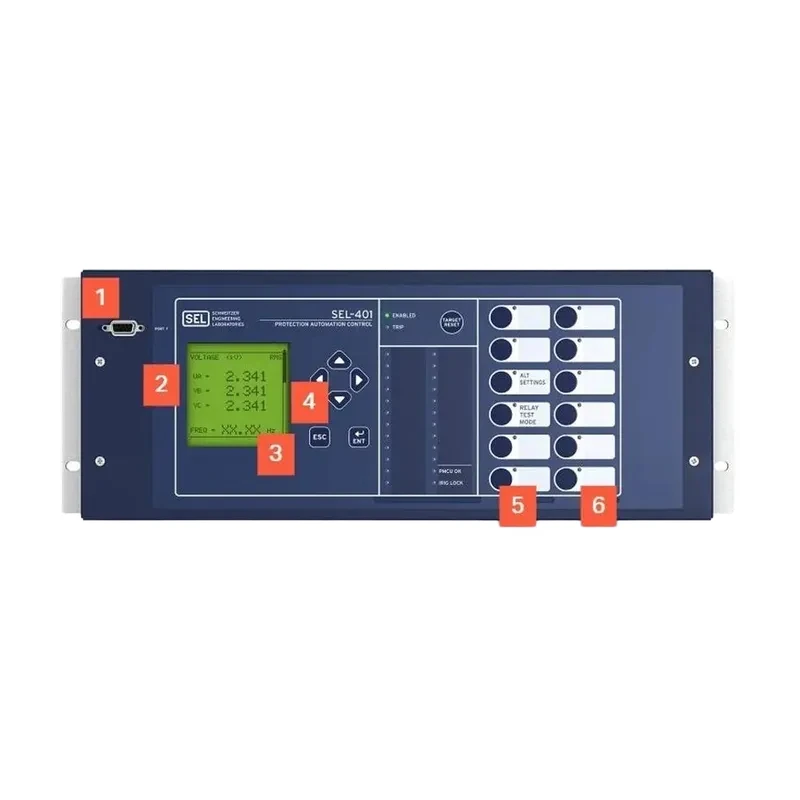

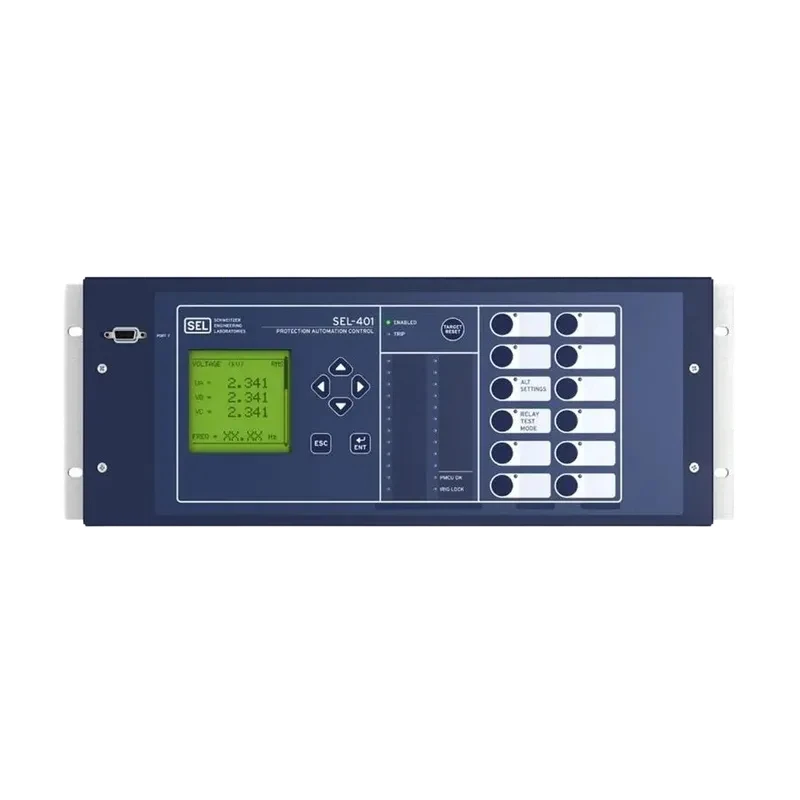

American SEL-401 Integrated Protection Device

The American SEL-401 Integrated Protection, Automation, and Control Merging Unit is a genuine product sourced directly from the manufacturer. We offer remote or on-site installation and commissioning services for American SEL units. The SEL-401 is used in substations with IEC 61850-9-2 Sampled Value (SV) systems.

It samples analog data such as current and voltage and then publishes this data to a fiber-optic Ethernet network for use with other IEDs, such as compatible SEL-400 series relays. The SEL-401 publishes SV data to the process bus network and provides local protection.

Built-in phase overcurrent and circuit breaker fault protection provides backup in case of communication system failure. IEC 61850-9-2 SV Implementation—Place the SEL-401 in the yard next to the main equipment.

digitizes the analog signals from the autonomous equipment and then transmits them to the control room via a fiber-optic Ethernet network.

It can publish up to seven outgoing data streams of IEC 61850-9-2 SV data to any relay subscribing to the SV. The merging unit can synchronize data using IEEE 1588 Precision Time Protocol version 2 (PTPv2) or IRIG-B time inputs.

System availability in SV applications is improved through the Parallel Redundancy Protocol (PRP) or seamless failover using a five-port Ethernet card.

Integrated protection—provides local circuit breaker fault and phase overcurrent protection in case of loss of precision time signal or communication loss with main substation relays. The SEL-401 uses high-speed (5/8 cycle) open-pole detection logic to reduce coordination time in critical circuit breaker fault applications.

Sequential Event Recorder (SER)—records the last 1,000 entries, including setting changes, merging unit opening, and optional logic element operations. Dual circuit breaker scheme—accommodates two sets of three-phase current and two sets of three-phase voltage to support substations employing dual circuit breaker schemes.

You can combine currents from two sets of CTs within the merging unit for protection purposes, but use them separately for monitoring and station integration applications. Oscilloscope—records voltage, current, and internal logic points at sampling rates up to 8 kHz.

Phasor and harmonic analysis capabilities allow for the study of merging unit and system performance.

Flexible communication options—use small pluggable (SFP) transceivers on the process bus, station bus, and engineering access ports of the five-port Ethernet card. Choose between single-mode and multi-mode communication options for increased flexibility.

All ports support 100 Mbps SFP transceivers, with the process bus port also supporting 1 Gbps SFP transceivers.

SEL-SV-based solutions are based on the IEC 61850 standard, maximizing flexibility and interoperability. The SEL-401 protection, automation, and control merging unit digitizes analog signals from future autonomous devices and sends them to SV relays in the control room using a sampled-value protocol.

Because all SEL SV devices comply with IEC 61850-9-2 and UCA 61850-9-2LE guidelines, the SEL-401 can be used with other manufacturers' IEC 61850 compliant devices. The SEL-401 includes built-in phase overcurrent and circuit breaker fault protection. mathematical and comparison capabilities.

The SEL-401 includes 32 programmable elements to enhance automation functions such as local control, remote control, protection interlocking, and automation interlocking.

Metering and monitoring employ a wide range of metering functions, such as instantaneous metering, power/energy metering, and comprehensive reporting of SV communication streams. Event reporting and SER logs provide valuable timestamp information for commissioning and post-event analysis.

Synchronization phasors provide real-time system status measurements of time-synchronized voltage and current in IEEE C37.118 standard format. Combined with the SEL-5078-2synchroWAVe central software or third-party software, you can view and analyze system phase angles, load oscillations, voltage curves, and other critical system information.

Flexible Ethernet communication options with four-port and five-port Ethernet communication cards enable communication using various protocols, including FTP, HTTP, DNP3, PTPv2, PRP, Telnet, synchronization phasors, and IEC 61850 version 2.

The SEL-401 can be configured with a five-port Ethernet card supporting PRP or failover functionality to improve system availability and PTPv2 can be configured on process bus or station bus ports for time synchronization.

By utilizing the network monitoring function in the relay, communication network faults can be detected through proactive monitoring of each redundant path, further improving system availability. Our company is a leading supplier of the American SEL-401 integrated protection device, a combined protection, automation, and control unit.

We source directly from the manufacturer to ensure authenticity. For product details regarding the SEL-401 protection device, please contact our sales department.
