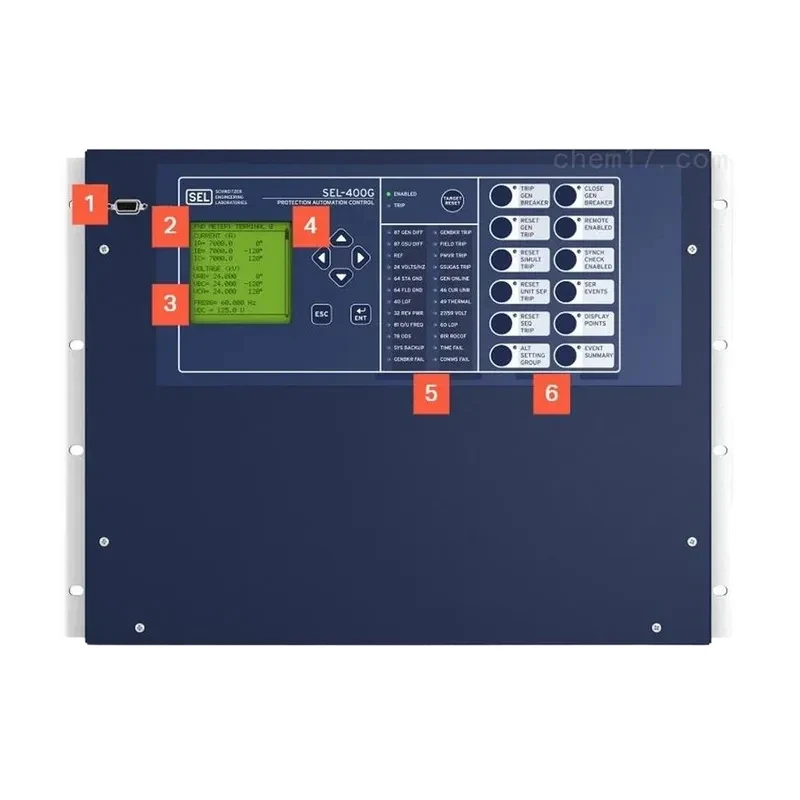

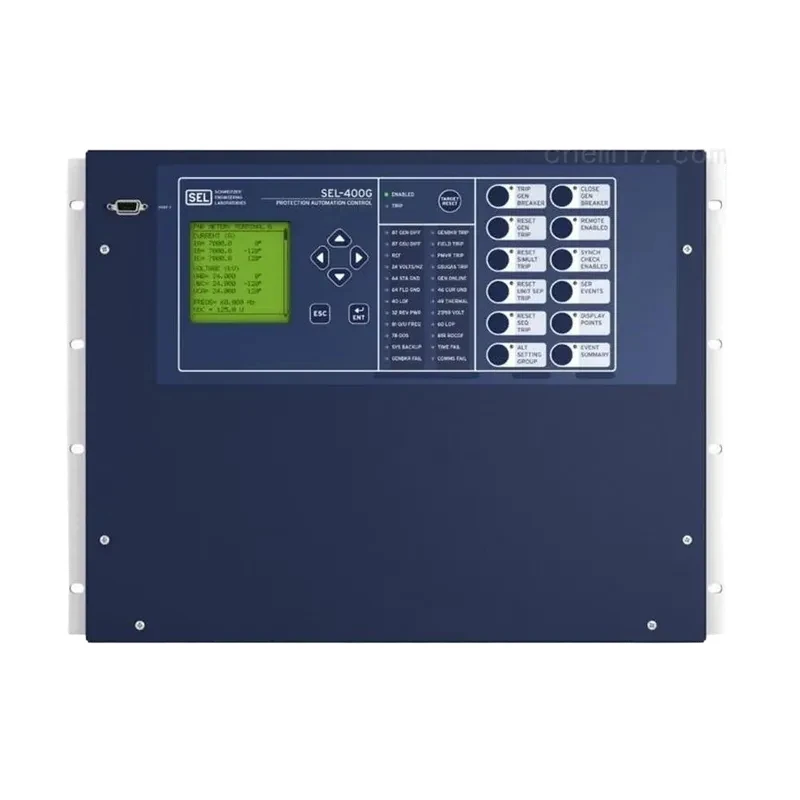

American SEL-400G Advanced Generator Protection Device
LEHIY item code: LH-SEL-0020
Quick buying check
This page helps you check American SEL-400G Advanced Generator Protection Device before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The SEL-400G advanced generator protection device is sourced directly from the original SEL manufacturer in the USA, ensuring authenticity. We can provide remote or on-site installation and commissioning services for SEL products.
The SEL-400G provides primary and backup protection for generators of all sizes and types, including hydraulic, pumped storage, steam turbine, and gas turbine generators. It combines generator, bus, and step-up transformer protection in a single package, making the relay an economical solution for the entire generator set.
Advanced protection features such as lateral differential protection provide inter-turn fault detection, enabling early fault detection, limiting damage to the generator, and helping you restore service faster. Adaptive differential protection and a wide frequency tracking range (5-120 Hz) enhance protection safety.
Dual-frequency zone and automatic synchronization provide smooth synchronization with the grid. The SEL-400G can be quickly integrated into serial or Ethernet-based communications. The new SEL Grid Configurator software allows you to quickly create, manage, and deploy device settings.
Alternatively, you can continue to use the acSELerator QuickSet SEL-5030 software to meet your configuration needs. SEL generator protection devices from the USA offer the following features: **Comprehensive Generator Protection:** Two independent universal differential elements provide protection for the generator and GSU transformer in a single relay.
With 18 current inputs, 6 voltage inputs, and a wide-range frequency tracking (5–120 Hz), the SEL-400G can be used in a variety of generator configurations. Furthermore, its superior reverse generator protection and loss-of-excitation protection elements further protect your generator.
**Pumped Storage Logic:** This feature enables pumped storage hydroelectric protection without the need for external relay switching of CT wiring, reducing costs and increasing reliability. **Stator Ground Fault Protection:** Achieves passive and active ground fault detection on 100% of the stator windings.
The stator winding ground fault protection element includes an integrated timer that detects intermittent ground faults and isolates the generator before the fault evolves into a permanent one.
Rotor/Excitation Winding Protection—Using the SEL-2664 excitation grounding module and the SEL-2664S stator grounding protection relay with the SEL-400G can protect your system from rotor/excitation winding short circuits.
Using field grounding protection components, the first fault will trigger an alarm, and the second fault will result in a trip signal.
Simplified Setup Management—SEL Grid Configurator is a new configuration software tool that improves efficiency and setup insight. It features a spreadsheet-style editor, powerful protection visualization, comprehensive reporting, custom filters, and multi-device setup management.
Our company has the advantage of supplying the SEL-400G advanced generator protection device from the USA, sourced directly from the original SEL manufacturer, ensuring authenticity. For product details regarding the SEL-400G generator protection device, please contact our sales department.
Plain language sourcing guide for American SEL-400G Advanced Generator Protection Device
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | SEL | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
American SEL-400G Advanced Generator Protection Device
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
American SEL-400G Advanced Generator Protection Device verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
