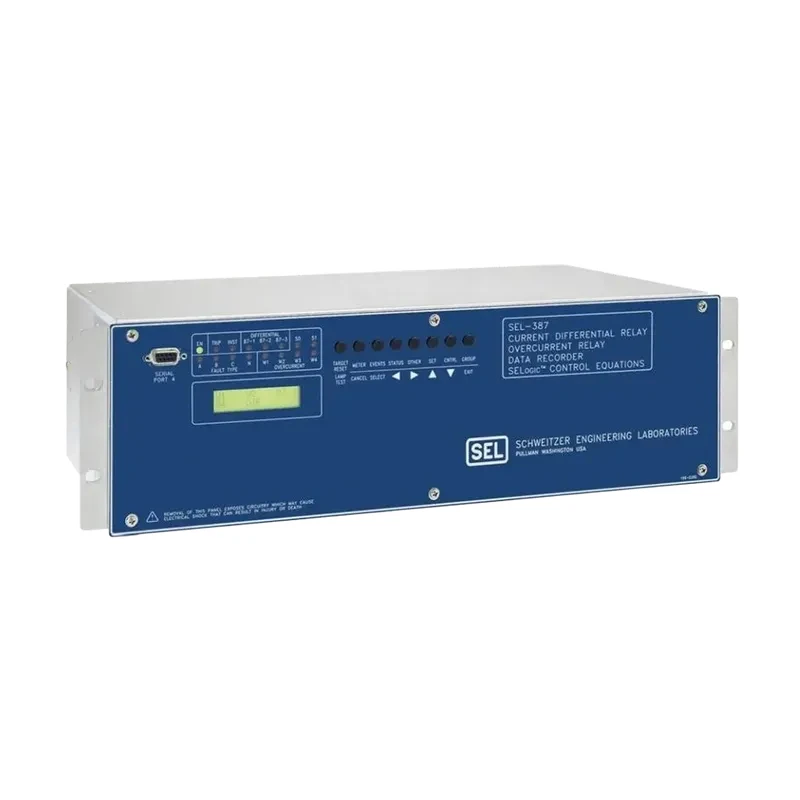

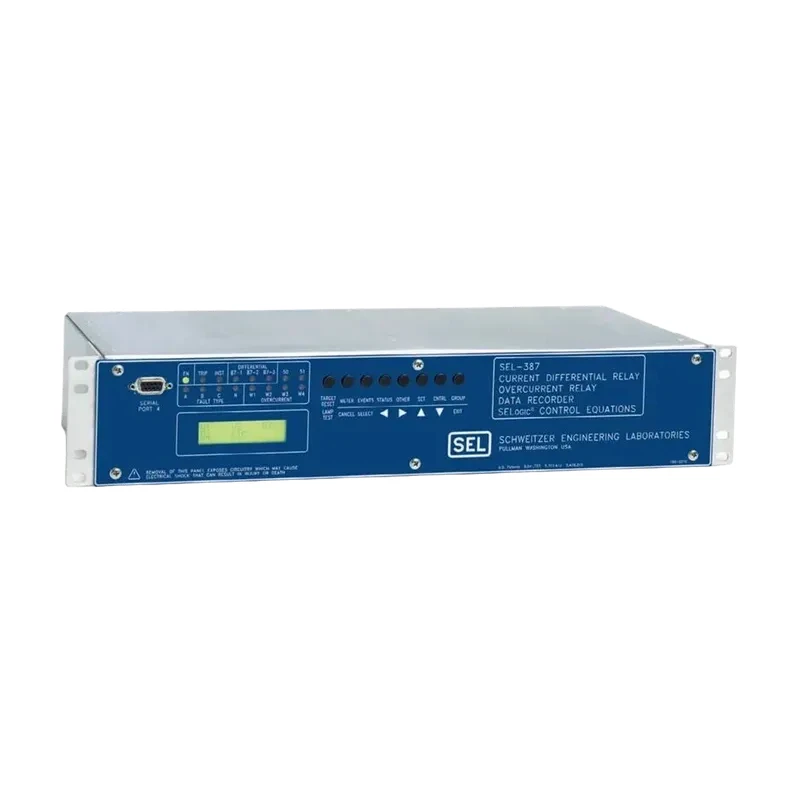

American SEL-387 protection device with differential current and overcurrent relay
LEHIY item code: LH-SEL-0019
Quick buying check
This page helps you check American SEL-387 protection device with differential current and overcurrent relay before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
SEL-387 Current Differential and Overcurrent Relay (USA) - We can provide remote or on-site installation and commissioning services for SEL products from the USA. We source directly from the US SEL factory, ensuring genuine products, and offer competitive pricing through group shipping.
The SEL-387 Current Differential and Overcurrent Relay provides protection, control, and metering for transformers, busbars, circuit breakers, and feeders.
Features include four three-phase current inputs with independent constrained and unconstrained differential protection, programmable single-slope or dual-slope differential characteristics, circuit breaker monitor, battery voltage monitor, and enhanced SELogic control equations.
The SEL-387 Current Differential and Overcurrent Relay features include: Multi-winding Current Differential Protection – Protects power transformers with up to four windings by combining single-slope or dual-slope percentage differential characteristics, overcurrent protection, and limiting ground fault (REF) protection.
The SEL-387A Current Differential and Overcurrent Relay is a low-cost solution for protecting two-winding transformers. Beyond typical transformer protection—protects reactors, generators, large motors, and other multi-terminal electrical equipment. Provides backup distribution bus or feeder protection using low-side overcurrent elements.
Independent winding overcurrent protection—provides comprehensive overcurrent protection for each winding input via torque-controlled overcurrent elements. In the SEL-387, combined current characteristics sum the currents of two current transformers (CTs) for overcurrent applications involving a ring bus and a half-circuit breaker.
Condition-based maintenance—optional thermal monitoring activates control operations or issues alarms when the transformer is at risk of excessive insulation aging or loss of life. Uses shoot-through fault monitoring to collect accumulated shoot-through fault data and schedule proactive maintenance.
Our company offers a superior supply of SEL-387 protection devices with current differential and overcurrent relays, sourced directly from the manufacturer, guaranteeing genuine products.
The SEL-387 protection device product overview is as follows: Two-winding, three-winding, and four-winding current differential protection with programmable single-slope or dual-slope percentage constraints.
Sensitive current differential protection is monitored by selected second and fourth harmonic blocking or suppression elements, as well as fifth harmonic and DC blocking elements for safety protection of up to four windings. Phase current harmonic blocking is set to a common or independent winding basis.
Unconstrained high-level differential elements provide fast operation for high-amplitude internal faults. "All-weather" phase angle compensation setting and automatic tap calculation simplify setup.
Independent winding overcurrent protection with torque-controlled overcurrent elements, including one instantaneous, one definite-time, and one inverse-time element, each for phase current, negative-sequence current, and zero-sequence ground current, providing comprehensive overcurrent protection for each winding input.
Combined current function adds currents from two CTs for ring bus and one-half-circuit breaker overcurrent applications. Shot-through fault logging and monitoring: Shot-through fault loads are logged and accumulated for SELogic control equations or manual monitoring.
Protection and control logic is used for restricted ground fault (REF) logic in sensitive grounding star winding ground fault protection. bits, and remote control elements are used to customize advanced protection and control schemes.
Local programmable control elements and programmable text display points are provided for an advanced local operator interface. Metering and reporting include oscilloscope event reporting (up to 7 60-cycle reports), Sequential Event Recorder (SER) reporting, and accurate metering, eliminating or reducing external recorder and metering requirements.
Substation battery voltage monitors and circuit breaker contact wear monitors provide critical data for reliability-centered maintenance (RCM) programs. The acSELerator QuickSet SEL-5030 software allows offline development of relay settings, programming of SELogic control equations, and analysis of post-fault event reports.
For details on the SEL-387 protection device, please contact our sales department.
Plain language sourcing guide for American SEL-387 protection device with differential current and overcurrent relay
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | SEL | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
American SEL-387 protection device with differential current and overcurrent relay
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
American SEL-387 protection device with differential current and overcurrent relay verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
