American SEL-351S Integrated Protection Device
LEHIY item code: LH-SEL-0012
Quick buying check
This page helps you check American SEL-351S Integrated Protection Device before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

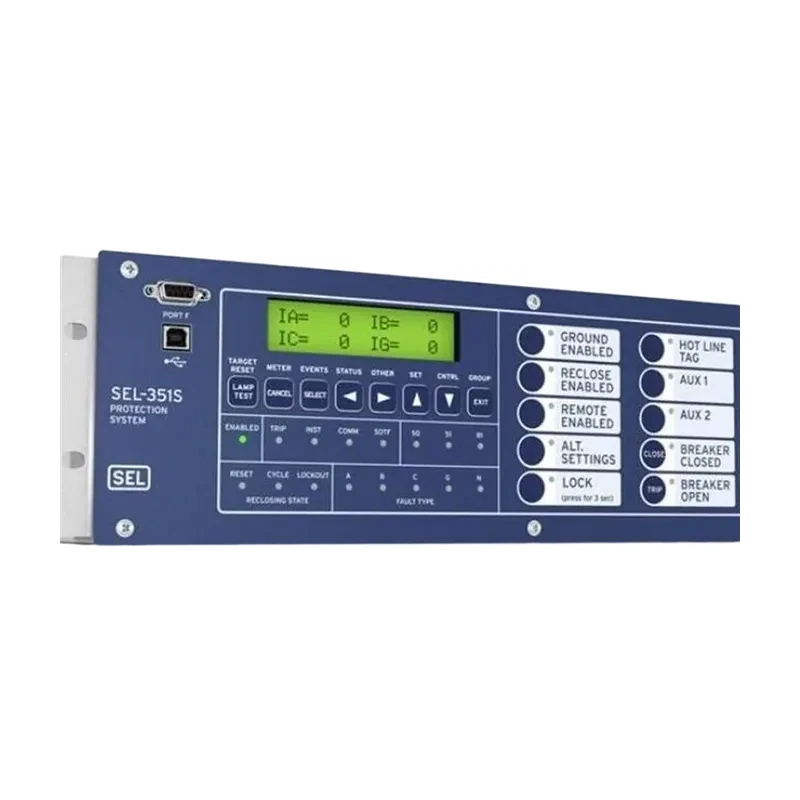

SEL-351S Integrated Protection Device, sourced directly from the US SEL manufacturer. Genuine SEL 351S microprocessor-based protection device, SEL-351S Protection System. We offer remote or on-site installation and commissioning services for SEL products.
The SEL-351S protection device provides comprehensive feeder and overcurrent protection, ideal for industrial and utility feeder applications. Improve your service quality with lower costs and innovative such features as Mirrored Bits communication, IEEE C37.118 synchronous phasors, extended operator control, and SEL's Best Choice Ground Directional Element logic.
Complete distribution system protection—applies a comprehensive combination of overcurrent functions, providing sensitive protection against phase-to-phase and phase-to-ground faults, and enabling rapid action on three-phase faults.
Reclosing control—programs the relay's four-times automatic reclosing function using synchronization and voltage check logic to simulate various reclosing practices. Sequential coordination logic coordinates with downstream reclosing to form a complete protection scheme.
Fast Substation Restoration – Automated substation restoration schemes are commissioned using a programmable user interface control and Mirrored Bits communication, along with the SEL-2100 logic processor.

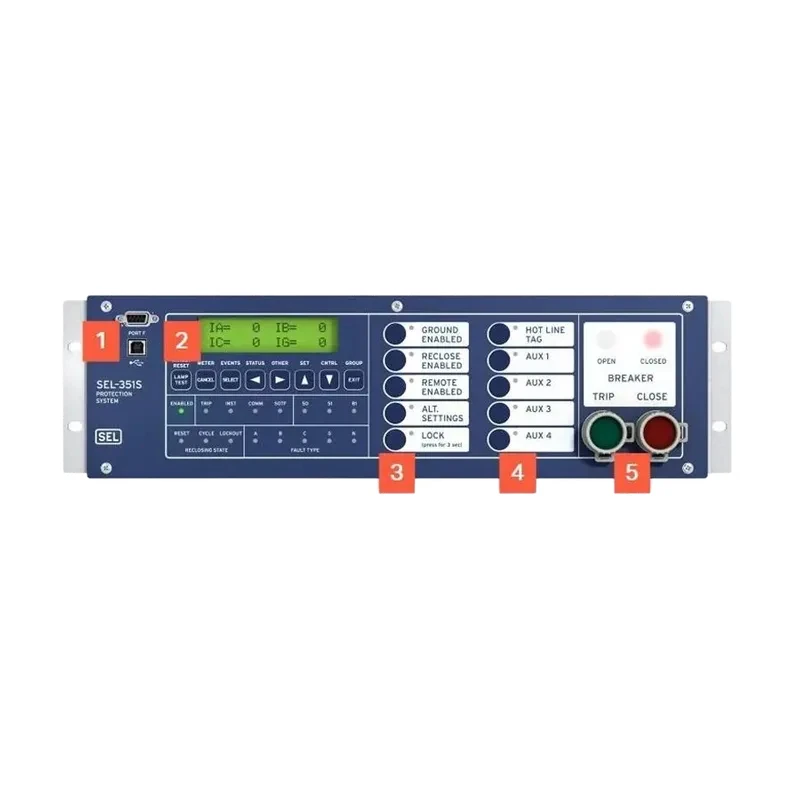

Reliable Circuit Breaker Control – Circuit breakers are manually opened or closed using optional SafeLock trip/close buttons, providing direct control of circuit breakers independent of relays.
The SEL-351S microprocessor-based protection device is summarized below: Protection Aspects: Innovative Directional Element Polarization provides directional stability during phase faults through positive sequence voltage polarization memory of the phase directional element.
Best Choice Ground Directional Element system logic ensures safe operation of the ground directional element for all types of system grounding practices under various system conditions. Frequency Protection provides advanced load unloading through six-level frequency elements and four frequency change rate elements, as well as undervoltage/overvoltage protection.
Reclosing Control employs four-stage reclosing with sequential coordination, synchronization checks, and voltage checks. Fault Locator uses an impedance-based fault locator to calculate accurate fault distance measurements. Second Harmonic Blocking Detection – Transformer energization is monitored by the second harmonic blocking element.
The output of the harmonic detection element blocks the selected tripping element until the surge condition subsides. The Fast Dropout Breaker Failure Element and local circuit breaker fault logic enhance circuit breaker fault detection.
In terms of communications: The IEC 61850 communication protocol applies optional IEC 61850 communication to the SEL-351S protection system to ensure the performance of substation automation and control. The acSELerator Architect SEL-5032 software simplifies the configuration of IEC 61850-compliant relays.
Mirrored Bits Communications Technology provides fast and reliable trunk-to-trunk communication for advanced communication-assisted protection, network reconfiguration, pilot protection, and recovery schemes. Modbus, DNP3, and ASCII protocols are easily integrated into new or existing networks using these popular protocols.
Supervisory Control and Data Acquisition (SCADA) links, local human-machine interfaces (HMIs), and dial-in modems can access critical relay data. The Simple Network Time Protocol (SNTP) simplifies cabling and installation by receiving time signals over existing Ethernet networks.
SNTP provides an excellent backup for more accurate IRIG-B time synchronization.
Its 5-millisecond accuracy is ideal for basic time synchronization across the entire substation. For monitoring and metering: Enhanced circuit breaker monitoring checks reports on recent tripping and closing times and average operating times, or collects trend data from up to 128 previous operations.
This information allows for timely and economical scheduling of circuit breaker maintenance. Metering and power quality (PQ) monitoring eliminates the need for external instruments (MW, MVAR, MWh, MVARh, power factor (PF), RMS, and instantaneous/peak demand) through accurate metering. Harmonic metering of the 16th harmonic simplifies PQ analysis.
Optional PQ monitoring records voltage dips, swells, and interruptions. A built-in web server provides access to basic trunk information on standard Ethernet. View relay status, Sequence Event Recorder (SER) data, metering information, and settings for easy access within the local network. Upgrade firmware via existing Ethernet connections.
Web server access requires a trunk password. Our company has a strong advantage in supplying the American SEL-351S integrated protection device. We source directly from the American SEL manufacturer, guaranteeing authenticity. For product details regarding the SEL-351S integrated protection device, please contact our sales department.
Plain language sourcing guide for American SEL-351S Integrated Protection Device
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | SEL | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
American SEL-351S Integrated Protection Device
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
American SEL-351S Integrated Protection Device verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
