MOOG servo valves D633-308B and D633-313B
LEHIY item code: LH-MOOG-0007
Quick buying check
This page helps you check MOOG servo valves D633-308B and D633-313B before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We supply MOOG servo valves D633-308B and D633-313B. Genuine MOOG products and systems are suitable for many applications. Manufacturers, machine operators, and plant operators worldwide trust the efficiency, precision, and robustness of MOOG products.
MOOG products save energy, increase productivity, and significantly reduce operating costs—whether standardized or customized, they are suitable for a wide range of industrial applications. The MOOG D633 and D634 series servo valves are direct-drive (DDV) valves with electrically operated closed-loop spool position control.
These valves are throttle valves for 3-way, 4-way, and 2x2-way applications. They are suitable for electro-hydraulic position, speed, pressure, or force control systems, including those with high dynamic response requirements.
The spool drive is a permanent magnet linear force motor that actively pushes the spool to the center position in both directions from a spring.
This is an advantage compared to a proportional solenoid with a single force, which is only directional. Closed-loop spool position control and pulse width modulation (PWM) drive electronics are integrated into the valve.
are as follows: ---Direct drive by a linear force motor: no pilot stage required ---Linear force motor with a high output range (improving operating limits): no flow limitation ---Direct drive design: dynamic performance is pressure-independent ---Low current consumption when at or near hydraulic zero ---Valve spool is in the.

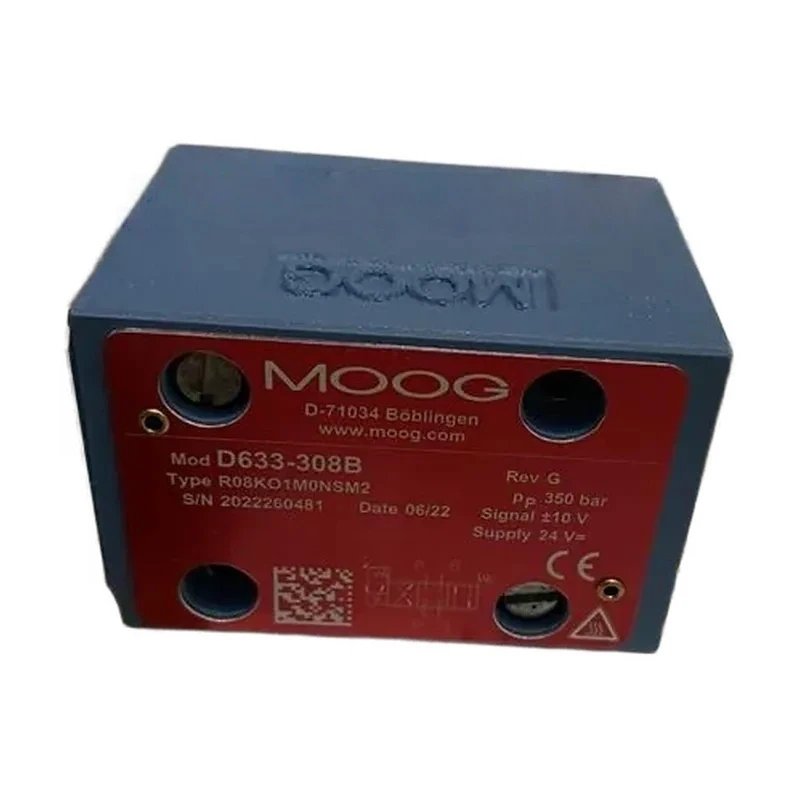

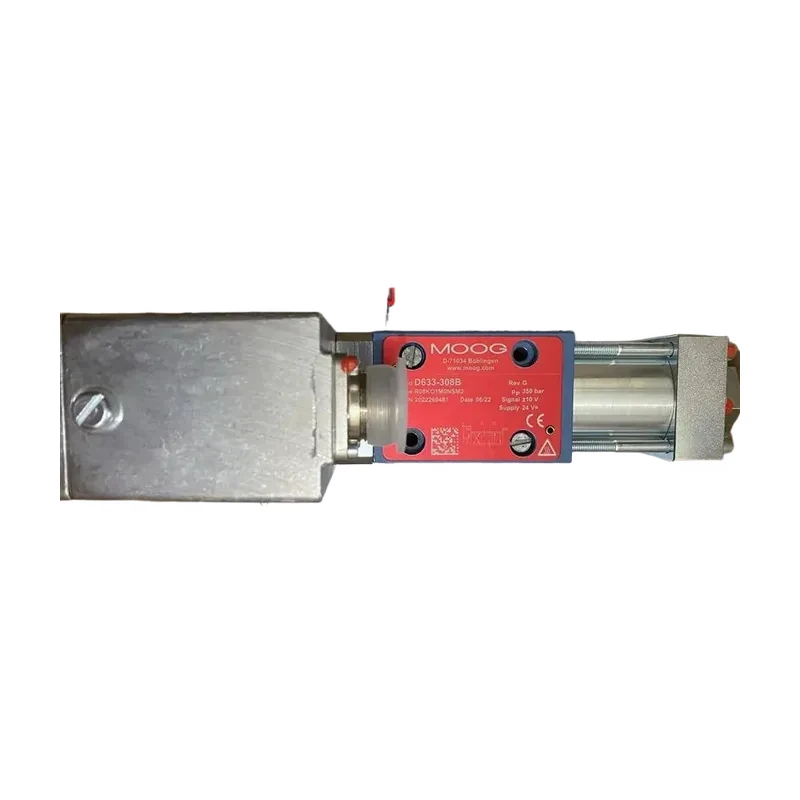

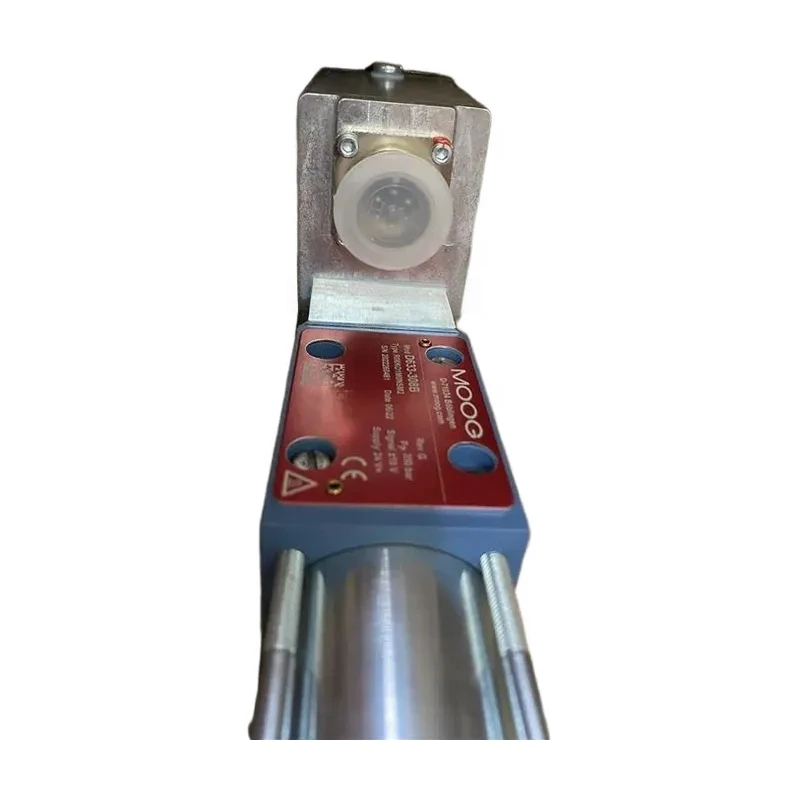

spring-centered position when de-energized: actuator stops MOOG D633-308B D633-313B, actual product image is shown below: Specifications of the MOOG D633 and D634 series servo valves are as follows: Mounting type: D633: ISO 4401 size 03 D634: ISO 4401 size 05 Hydraulic parameters Maximum working pressure at.
ports P, A, and B: 350 bar (5,000 psi) Rated flow rate at ΔpN of 35 bar/per flow edge (500 psi/per flow edge): D633: 5 to 40 I/min (1.3 to 10.6 gpm) D634: 60 to 100 I/min (15.9 to 26.4 gpm).
Maximum flow: D633: 75 I/min (19.8 gpm) D634: 180 I/min (47.6 gpm) Step response time from 0 to 100% stroke: D633: ≤ 12 ms D634: ≤ 20 ms Electrical parameters Power supply voltage: 24 VDC (19 to 32 VDC) Rated signal selection: +/-10 V, +/-10 mA.
and 4-20 mA Our company has the advantage of supplying genuine MOOG servo valves D633-308B and D633-313B.
For product details of MOOG D633-308B and D633-313B servo valves, please contact our sales department.
Plain language sourcing guide for MOOG servo valves D633-308B and D633-313B
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | MOOG | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
MOOG servo valves D633-308B and D633-313B
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
MOOG servo valves D633-308B and D633-313B verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
