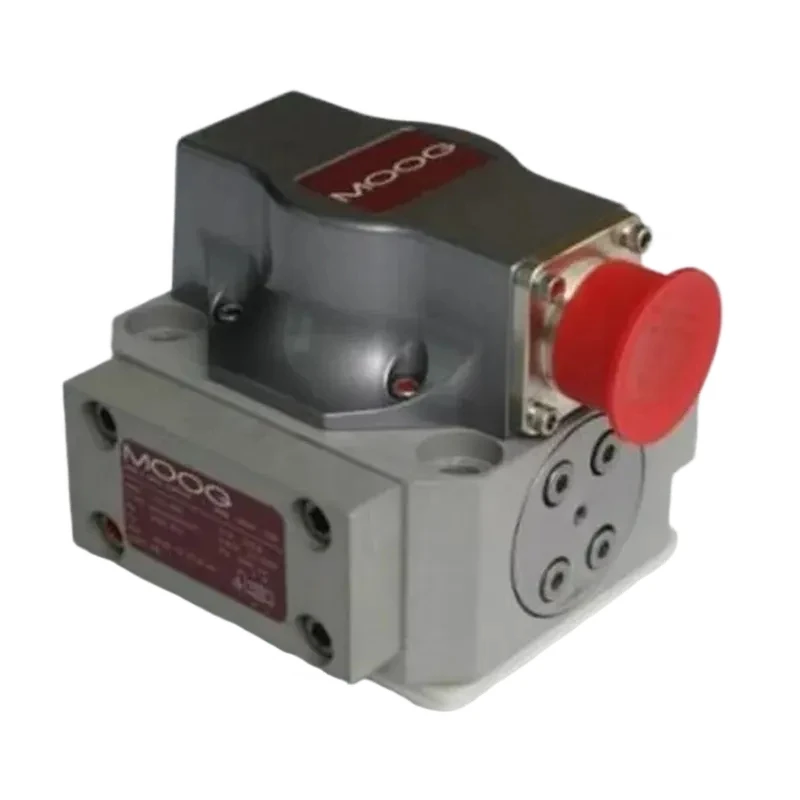

MOOG DDV valves and servo valves are available for power plant use.
LEHIY item code: LH-MOOG-0002
Quick buying check
This page helps you check MOOG DDV valves and servo valves are available for power plant use. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
MOOG DDV valves and MOOG servo valves are commonly found in power plants and are industrial valves. They are divided into MOOG flow control valves and pressure and flow (P/Q) control valves.
MOOG servo valves are electro-hydraulic continuously actuated valves that convert varying analog or digital input signals into steplessly variable hydraulic outputs (flow or pressure).
MOOG servo valves describe a valve design, sleeve assembly, characterized by high-precision metering edges. MOOG is a leader in manufacturing and selling high-performance hydraulic valve products. With over 60 years of experience, they produce servo valves and proportional valves for industrial applications.
MOOG servo valves incorporate a mechanical or electrical feedback mechanism. Valve bodies are designed and manufactured to meet the most demanding customer needs. MOOG servo valves offer numerous models, various sizes, performance characteristics, and installation options.
MOOG servo valve classification: MOOG flow control valves can be classified into three categories according to their structure: those with fieldbus interface, those with integrated electronics, and those without integrated electronics.
MOOG flow control valves and fieldbus interface direct-operated servo valves in the D636 and D637 series feature linear force motors that provide unlimited flow over a high force range, require no pilot drive flow, have low current consumption, and near-zero hydraulic pressure.
The MOOG pilot-operated servo valve D670 series features an optimized design for its high-flow-rated valve mechanism, integrated digital electronics, and fieldbus interface for high flexibility, resulting in excellent dynamic response during pilot testing.
The pressure and flow (P/Q) control valves in the D633 and D634 series are direct-operated servo valves where the valve spool is directly driven by a linear motor force, with an electronic amplifier for closed-loop internal control of the spool position.
The direct-acting design avoids leakage losses in the pilot stage, and the dynamic response is independent of system operating pressure. The integrated circuits for these valves represent a significant advancement, characterized by SMD technology with pulse-width modulated current drive output and a 24V power supply.
The working principle of MOOG pressure and flow (P/Q) control valves D633 and D634: Closed-loop control of valve spool displacement, with a position sensor and linear force motor, is implemented through an integrated circuit board.
The electrical input corresponding to the desired valve spool displacement is given to the integrated circuit board, which converts it into pulse width modulation (PWM) current to drive the linear motor.
An oscillator excites the valve spool position sensor (LVDT) to generate an electrical current proportional to the valve spool displacement.
The MOOG pressure and flow (P/Q) control valve D637 series motor features a high force range (improving operating limits), provides no flow restriction, is directly driven by a linear force motor without pilot flow, has low current consumption, and near-zero hydraulic pressure.
MOOG DDV valves and servo valves are available for power plant use.
Some MOOG servo valve models include: D633-328BR16K01MONSP2, D633-322B, D633-7303, D633-501B, D633-313BR16K01MONSM2, D633-460B, D633-521B, R16KO1F0NSX2, D633-525B, D633-303, D633-7235, D633-183B, D633-599B, D633Z371B, R16KA1MONSX2, D633-455B, D633-303B, D661-4432C, D633-317B, D633-7145, D633-313B, and D661-4433C.
D633-455B-R16K01M0NSS2 D633-515B D633-380B D661-4434C D633-Z371BR16KA1MONSX2 D633-7368 D633-471B D661-4436C D633-7375 D633-7205 D633-472B D661-4437D D633-391B D633-304BR16KO1M0VSS2 D633-473B D661-4438E D633-308B D633E714A D633-481B D661-4439C
Plain language sourcing guide for MOOG DDV valves and servo valves are available for power plant use.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | MOOG | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
