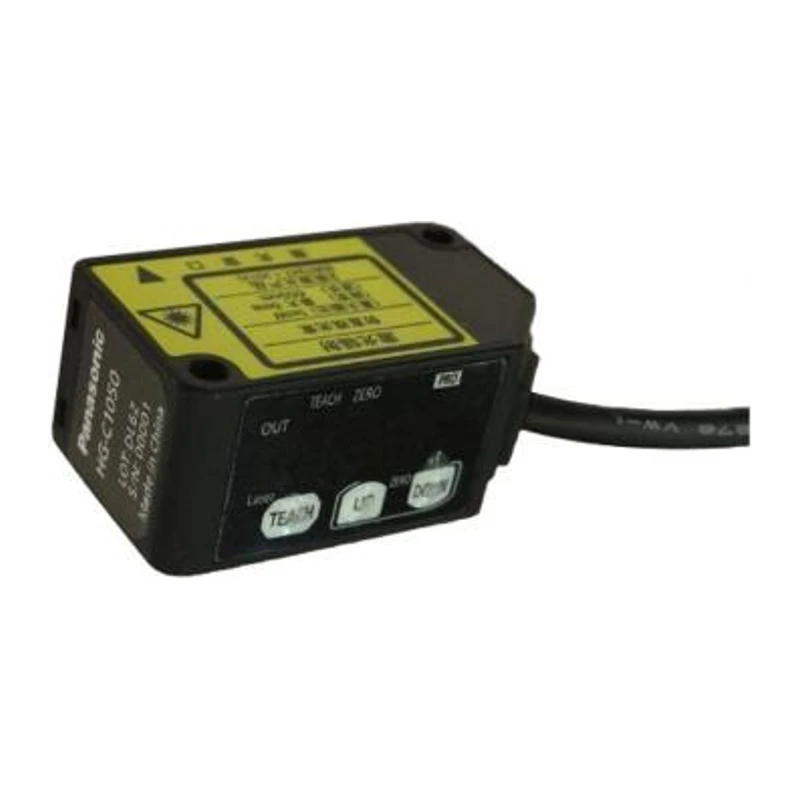

Panasonic displacement sensor, HG-C1050
LEHIY item code: LH-0313
Quick buying check
This page helps you check Panasonic displacement sensor, HG-C1050 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Overview
Product Name: Panasonic Displacement Sensor, HG-C1050 Manufacturer Model: HG-C1050 Brand: Panasonic Packaging Unit: Piece |
Technical Specifications
| Item | Content |
|---|---|
| Order Product Number | HG-C1050 |
| Model | HG-C1050 |
| Suitable Specifications | EMC Compliance Directive, FDA Rules |
| Measurement Center Distance | 50mm |
| Measurement Range | ±15mm |
| Repeatability | 30μm |
| Linearity | ±0.1% F.S. |
| Temperature Characteristics | 0.03% F.S./℃ |
| Light Source | Red Semiconductor Laser | Level 2 (JIS/IEC/GB)/Level II (FDA) (Note)Maximum Output: 1mWSurvey Peak Wavelength: 655nm(Note): Complies with FDA regulations as specified in Laser Notice No. 50.
| Beam Diameter | Approximately ø70μm (Note): Measurement center distance. Defined as 1/e<sup>2</sup> (approximately 13.5%) of the center light intensity. Measurement results may be affected if there is light leakage outside the defined area or strong reflections around the detection point higher than the detection point itself. |
| Power Supply Voltage | 12～24V DC±10% Pulse P-P less than 10% |
| Current Consumption | Less than 40mA (when power supply voltage is 24V DC) Less than 65mA (when power supply voltage is 12V DC) (Note): Specification changes are made starting with products manufactured in June 2016. Products manufactured before May 2016: 40mA or less (at 24V DC power supply), 60mA or less (at 12V DC power supply) |
| Control Output | NPN Open Collector Transistor ・Maximum Inflow Current: 50mA ・Applied Voltage: 30V DC or less (between -0V and -0V for control output) ・Residual Voltage: 1.5V or less (at 50mA inflow current) ・Leakage Current: 0.1mA or less |
| Control Output: Output Operation | ON when light is received/ON when no light is received is switchable |
| Control Output: Short Circuit Protection | Equipped with (Automatic Recovery) |
| Response Time | 1.5ms/5ms/10ms Switchable |
| External Input | NPN Contactless Input ・Input Conditions Invalid: +8～+V DC or open circuit Valid: 0～+1.2V DC ・Input Impedance: Approx. 10kΩ |
| Contamination Level | 2 |
| Usage Elevation | Below 2,000m |
| Environmental Resistance: Protective Construction | IP67(IEC) |
| Environmental Resistance: Operating Ambient Temperature | -10～+45℃ (Avoid condensation and freezing), Storage Temperature: 20～+60℃ |
| Environmental Resistance: Operating Ambient Humidity | 35～85%RH, Storage Temperature: 35～85%RH |
| Environmental Resistance: Operating Ambient Illumination | Incandescent Lamp: Illuminance of the illuminated surface below 3,000 lx |
| Environmental Resistance: Vibration Resistance | Durability: 10～55Hz (1 minute cycle), Dual Amplitude 1.5mm, XYZ directions, 2 hours |
| Environmental Resistance: Shock Resistance | Durability 500m/s (approx. 50G) XYZ 3 times in each direction|
| Cable | 0.2mm² 5-core composite cable, 2m long |
| Cable Extension | 0.3mm² and above cable, up to 10m in total length |
| Material | Carrier shell: Die-cast aluminum Front cover: Acrylic |
| Weight | Carrier weight: Approx. 35g (excluding cable), Approx. 85g (including cable) |
Technical Specifications
| Specification | Value |
|---|---|
| Category | Displacement Sensor |
| Brand | Panasonic |
Plain language sourcing guide for Panasonic displacement sensor, HG-C1050
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Panasonic | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
