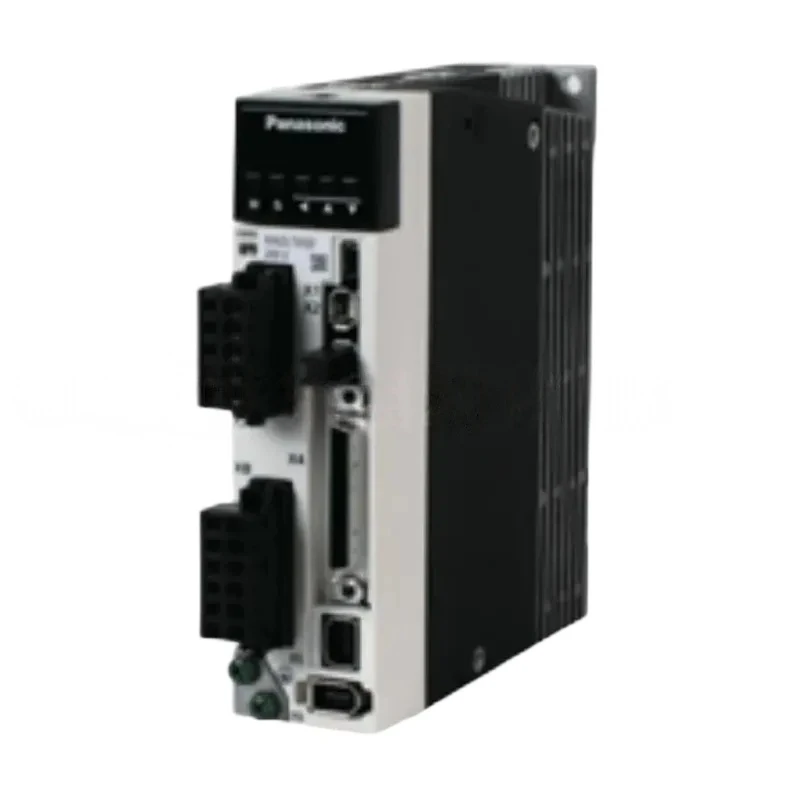

Panasonic MINAS A6S Series Servo Drives

LEHIY item code: LH-0006

Analog/pulse train input/Modbus, a faster, smarter, and easier-to-use upgrade. Improved power miniaturization of the driver.

Enquire now

Quick buying check

This page helps you check Panasonic MINAS A6S Series Servo Drives before you ask for a quote.

Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.

LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

System composition

Peripheral Equipment Composition

A6 SF Series (Driver: Type A Motor 200W)

[Note]	For the tightening torque of the product installation screw, please select the torque that will not cause loosening and damage on the basis of considering the strength of the screw used and the material of the installation position. Example) The torque of fastening steel with steel screws (M5) is 2.7 N m ~ 3.3 N m.

A6 SG series/A6 SE series (driver: D-type motor 1.0 kW)

[Hint]	Please note that the initial setting of the rotation direction is defined as the positive direction (CCW) and the negative direction (CW).

A6SF series (driver: G-type motor 7.5 kW)

[Note]	For the tightening torque of the product installation screw, please select the torque that will not cause loosening and damage on the basis of considering the strength of the screw used and the material of the installation position. Example) The torque of fastening steel with steel screws (M5) is 2.7 N m ~ 3.3 N m.

A6SF series (driver: H-type motor 22.0 kW)

[Hint]	Please note that the initial setting of the rotation direction is defined as the positive direction (CCW) and the negative direction (CW).

List of applicable peripherals

Drive	Applicable motor	Voltage specification (V) <sup>* 1</sup>	Rated power (kW)	Power capacity (at rated load) (kVA)	Wiring circuit breaker (rated current) (A)	Noise filter (single-phase/three-phase)	Surge absorber (single-phase/three-phase)	Ferrite magnetic ring	Electromagnetic contactor <sup>* 2</sup>	Cable diameter withstand voltage for main circuit	The terminal block for the main circuit holds the terminal <sup>* 3</sup>	Cable diameter for control power supply withstand voltage	The terminal block for control power supply presses the terminal	Cable diameter for motor voltage-resistant pressing terminal <sup>* 4</sup>	Cable diameter withstand voltage for brake
MADL	MSMF MHMF	Single phase 100	0.05	Approximately 0.4	10	DV0P4170	DV0P4190	DV0P1460	20 A (3P+1a)	0.75mm<sup>2</sup>/ AWG 18 600 VAC ~ 2.0mm<sup>2</sup>/ AWG 14 600 VAC	Connection of a dedicated connector	0.75mm<sup>2</sup>/ AWG 18 600 VAC +	Connection of a dedicated connector	0.75mm<sup>2</sup>/ AWG 18 600 VAC ~ 2.0mm<sup>2</sup>/ AWG 14 600 VAC	0.28mm<sup>2</sup> ~ 0.75mm </sup>2</sup>/ AWG22 ~ AWG 18 100 VAC +
MSMF MQMF MHMF	0.1
MSMF MHMF	Single-phase/three-phase 200	0.05	Approximately 0.5	DV0P4170/ DV0PM20042	DV0P4190/ DV0P1450
MSMF MQMF MHMF	0.1, 0.2
MBDL	MSMF MQMF MHMF	Single phase 100	0.2	DV0P4170	DV0P4190
Single phase/three phase 200	0.4	Approximately 0.9	DV0P4170/ DV0PM20042	DV0P4190/ DV0P1450
MCDL	MSMF MQMF MHMF	Single phase 100	0.4	Approximately 0.9	15	DV0PM20042	DV0P4190
MSMF MHMF	Single phase/three phase 200	0.75	Approximately 1.8	DV0P4190/ DV0P1450
MDDL	MGMF	Single-phase/three-phase 200	0.85	Approximately 2.0	20	DV0P4220	DV0P4190/ DV0P1450	30 A (3P+1a)	0.75 mm<sup>2</sup>/ AWG18 100 VAC
MSMF	1.0 (□80 mm)	Approximately 2.4
MDMF MHMF	1.0
MHMF	1.0 (□80 mm)
MSMF	1.0
MGMF	1.3	Approximately 2.6
MSMF MDMF MHMF	1.5	Approximately 2.9
MEDL	MGMF	Three-phase 200	1.8	Approximately 3.4	30	DV0PM20043	DV0P1450	60 A (3P+1a)	2.0mm<sup>2</sup>/ AWG 14 600 VAC ~ 3.5mm<sup>2</sup>/ AWG 12 600 VAC	2.0mm<sup>2</sup>/ AWG 14 600 VAC ~ 3.5mm<sup>2</sup>/ AWG 12 600 VAC
MSMF MDMF MHMF	2.0	Approximately 3.8
MGMF	2.4	Approximately 4.5	3.5 mm<sup>2</sup>/ AWG12 600 VAC
MFDL	MGMF	Three-phase 200	2.9	Approximately 5.0	50	DV0P3410	DV0P1450	3.5 mm<sup>2</sup>/ AWG12 600 VAC
MSMF MDMF MHMF	3.0	Approximately 5.2
MSMF MDMF MHMF	4.0	Approximately 6.5	100 A (3P+1a)
MGMF	4.4	Approximately 7.0
MSMF MDMF MHMF	5.0	Approximately 7.8
MGDL	MGMF	Three-phase 200	5.5	Approximately 8.5	60	HF3080C-SZA (recommended parts)	DV0P1450	DV0P1460 RJ8095 (recommended parts) T400-61D (recommended parts) <sup>* 5</sup>	100 A (3P+1a)	8.0mm<sup>2</sup>/ AWG 8 above 600 VAC	14mm<sup>2</sup>/ AWG 6 above 600 VAC	0.75mm<sup>2</sup>/ AWG 18 100 VAC +
MDMF	7.5	Approximately 11
MHMF
MHDL	MDMF	Three-phase 200	11.0	Approximately 15	125	HF3100C-SZA (recommended parts)	DV0P1450	150 A (3P+1a)	22mm<sup>2</sup>/ AWG 4 600 VAC +	22mm<sup>2</sup>/ AWG 4 above 600 VAC <sup>* 6</sup>
15.0	Approximately 20
22.0	Approximately 28	175	38mm<sup>2</sup>/ AWG 2+600 VAC

* 1 Single-phase/three-phase 200V common drive Please select peripheral equipment according to the power supply used. * 2 For the electromagnetic contactor with external dynamic braking resistor, please use the electromagnetic contactor with the same rated specification as the main circuit. * 3 The ground screw uses a pressing terminal, please use the same specification as the main circuit pressing terminal. * 4 The cable diameter for ground wire and the cable diameter for external dynamic brake resistance shall be the same or larger than the cable diameter for motor. * 5 In order to meet overseas standards, all must be used. * A terminal block is required for the connection of 6 22.0 kW motor cables. In order to correspond to the CSA standard, it is necessary to use a round terminal for a power line recognized by the CSA standard. ● Wiring circuit breakers, electromagnetic contactors related When complying with the European EU directive, be sure to connect IEC specifications and UL certified (LISTED, marked) wiring circuit breakers between the power supply and the noise filter. When the short-circuit current of the power supply used is lower than the maximum output voltage of the product, please set it below the stack current 5000 Arms. When the short-circuit current of the power supply exceeds the current, please set the current limiting device (current limiting insurance or current limiting brake, transformer, etc.) to develop the short-circuit current before use. <Note> · Please select the wiring breaker and noise filter that match the power capacity (considering the load condition). ● Terminal block and protective grounding terminal · Please use copper conductor cable with rated temperature above 75 ℃ for wiring. ・Please use the special connector supplied with Type A to Type E. At this time, the length of the wire should be kept 8 mm ~ 9mm. ■ Driver: List of tightening torque (terminal block · terminal cover fixing screw)

Drive	Terminal block screws	Terminal cover fixing screw
Type	Terminal name	Nominal	Tightening torque (N · m)<sup> Note 1)</sup>	Nominal	Tightening torque (N · m)<sup> Note 1)</sup>
MFDL	L1, L2, L3, L1C, L2C, P, RB, B, N, U, V, W	M5	1.0~1.7	M3	0.19~0.21
MGDL	L1C, L2C	M4	0.7~1.0	M3	0.19~0.21
L1, L2, L3, P, B, N, U, V, W	M5	2.0~2.4
MHDL	L1C, L2C, DB1, DB2	M4	0.7~1.0	M5	2.0~2.5
L1, L2, L3, P, B, N, U, V, W	M6	2.2~2.5	M3	0.19~0.21

■ Driver: Tightening torque list (grounding screw · connector connected to upper controller [X4])

Drive Form Factor Symbol	Grounding screw	Connector to upper controller (X4)
Nominal	Tightening torque (N · m)<sup> Note 1)</sup>	Nominal	Tightening torque (N · m)<sup> Note 1)</sup>
MADL, MBDL, MCDL, MDDL,MEDL	M4	1.0~1.2	M2.6	0.2±0.05
MFDL	M5	1.8~2.0
MGDL	M5	1.8~2.0
MHDL	M6	2.4~2.6

■ Motor: tightening torque

Motor	Ground screw, UVW terminal	Terminal block cover mounting bolts
Nominal	Tightening torque (N · m)<sup> Note 1)</sup>	Nominal	Tightening torque (N · m)<sup> Note 1)</sup>
MDMF 22.0 kW	M8	12.0	M5	4.4

Note 1) <Caution> ・If the maximum tightening torque is exceeded, it may cause damage. ・Do not switch on the power supply when the screws of the terminal block are loose. ・If the power is applied while the screw is loose, it may cause smoke or fire. <Requirements> · Please check whether the tightening torque is loose regularly according to the frequency of once a year.

Plain language sourcing guide for Panasonic MINAS A6S Series Servo Drives

Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.

Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.

Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.

If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.

Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.

Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.

Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.

Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.

For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.

For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.

For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.

Visit Store

Brand Name:	Panasonic	Certification:	ISO9001, CE
Place of Origin:	China	Condition:	New
Warranty:	1 year	Customized sourcing:	available

What are your strengths?

Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.

What is your estimated delivery time?

Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.

What are your primary product offerings?

Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.

How can I get in touch with you?

Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.

What are your payment terms?

Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.

Feel free to Ask questions

Replacement support

Panasonic MINAS A6S Series Servo Drives

Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.

For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.

Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.

Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.

Confirm the complete model number and any suffix printed on the nameplate.
Share quantity, destination country, preferred shipping method, and target delivery date.
Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.

Useful details for a faster quote

Complete model and part number
Required quantity and target delivery date
Nameplate photos, drawings, or old purchase records
Voltage, signal range, dimensions, or accessory needs

Send details

Model matching

We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.

Quality and delivery

Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.

Stock alternatives

For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.

Panasonic MINAS A6S Series Servo Drives verification notes

Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.

LEHIY reviews product name, part number, series, label information, and application requirements before shipment.

If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.

For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
