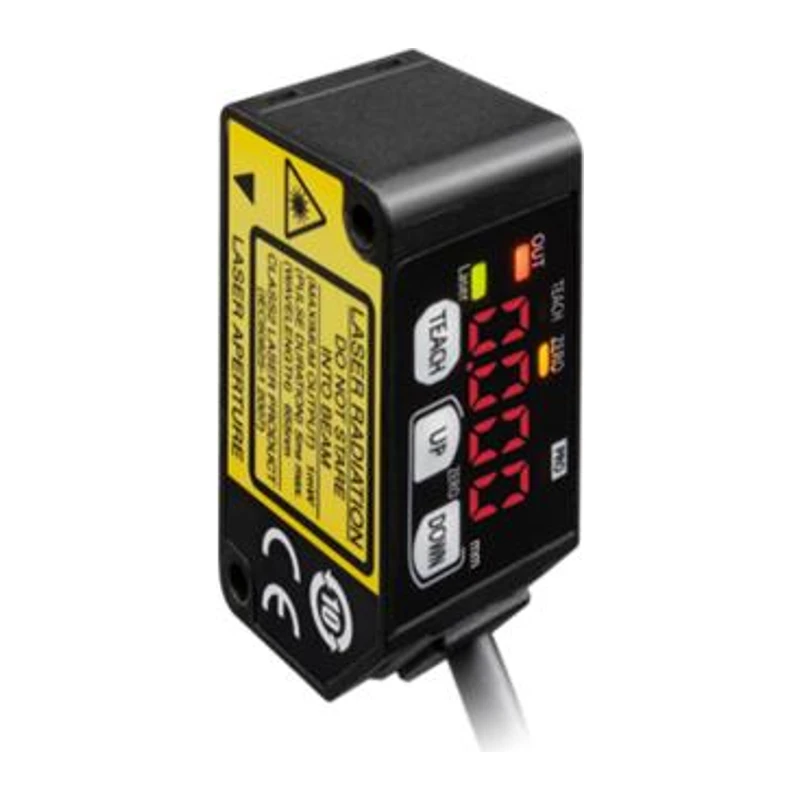

Panasonic laser displacement sensor, HG-C1400
LEHIY item code: LH-0210
Quick buying check
This page helps you check Panasonic laser displacement sensor, HG-C1400 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Introduction Overview
Displacement sensors, also known as linear sensors, are linear devices that utilize metal induction. Their function is to convert various measured physical quantities into electrical quantities. In production processes, displacement measurement is generally divided into two types: measuring physical dimensions and measuring mechanical displacement. Based on the different forms of transformation of the measured variable, displacement sensors can be divided into analog and digital types. |
Technical Specifications
| Item | Content |
|---|---|
| Model | HG-C1400 |
| Suitable Specifications | EMC Compliance Directive, FDA Rules |
| Measuring Center Distance | 400mm |
| Measuring Range | ±200mm |
| Repeatability | 300μm (measurement distance 200～400mm)800μm (measurement distance 400～600mm)|
| Linearity | ±0.2%F.S. (measurement distance 200～400mm) ±0.3%F.S. (measurement distance 400～600mm) |
| Temperature Characteristics | 0.03% F.S./℃ |
| Light Source | Red Semiconductor Laser, Class 2 [JIS/IEC/GB/FDA (Note)] Maximum Output: 1mW Emitted Peak Wavelength: 655nm (Note): According to FDA Laser Notice No. 50, Subject to FDA standards. |
| Beam Diameter | Approximately ø500μm (Note): Measurement center distance. Defined as 1/e<sup>2</sup> (approximately 13.5%) of the center light intensity. If there is light leakage outside the defined area, and the detection point range has strong reflections higher than the detection point itself, the measurement results may be affected. |
| Power Supply Voltage | 12～24V DC±10% Pulsation P-P less than 10% |
| Current Consumption | Less than 40mA (at 24V DC power supply) Less than 65mA (at 12V DC power supply) (Note): Specification changes began with products manufactured in June 2016. Products manufactured before May 2016: 40mA or less (at 24V DC power supply), 60mA or less (at 12V DC power supply) |
| Control Output | NPN Open Collector Transistor ・Maximum Inflow Current: 50mA ・Applied Voltage: 30V DC or less (between -0V and control output) ・Residual Voltage: 1.5V or less (at 50mA inflow current) ・Leakage Current: 0.1mA or less |
| Control Output: Output Operation | ON when light is received/ON when no light is received - Switchable |
| Control Output: Short Circuit Protection | Equipped with (Automatic Recovery) |
| Response Time | 1.5ms/5ms/10ms Switchable |
| External Input | NPN Contactless Input ・Input Conditions Invalid: +8～+V DC or open circuit Valid: 0～+1.2V DC ・Input Impedance: Approx. 10kΩ |
| Contamination Level | 2 |
| Usage Elevation | Below 2,000m |
| Environmental Resistance: Protective Construction | IP67(IEC) |
| Ambient Resistance: Operating Temperature | -10～+45℃ (Avoid condensation and freezing), Storage: -20～+60℃ |
| Ambient Resistance: Operating Humidity | 35%RH～85%RH, Storage: 35%RH～85%RH |
| Ambient Resistance: Operating Illuminance | Incandescent Lamp: Illuminance of the illuminated surface below 3,000 lx |
| Ambient Resistance: Vibration Resistance | Durability 10～55Hz (1 minute cycle), Dual Amplitude 1.5mm, XYZ directions, 2 hours |
| Environmental Resistance: Impact Resistant | Durability 500m/s<sup>2</sup> (approx. 50G) 3 times in each of the XYZ directions |
| Cable | 0.2mm<sup>2</sup> 5-core composite cable, 2m long |
| Cable Extension | 0.3mm<sup>2</sup> and above cable, up to 10m in total length |
| Material | Carrier Shell: Die-cast Aluminum Front Cover: Acrylic |
Technical Specifications
| Specification | Value |
|---|---|
| Category | Displacement Sensor |
| Brand | Panasonic |
Plain language sourcing guide for Panasonic laser displacement sensor, HG-C1400
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Panasonic | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
