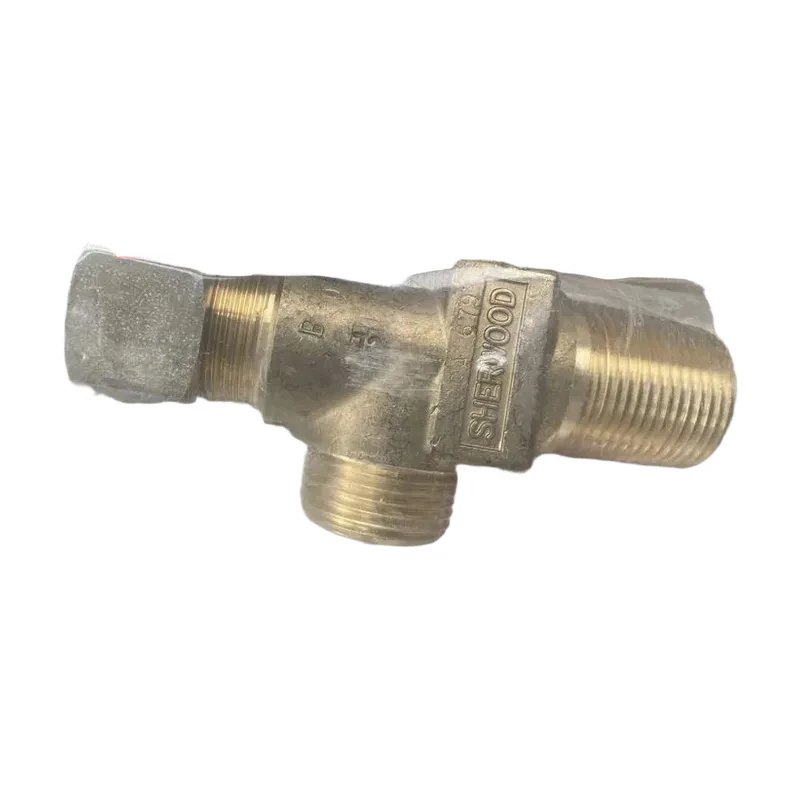

Sherwood gas cylinder valve 1214Y3-SB CGA670
LEHIY item code: LH-OTHER-0080
Quick buying check
This page helps you check Sherwood gas cylinder valve 1214Y3-SB CGA670 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Our company sources Sherwood 1214Y3-SB CGA670 cylinder valves directly from the manufacturer, ensuring authenticity. The Sherwood 1214 series features an aluminum-silicon bronze valve body, providing resistance to a variety of corrosive gases.
Sherwood 1214 series valves are designed for applications involving chlorine, chlorinated liquids, corrosive gases, pesticides and fumigants, corrosion inhibitors, and bleach.
Key features of the Sherwood 1214Y3-SB cylinder valve include: ---Aluminum-silicon bronze valve body for resistance to various corrosive gases---Single-piece Monel stem provides highly durable positive shut-off force in corrosive gas applications---PTFE packing facilitates easy operation while providing a durable leak-proof stem seal---Impregnated.
tube assembly with optional threaded inlet threads---Standard CGA connection as well as international inlet and outlet connections---Equipped with a combined pressure-reducing device with a fuze metal gasket.
Sherwood industrial gas valves can operate at pressures up to 3500 psi. American Sherwood gas cylinder valves, also known as steel cylinder valves, are widely used in oil and natural gas transportation equipment.
They are designed for applications with very strict high-pressure requirements, as well as high levels of airtightness, safety, and explosion-proof performance.
Sherwood industrial gas valves are used in cylinders containing inert gases, oxidizers, and flammable materials, offering the following advantages: * Automated assembly and testing processes ensure superior quality * 100% leak testing * Heavy-duty forged brass valve body for durability and high pressure resistance * Precision-machined internal components.
meet stringent valve performance standards * Pressure reducing valve (PRD) is a combined valve plug design with excellent fluid characteristics, ensuring proper assembly and interference resistance * Metal-to-metal seal under the valve cover thread prevents pressure buildup within the valve body top thread * Direct-drive stem design.
with optimized O-ring (GSV) or double O-ring (GSHV) seals reduces friction and operates at very low torque levels * Inlet and outlet thread configurations are available for a wide range of customers, countries, and code specifications * Threads for immersion pipes as required.
Sherwood Valves Maximum Operating Pressure: 3000 PSIG / 200 BAR Temperature Range: -50-120°F / -45-49°C Leakage Rate (2000 PSIG): 1 x 10⁻⁵ atm cc/sec Closing torque (2000 PSIG): 15 ft.lbs.
Ordering information for Sherwood 1214Y series cylinder valves is as follows: Sherwood 1214Y26B 3/4"-14 NGT330None 1/4" Inlet Tap; Cap and Chain Oxygen Cleaned 0.88; 1214Y42 3/4"-14 NGT330 3360 PSIG, CG-5 Cap and Chain 0.88; 1214Y9R-330PxM 3/4"-14 NGT330CG-4, x.
= Burst Pressure Rating 0.88; 1214Y24 3/4"-14 NGT330None 1/4" Inlet Tap 0.88; 1214Y41B 3/4"-14 NGT330None Secondary Seal Cap, Oxygen Cleaned, Outlet Cap and Chain 0.88.
1214F63/4"-14 NGT660 None 0.88; 1214Y20T3/4"-14 NGT660 3360 PSIG, CG-4 1/4" Inlet Tap 1.482; 1214Y443/4"-14 NGT679 None Secondary Seal Cap, Oxygen Cleaned 1.885; 1214Y3-SB3/4"-14 NGT670/679 None Oxygen Cleaned 1.885.
Our company has a strong advantage in supplying Sherwood cylinder valves 1214Y3-SB CGA670. We source directly from the manufacturer, ensuring authenticity.
For product details, please contact our sales department.
Plain language sourcing guide for Sherwood gas cylinder valve 1214Y3-SB CGA670
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
