DYNISCO pressure sensors are available at discounted prices from the official Danisco in the US.
LEHIY item code: LH-OTHER-0075
Quick buying check
This page helps you check DYNISCO pressure sensors are available at discounted prices from the official Danisco in the US. before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Discounted DYNISCO pressure sensors are available from authorized distributors in the US. The PT460E standard model is a rigid rod melt pressure sensor. PT460E pressure sensor is a standard type in the polymerization industry, offering general-purpose melt pressure measurement, easy installation, and good accuracy, repeatability, and reliability. Features:
- Accuracy better than ±0.5%FS
- 3.33 mV/V full-scale output
- Internal 80% calibration
- Stainless steel construction
- Pressure range from 0 - 500 PSI to 0 - 30,000 PSI
- Good stability and repeatability
- CE certified

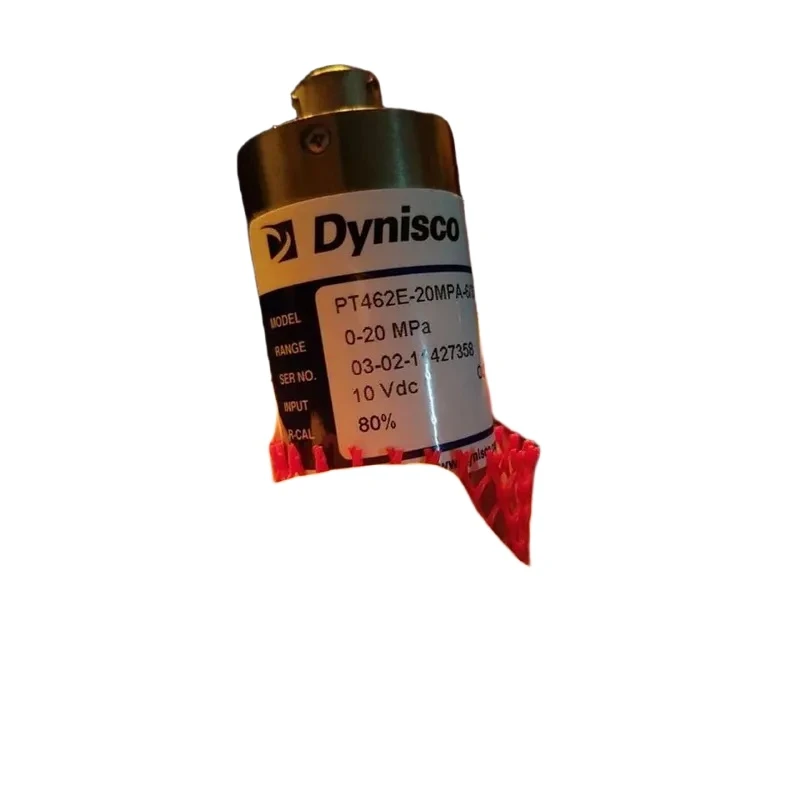

- PT462E Standard Type, Melt Pressure Sensor with Flexible Tube The PT462E has an 18" flexible tube between the rigid tube and the strain gauge housing, which increases thermal isolation. It has good repeatability and accuracy, and is economical. It is widely used by OEM manufacturers. Features:
- Accuracy better than ±0.5%FS
- 3.33 mV/V full-scale output
- Internal 80% calibration
- Stainless steel construction
- Pressure range from 0 - 500 PSI to 0 - 30,000 PSI
- Flexible tube increases thermal isolation and facilitates installation
- CE certified
- PT463E The standard type, DYNISCO pressure sensor TPT463E with thermocouple fusion element integrates the PT462E with a detachable J-type thermocouple, allowing simultaneous measurement of pressure and temperature at the same point.
- 3.33 mV/V full-scale output
- Internal 80% calibration
- Pressure range from 0 - 500 psi to 0 - 30,000 psi
- CE certified with flexible tube
- RTD and other thermocouples optional. The PT490 is a standard type, rigid rod fusion element DYNISCO pressure sensor. sensor is standard in the polymerization industry. This model is a general-purpose melt pressure measurement sensor, easy to install, and offers good accuracy, repeatability, and reliability. Features:
- Accuracy better than 0.5%FS
- 3.33 mV/V full-scale output
- Internal 80% calibration
- Pressure range from 0 - 500 psi to 0 - 30,000 psi
- CE certified with flexible tube
- Optional Good discounts available.
- PT492 Standard Type, with Flexible Tube Melt: The DYNISCO PT492 pressure sensor features an 18" flexible tube between the rigid tube and the strain gauge housing, increasing thermal isolation. It offers good repeatability and accuracy, and is economical. It is widely used by OEMs. Features:
- Accuracy better than 0.5%FS
- 3.33 mV/V full-scale output
- Internal 80% calibration
- Stainless steel construction
- Pressure range from 0 - 500 PSI to 0 - 30,000 PSI
- Flexible tubing for increased thermal isolation and easy installation
- CE certified
- PT493 Standard Type with Thermocouple Fusion: The DYNISCO TPT493 pressure sensor integrates the PT492 with a detachable J-type thermocouple, allowing simultaneous measurement of pressure and temperature at the same point. It also features a flexible tubing for easy installation. Features:
- Accuracy better than 0.5%
- Measures pressure and temperature at the same point
- Standard detachable J-type thermocouple
- 3.33 mV/V full-scale output
- Internal 80% calibration
- Pressure range from 0 - 500 psi to 0 - 30,000 psi
- CE certified with flexible tube
- RTD and other thermocouples optional
- PT460XL Thick Diaphragm Type, Rigid Rod Melt DYNISCO Pressure Sensor PT460XL features a thick Inconel diaphragm and top thermal compensation*. It comes with a 6-inch long rigid rod, and its diaphragm design is suitable for environments with high abrasion or harsh media. Features:
- Accuracy better than ±0.5%FS
- Inconel thick diaphragm
- Thermal stability*
- Good abrasion resistance
- 80% internal calibration
- PT462XL thick diaphragm type with flexible tube melt DYNISCO pressure sensor PT462XL is suitable for environments with high abrasion or rough media. Features include a high-performance sensing element, thick Inconel diaphragm, and top thermal compensation*. Furthermore, the 18" flexible tube enhances the protection of the strain gauge circuit.
- PT463XL Thick diaphragm type, with thermocouple fusion DYNISCO pressure sensor TPT463XL features a self-contained sensing element, thick Inconel diaphragm, and top thermal compensation*. TPT463XL includes a detachable J-type thermocouple, allowing simultaneous measurement of pressure and temperature at the same measurement point. Features:
- Accuracy better than ±0.5%FS
- Inconel thick diaphragm
- Thermal stability*
- Good wear resistance
- Internal 80% calibration
- With J-type thermocouple
- PT420A High-precision type, rigid rod fusion DYNISCO pressure sensor PT420A It is a rigid rod structure designed for applications requiring high precision and repeatability, making it a robust and stable melt pressure sensor. Features:
- Accuracy better than ±0.25%FS
- 3.33 mV/V full-scale output
- 80% internal calibration
- Stainless steel construction
- Pressure range from 0 - 500 PSI to 0 - 30,000 PSI
- Excellent stability and repeatability
- CE certified.
Plain language sourcing guide for DYNISCO pressure sensors are available at discounted prices from the official Danisco in the US.
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
