Prominent pH meter with PHER 112 SE pH electrode available now.

The Prominent pH meter PHER 112 SE* is in stock. It features a standard PG13.5 threaded SN6 connector. The SE designation indicates the SN6 connector.

Measurement range: 1-12 pH; Temperature: 0-80℃; Pressure resistance: 6.0 BAR; Measurement medium conductivity: 50 μS/cm; Membrane/rod: PTFE/glass; Connection: PG13.5. Features include contamination resistance, long service life, and high sensitivity.

ProMinent Dosiertechnik GmbH is a conglomerate with 55 subsidiaries and over 60 authorized local agents across six continents, headquartered in Heidelberg, Germany.

Its main business activities focus on: precise metering, quantitative addition, and real-time control of various chemicals in industrial processes; research, development, production, and engineering implementation of various water treatment systems. ProMinent's business began with the research, development, and production of electromagnetically driven precision metering pumps.

After half a century of development, Prominent has become one of the world's leading manufacturers of metering pumps, and is also at the forefront of global metering pump technology.

With the expansion of its business, Prominent has further explored new growth opportunities in the research, development, and manufacturing of complete sets, specialized, and dosing systems, as well as related measurement and control devices, based on its metering pump technology. pH range. 1 … 12 Temperature 0 … 80 °C Max.

pressure 6.0 bar Min.

conductivity 50 μS/cm Electrolyte with KCI supply (salt rings in the reference electrolyte) Membrane PTFE ring diaphragm Sensor shaft Glass Installation length 120 ± 3 mm Thread PG 13,5 Order no.

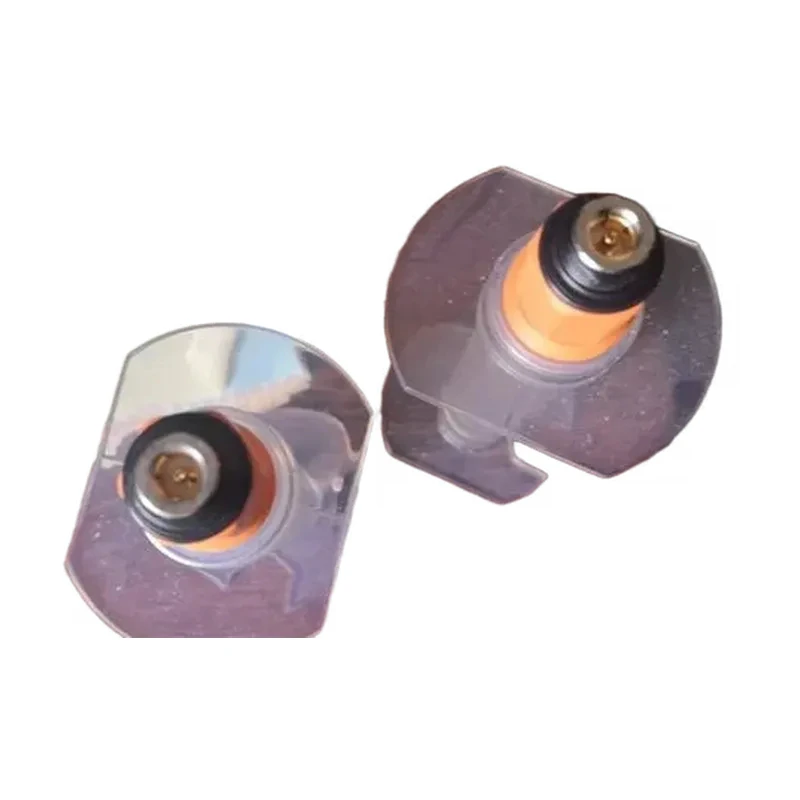

PHER 112 SE 1001586 Prominent pH meter German Prominent pH electrode PHER 112 SE*In stock Prominent pH electrode PHER112SE New and old model comparison pictures: yellow text is before 2016, and black text is after. 2016.

Correct use of Prominent pH meter electrode, Prominent pH sensor posture: ⑴ There should be no air bubbles at the front of the bulb.

If there are air bubbles, shake them off forcefully.

• After removing the Prominent pH electrode from the immersion bottle, it should be shaken and dried in deionized water. Do not wipe the bulb with a paper towel, otherwise the electrostatic charge will transfer to the glass membrane, prolonging the potential stabilization time. A better method is to rinse the electrode with the test solution.
• After inserting the Prominent pH composite electrode into the test solution, stir and shake it a few times before letting it stand still. This will speed up the electrode response. Especially when using a plastic-cased pH composite electrode, the stirring and shaking should be more vigorous because there is a small cavity between the bulb and the plastic shell. Sometimes, when the electrode is immersed in the solution, the gas in the cavity cannot be expelled in time, resulting in air bubbles, which can cause poor contact between the bulb or liquid junction and the solution. Therefore, vigorous stirring and shaking are necessary to remove air bubbles.
• After testing in viscos samples, the electrode must be rinsed repeatedly with deionized water to remove the sample adhering to the glass membrane. solvents first, then wash away the solvent with water, and then immerse it in the immersion solution for activation.
• Avoid contact with strong alkalis or corrosive solutions. If testing with such solutions, minimize the immersion time of the ProMinter pH meter and clean it thoroughly after use.
• Avoid use in dehydrating media such as anhydrous ethanol and concentrated sulfuric acid, as these will damage the hydrated gel layer on the bulb surface.
• The outer shell material of the plastic-cased pH electrode composite is polycarbonate plastic (PC). PC plastic can dissolve in some solvents, such as carbon tetrachloride and trichloroethylene. If the test contains these solvents, it will damage the ProMinter electrode shell. In this case, a glass-cased pH composite electrode should be used instead.
