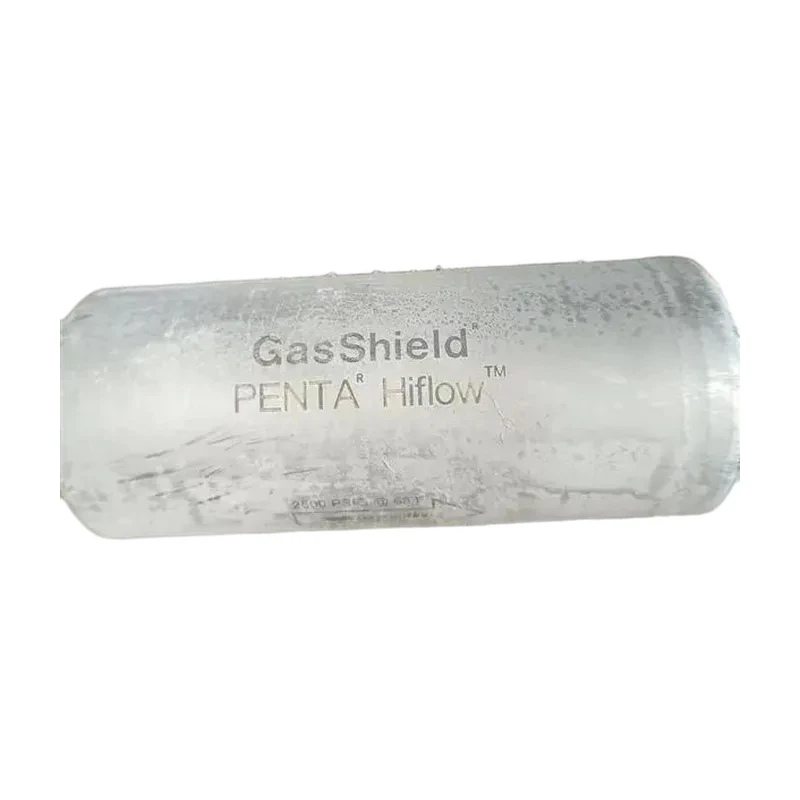

MOTT filter GasShield PENTA GSP515H1FF
LEHIY item code: LH-OTHER-0057
Quick buying check
This page helps you check MOTT filter GasShield PENTA GSP515H1FF before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
We are an authorized distributor of genuine MOTT filters, specifically the GasShield PENTA GSP515H1FF33. These are original, first-hand products from the USA, and all necessary documentation and sourcing documents are provided. Mott Filter Introduction: Mott GasShield PENTA point-of-use filters feature high flow rates and low pressure drop.
The extremely low pressure drop is comparable to that of ultra-thin Teflon-PTFE membranes, and they also possess the advantages of Mott's proprietary porous metal construction, high strength, high particle filtration efficiency, and ultra-long service life. Example: Mott filter GSP515H1FF33, CPN: 6812048, 2500 PSIG (172.4 BAR).
Field installation application case photos: Our company is an authorized distributor of Mott filters GSP515H1FF33, 6812048. Mott high-flow gas filters, GasShield PENTA Hiflow genuine products. Introduction to the Mott high-flow gas filter series: Mott GSP11215H1 high-flow gas filter GSP11215H1FF33 GSP11215H1TT33.
Main technical specifications: Particle filtration size: ≥0.0015 μm (1.5nm).
Particle filtration efficiency: ≥99.9999999% (9-LRV) at nominal flow rate (confirmed according to SEMI F38-0699 test specifications, 0.08μm MPPS (most easily penetrating particle size) filtration efficiency) Nominal flow rate: 400 slpm Material: Sintered porous filter material: Nickel (Penta Nickel) Filter housing: 316L SS VAR (second-refined.
stainless steel) Electropolished: 5 Ra, EP (Electro-polished) Operating conditions Maximum operating pressure: 2500 psig (172.5 barg) Maximum operating temperature: 450°C (for Inert Gas) Maximum withstand pressure differential: 500 psid (34.5 bar) Mott GSP11215H3 High flow rate gas filter GSP11215H3FF33 GSP11215H3TT33 Key Technical Specifications: Particle Size:.
≥0.0015 μm (1.5nm) Particle Filtration Efficiency: ≥99.9999999% (9-LRV) at nominal flow rate (confirmed according to SEMI F38-0699 test specifications, 0.08μm MPPS (most easily penetrating particle size) filtration efficiency) Nominal Flow Rate: 600 slpm Material: Sintered porous filter material: Nickel (Penta Nickel) Filter Housing:.
316L SS VAR (second-refined stainless steel) Electropolished: 5 Ra, EP (Electro-polished) Operating Conditions: Maximum Operating Pressure: 2500 psig (172.5 barg) Maximum Operating Temperature: 450°C (for Inert Gas) Maximum Withstand Pressure Drop: 500 psid (34.5 bar) Mott GSP1500 High Flow Gas Filter GSP1500FF33 GSP1500TT33 Nominal Flow.
Rate: 1500 slpm Material Sintered Porous Filter Material: Nickel (Penta Nickel) Filter Housing: 316L SS VAR (Second-Refined Stainless Steel) Electropolished: 5 Ra, EP (Electro-polished) Operating Conditions Maximum Operating Pressure: 650 psig (44.8 barg) Maximum Operating Temperature: 460°C (for Inert Gas) Maximum Withstand Pressure Drop: 250 psid.
(17.2 bar) Mott DEF515H High Flow Gas Filter DEF515HFF33 Main Technical Specifications Particle Filtration Size: ≥0.0015 μm (1.5nm) Particle Filtration Efficiency: ≥99.9999999% (9-LRV) at nominal flow rate (confirmed according to SEMI F38-0699 test specification, 0.08μm MPPS (most easily penetrating particle size) filtration.
efficiency) Nominal Flow Rate: 650 slpm Material Sintered Porous Filter Material: 316L SS Short Fiber Filter Housing: 316L SS VAR (Second-Refined Stainless Steel) Electropolished: 5 Ra, EP (Electro-polished) Operating Conditions Maximum Operating Pressure: 2500 psig (172.5 barg) Maximum Operating Temperature: 450°C (for Inert Gas) Maximum Withstand.
Pressure Drop: 500 psid (34.5 bar) Mott DEF2000 High Flow Gas Filter DEF2000FF33 DEF200025A5S Main Technical Specifications: Particle Filtration Size: ≥0.0015 μm (1.5nm) Particle Filtration Efficiency: ≥99.9999999% (9-LRV) at nominal flow rate (confirmed according to SEMI F38-0699 test specifications, 0.08μm MPPS (most.
easily penetrating particle size) Filtration efficiency) Nominal Flow Rate: 2000 slpm Material: Sintered porous filter material: 316L SS Short fiber filter housing: 316L SS VAR (second-refined stainless steel) Electropolished: 5 Ra, EP (Electro-polished) Operating Conditions: Maximum Operating Pressure: 2500 psig (172.5 barg) Maximum Operating Temperature: 450°C.
(for Inert Gas) Maximum Withstand Pressure Drop: 500 Mott GasShield PENTA high-flow-rate filter (PSID, 34.5 bar) offers high flow rate and low pressure drop with a 9-LRV particle filtration efficiency.
At maximum flow rate, it achieves >99.9999999% particle filtration efficiency (all particle sizes 0.0015µm and above), with confirmed filtration efficiency at 0.08µm MPPS (the most easily penetrating particle size).
Unparalleled strength – Mott porous metal filters withstand temperatures up to 450°C and pressures up to 3750psig, suitable for extreme conditions.
No material transfer – Mott porous metal materials are bonded by high-pressure, high-temperature solid-state diffusion welding. The strong molecular-level adhesion between materials makes Mott porous metal materials extremely robust, indestructible even under extreme conditions, eliminating the possibility of material breakage and particle shedding.
Distributor of MOTT filters (GasShield PENTA GSP515H1FF33).
Features of the MOTT filter: Robust and durable high-quality construction; 5 Ra inner surface electropolished; Nickel-plated filter media manufactured using a fully sintered process, without any other binders or additives; Meets >9-LRV particle filtration efficiency; Minimum pressure drop at maximum flow rate; Minimized filter media surface area.
design to ensure near-zero out-gassing; Fully welded structure between filter media and filter housing; 316L VAR stainless steel housing, EP electropolished; Manufactured in a Class 100 cleanroom, pretreated with high-purity nitrogen, and fully clean packaging.
The Mott GasShield Defender high-flow-rate filter truly meets the 9-LRV particle filtration efficiency standard with a 316L stainless steel porous metal filter medium; at maximum flow rate, it achieves a true 9-LRV 0.0015µm particle filtration efficiency (@ nominal flow rate) and a confirmed.
0.08µm MPPS (most easily penetrating point particle size) filtration efficiency; maximum operating temperature: 450°C (inert gas); maximum withstand pressure: 2500 PSIG (206.8 Bar) @ 52°C; maximum withstand differential pressure: 1000 PSIG (68.9 Bar) @ 52°C; 316L VAR stainless steel housing; 5Ra electropolished inner.
surface; leak rate: 1 x 10-9 atm cc/sec helium; particle shedding: < 1 particle/Ft3 particle; THC (total organic carbon) volatilization below the instrument detection limit; <10ppb H2O.
(1-hour, room temperature, low flow purging); Manufactured in a Class 100 cleanroom, packaged with ultra-high purity.
Plain language sourcing guide for MOTT filter GasShield PENTA GSP515H1FF
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
