ElektroPhysik MiniTest2500 Coating Thickness Gauge EPK
LEHIY item code: LH-OTHER-0056
Quick buying check
This page helps you check ElektroPhysik MiniTest2500 Coating Thickness Gauge EPK before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

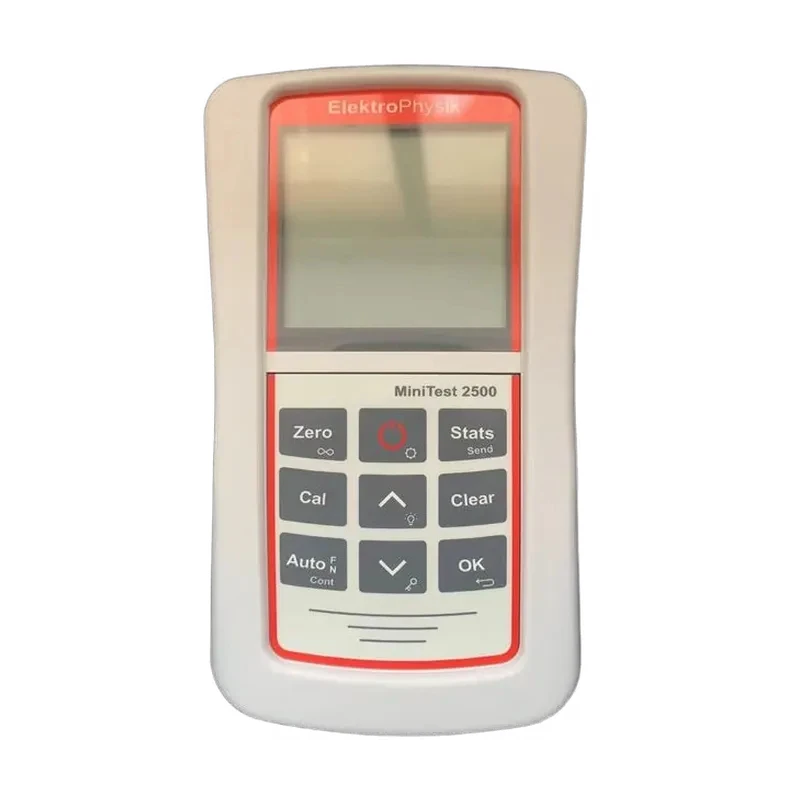

ElektroPhysik MiniTest2500 Coating Thickness Gauge, EPK thickness gauge, original factory source, genuine product guaranteed. Applications of the German EPK MiniTest2500 coating thickness gauge: The German EPK MiniTest2500 coating thickness gauge features a contrast display and backlit keyboard, and a rugged housing with IP65 protection.
The German EPK MiniTest2500 coating thickness gauge uses magnetic induction or eddy current principles for non-destructive measurement. This EPK manufacturer distributes the EPK MiniTest2500 coating thickness gauge, suitable for applications requiring high-precision coating thickness measurement.
Including: Industrial corrosion protection, design fields, or everyday decorative coatings: – Manufacturers and users of all coating product types – Auditors and inspectors – Electroplating and paint shops – Chemical industry – Automotive manufacturing, shipbuilding, aerospace, factory, and mechanical engineering.
Introduction: The EPK MiniTest coating thickness gauge is not only suitable for laboratory use but also for industrial applications due to its robust and durable protection. The Minitest 2500 features a USB output for connection to laptops and desktops.
All main unit functions can be triggered by pressing a single key on the backlit keypad.

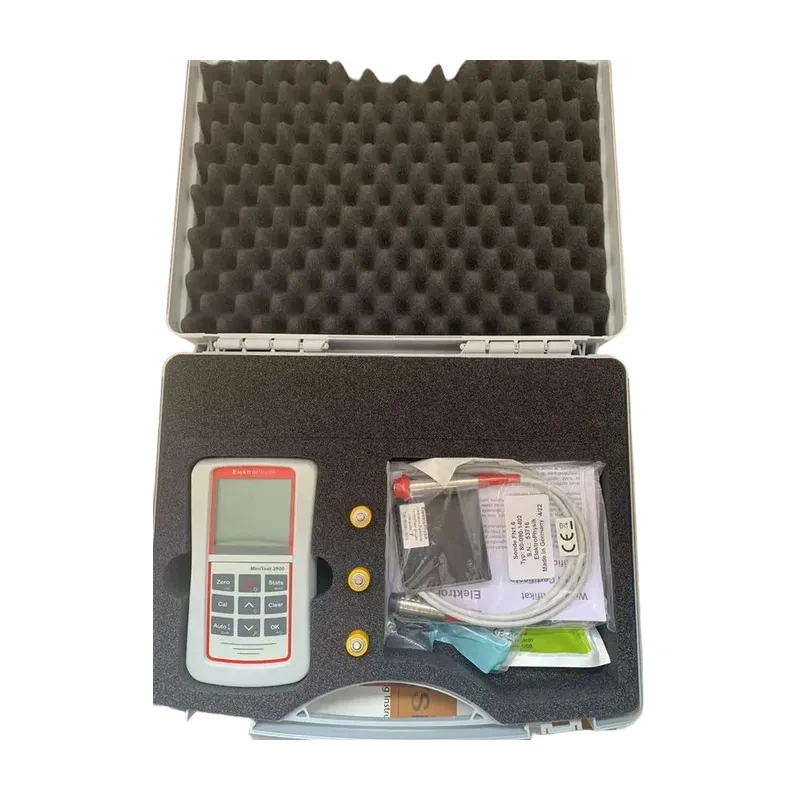

A large, ergonomically designed, backlit display enhances user comfort. The MiniTest 2500 series coating thickness gauges offer a variety of measuring probes, enabling them to handle standard applications as well as more complex measurement tasks.
The application range of the EPK MiniTest coating thickness gauge is determined by the probe connected to the main unit: The EPK F-type probe operates on the principle of magnetic induction and can measure non-magnetic coatings such as paint, enamel, rubber, aluminum, chromium, copper, and zinc on steel.
(including steel alloys and hardened magnets).
The EPK N-type probe operates on the principle of eddy currents and measures insulating coatings such as paint, anodizing, and ceramics applied to all non-ferrous metals (such as aluminum, copper, zinc die castings, brass, etc., including austenitic nylon steel).
The EPK FN-type probe combines both principles and automatically switches to the correct measuring principle to measure steel or non-ferrous metal substrates by identifying the substrate beneath the coating.
Technical Specifications of the German EPK MiniTest2500 Coating Thickness Gauge: Model: Minitest2500 Data Storage - Total number of storable readings - Z Batch size: 2,000,000 1 Statistical Functions (per batch): kvar, n, max min.
Calibration: Factory calibration, zero point and up to four calibration points Measurement Units: um, mm, cm, mils, inch Interface: USB Power Supply: 3 x AA (LR06) batteries, USB Operating time per battery replacement: approximately 150 hours (without backlight) Specifications and Standards: DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882;.
ISO 19840; ASTM B 244, B 499, D 7091, E376 Display: 53 x 46 mm, backlit Operating Temperature/Storage Temperature: –10 °C -60 °C / -20 °C -70 °C Dimensions/Weight: 153 mm x 89 mm x 36 mm / 320 g (instrument includes battery), rubber protective sleeve: 90 g.
Protection Rating: IP 65 - Probe Parameters: Probe Model: FN 1.6 FN 1.6/90 F 05 F 3 Applications:.
- Non-magnetic coatings on steel and insulating coatings on non-ferrous metals.
- Versatile for standard applications.
- Also available: F1.6 version for measurements on magnetic substrates only, or N 1.6 version for measurements on non-ferrous metals only.
- Non-magnetic coatings on steel and insulating coatings on non-ferrous metals. N1.6/90 version for measurements on non-ferrous metals only.
- Thin non-ferrous metal, oxide, or paint coatings on small steel workpieces.
- Higher accuracy for thin coatings.
- Non-magnetic coatings, thick coatings and enamel coatings on steel. Measurement range: 0-1600µm 0-1600µm 0-500µm 0-3000µm Low-end resolution: 0.1µm 0.1µm 0.1µm 0.2µm Guaranteed tolerance (reading): ±(1%+1µm)* ±(1%+1µm)* ±(1%+0.7µm)* ±(1%+1µm)* Minimum radius of curvature (convex/concave): 1.5mm convex/10mm concave plane and convex/6mm concave 0.75mm convex/5mm concave 1.5mm convex/10mm concave Minimum measurement area: Ø5mm Ø5mm Ø3mm Ø5mm Minimum substrate thickness: F0.5mm/N50µm F0.5mm/N50µm 0.1mm 0.5mm Probe model N 02 N 08.Cr F 10 Applications:
- Solutions for thin coatings.
- Insulating layers on non-ferrous metals such as varnish, enamel, or anodized layers, with high measurement resolution (0.1 μm) and a limited tracking force of only 25g. A special version for measuring chromium plating layers with a maximum thickness of 80µm on copper substrates, with a minimum substrate thickness of 100µm. For thick coatings similar to plastics in tank, pipe, and container construction. Measurement Range: 0-200µm, 0-80µm, 0-10000µm Low-end Resolution: 0.1µm, 0.1µm, 5µm Guaranteed Tolerance (for readings): ±(1%+0.5µm)* ±(1%+1µm/0.04mils)* ±(1%+10µm/0.4mils)* Minimum Radius of Curvature (convex/concave): 1mm convex/5mm concave 2.5mm convex/10mm concave 5mm convex/16mm concave Minimum Measurement Area: Ø2mm, Ø5mm, Ø20mm Minimum Substrate Thickness: 50µm, 100µm, 1mm Probe Model: F 20, F 50, N 10 Applications: Thick plastic, rubber, or concrete layers and corrosion-resistant layers in pipe construction. Thick corrosion-resistant layers and anti-bubbling layers. Used for measuring insulating layers such as rubber, plastic, and glass on non-ferrous metals. Measurement Range: 0-20000µm 0-50000µm 0-10000µm Low-end Resolution: 10µm 10µm 10µm Guaranteed Tolerance (for readings): ±(1%+20µm)* ±(3%+50µm)* ±(1%+25µm)* Minimum Radius of Curvature (convex/concave): 10mm convex/30mm concave 50mm convex/200mm concave 25mm convex/100mm concave Minimum Measurement Area: Ø40mm Ø300mm Ø50mm Minimum Substrate Thickness: 2mm 2mm 50µm Probe Model: N 20 N 100 F 2 HT Applications: Insulating coatings on non-ferrous metals, such as rubber, plastics, and glass. Thick insulating layers and composite materials on non-ferrous metals. 0-2000µm Low-end resolution: 10µm 100µm 0.2µm Guaranteed tolerances (of readings): ±(1%+50µm)* ±(1%+0.3µm)* ±(1%+1µm)* Minimum radius of curvature (convex/concave): 25mm convex/100mm concave 100mm convex/flat 1.5mm convex/10mm concave Minimum measurement area: Ø70mm Ø200mm Ø5mm Minimum substrate thickness: 50µm 50µm 0.5mm *(Measurement values are related to ElektroPhysik calibration foil) All illustrations are not to scale. All probes of the Minister series 1100-4100 of EPK thickness gauges are compatible with the Minister 2500. EPK manufacturer authorized distributor. MiniTest2500 Coating Thickness Gauge Standard Configuration: Minitest 2500 EPK Thickness Gauge Main Unit: – MiniTest 2500 – Plastic Carrying Case – Rubber Protective Cover – Operation Manual (German, English, French) – 3 x AA Batteries – USB Connection Cable Probes (Optional): – Selected Coating Thickness Gauge Probes – A Set of Calibration Standards, including Calibration Foil and Zero Standard Plate Other Optional Accessories: – Manufacturer's Certificate (DIN 55350 M) for Coating Thickness Gauge, Probes, and Calibration Standards – External Trigger for Transferring Readings to Memory – Precision Stand for Continuous Measurement and Measurement of Small Workpieces – Fast Charger for NiMH Rechargeable Batteries EPK Coating Thickness Gauge Minst 2500+FN1,6 Probe 6-8 Weeks, 40% Discount from Original Manufacturer, Direct Source from German EPK Manufacturer! Our company has a strong advantage in supplying ElektroPhysik MiniTest2500 Coating Thickness Gauges. For product details, please contact our sales department.
Plain language sourcing guide for ElektroPhysik MiniTest2500 Coating Thickness Gauge EPK
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
