KARL Ultrasonic Flaw Detector ECHOGRAPH1095 DG S/DAC/TCG
LEHIY item code: LH-OTHER-0048
Quick buying check
This page helps you check KARL Ultrasonic Flaw Detector ECHOGRAPH1095 DG S/DAC/TCG before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.

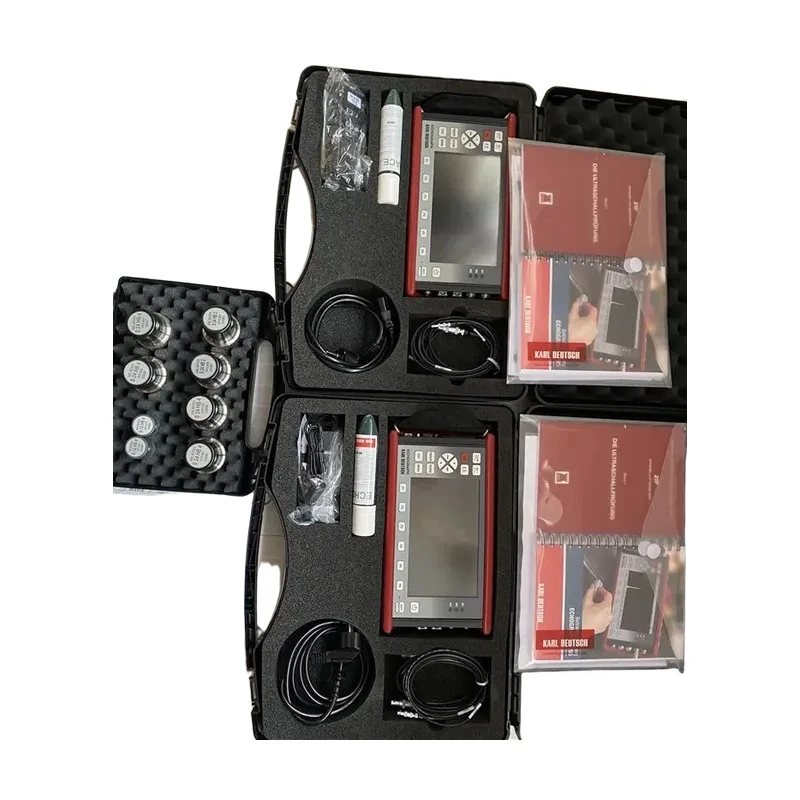

The KARL ECHOGRAPH 1095 ultrasonic flaw detector is an ideal manual ultrasonic flaw detection device.
Its advantages include robust mechanical and electronic components and configuration, a large, high-contrast, high-brightness display screen, a user-friendly menu, and a high protection rating, allowing it to operate well even in harsh or field environments.
Optional enhancements include strip mapping and TOFD (Time-of-Flight) functions, requiring the use of an encoder. When generating a line scan strip map, the position of the corresponding amplitude is determined by the displacement encoder and transmitted digitally to the device.
For weld inspection, the TOFD method (Time-of-Flight Ultrasonic Diffraction) can be used, where ultrasonic waves generate diffraction signals at the defect edges, thus determining the location and size of the defect.
Wall thickness measurements can be stored in the cells of a matrix grid using an array storage method.
The measured values in the matrix grid correspond to the measurement points on the inspected part. Furthermore, the measured values in the matrix grid are displayed in different colors, allowing for quick evaluation of the measurement results and error analysis.
An example use case is measuring the remaining thickness of the pipe wall after corrosion.
Operational instructions are provided during probe setup and equipment calibration, offering support for customers with limited experience: simply activate the operation assistant and follow the on-screen instructions. The KARL ECHOGRAPH 1095 ultrasonic testing instrument features a lightweight design (only 2 kg), suitable for handheld operation.
Dimensions (H x W x D): 138mm x 249mm x 52mm (without protective case), 149mm x 262mm x 54mm (with protective case). It boasts a large, high-contrast TFT color display (7-inch, 800 x 480 dot resolution) with automatic brightness adjustment and a wide viewing angle.
The KARL ECHOGRAPH 1095 DG S/DAC/TCG ultrasonic flaw detector features a simple and clear menu and interface, allowing for convenient and quick operation. Operators can calibrate the equipment or plot curves (AVG, DAC, TCG, AWS, JIS, etc.) simply by holding the test probe.
Three gates correspond to three LED indicators. Pulse repetition frequency: up to 5000 Hz.
Matrix storage includes TOFD B-scan line scan band plots.
The KARL ECHOGRAPH 1095 version (ECHOGRAPH 1095 Basic) (order number: 1095.020) ECHOGRAPH 1095 DAC/TCG/AWS (Order No.: 1095.030) ECHOGRAPH 1095 DGS/DAC/TCG (Order No.: 1095.040) ECHOGRAPH 1095 DGS/DAC/TCG/AWS/JIS (Order No.: 1095.050) More functional modules can be upgraded or added as.
needed.
The following functional modules are optional: Matrix storage & B-scan, L-scan & TOFD module (order number: 1910.502) Signal output module (order number: 1910.503) ECHOGRAPH 1095 Basic time base extended to 50 m (order number: 1910.504) German KARL ECHOGRAPH 1095 ultrasonic flaw detector kit: KARL ECHOGRAPH.
1095 DGS/DAC/TCG (order number: 1095.040) + KARL ultrasonic probe S 24 HB 2 Lemo 1, Part N.1412.008, probe S 12 HB 4 Lemo 00 Part N.1411.003, probe S 24 HB 4 Lemo 1, Part N.1412.003 + KARL cable UT cable, length.
2 m, 3.8 mm ø Lemo 1 plug/Lemo 1 plug Part N.1613.020, UT cable, length 2 m, 2.7 mm ø Lemo 00 plug/Lemo 1 plug Part N.1614.020.
More information and details in the color brochure: KARL Ultrasonic Tester ECHOGRAPH 1095. Related knowledge and attachments: UT basics, KARL probe, eCom 95 data management software attachments.
