FELLER AT265 AT266 signal amplifier 24VDC
LEHIY item code: LH-OTHER-0043
Quick buying check
This page helps you check FELLER AT265 AT266 signal amplifier 24VDC before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
German FELLER AT265 AT266 signal amplifiers, 24VDC, original factory source, discounted, fast delivery, import customs declaration provided.
The German FELLER ENGINEERING AT265/266/267 strain gauge amplifiers are used to acquire signals from two strain gauge bridges and provide current values and status information for further processing at the automation level.
The strain gauge sensor provides a signal proportional to the applied force, which is recorded by the measurement amplifier and provided as an analog signal (adjustable 0/4 20mA or 0 10V).
Simultaneously, adjustable signal limits are monitored, and exceeding or falling below them will trigger an alarm report via passive relay contacts.
Furthermore, FELLER measurement amplifiers feature extensive monitoring functions for open circuits, short circuits, hardware errors, power supply voltage, etc., ensuring operational reliability. Introduction to the German FELLER AT265 AT266 24VDC Signal Amplifiers.
The German FELLER AT265/266/267 strain gauge measurement amplifier series is suitable for performance class C in safety-related applications. Possible applications include: extruder melt pressure monitoring, load monitoring in conveyor technology, force and pressure monitoring in mechanical engineering, and weighing equipment.

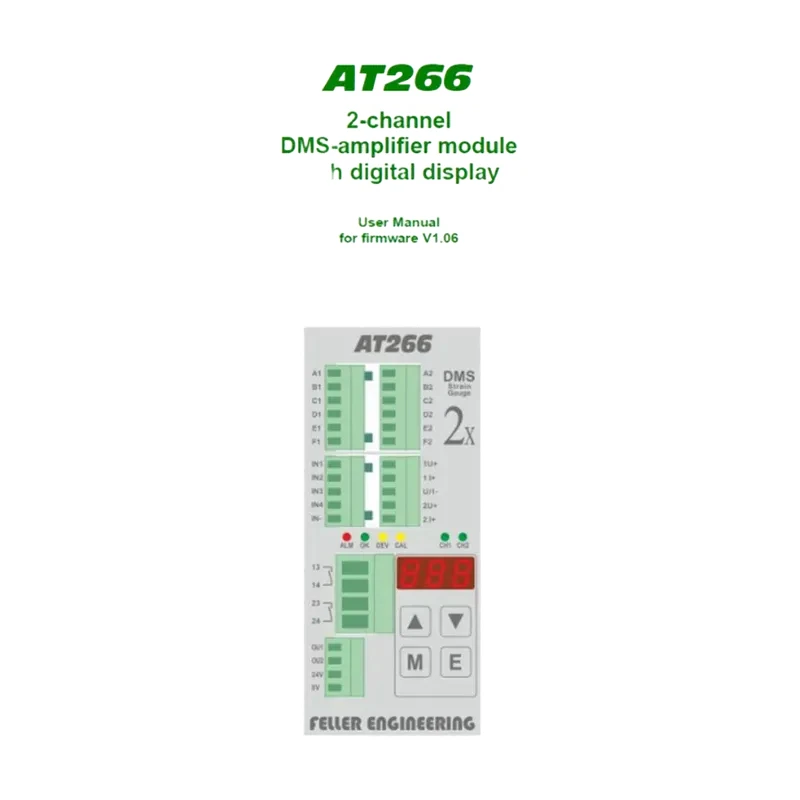

Display and Operation: These modules feature a three-digit 7-segment display for showing measured values, adjustable parameters, and status. Six LEDs of different colors on the front of the module also display important status information. These modules are operated using a membrane keypad with four keys.
Output Signals: Analog voltage or current outputs can be used to output measured values from two strain gauge sensors. Alarms or warnings are reported via two independent non-potential contacts and two 24V digital outputs. All connections are led out from the front of the coded plug.
Your benefits include: Suitable for safety-related applications with performance level C; extensive monitoring capabilities; achievable operational reliability; parameterization; simple digital I/O for PLC coupling; configurable alarms. FELLER AT265/266/267 German Feller Engineering Strain Gauge Measurement Amplifiers.
The FELLER AT265 – with redundant data logging – monitors two pressure sensors that must be installed in nearly identical locations within the machine for redundant monitoring of incoming pressure values. An alarm is triggered when the difference between the measured values measured by the two sensors exceeds a set value.
The FELLER AT266 – a classic 2-channel measurement amplifier – has two independent strain sensor measurement channels. Each sensor has an analog output for outputting the measured value and a relay contact for reporting alarms.
exceeds a limit or if the difference between the two signals deviates too far from each other (load imbalance).
Plain language sourcing guide for FELLER AT265 AT266 signal amplifier 24VDC
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Other | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
FELLER AT265 AT266 signal amplifier 24VDC
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
FELLER AT265 AT266 signal amplifier 24VDC verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
