Pearson 8585C current transformer .

Pearson 8585C current transformers are in stock at power plants. We are an authorized distributor of Pearson current transformers, including the 7800, 8705C, 5664, and 6600 models. We have ample stock of Pearson 8585C current transformers to supply power plants.

We are an authorized distributor of Pearson transformers in Greater China; please purchase from authorized Pearson dealers. We provide purchase orders, quality reports, certificates of origin, and import customs declarations for Pearson transformers, sensors, and probes. All necessary documentation is provided upon request, ensuring reliable delivery to power plants.

Features of the Pearson 8585C and 8590C fast clamp current transformers: Pearson Electronics is pleased to introduce two new wideband articulated clamp current monitors with fast rise times.

The 8585C and 8590C models feature rise times of 2.0 and 2.5 nanoseconds, 1/2-inch and 1-inch apertures, and a hinged design for easy handling.

The new design integrates Pearson's wideband frequency response into a detachable configuration for securing the conductor. Both models offer a sensitivity of 1.0 V/A and a 3dB bandwidth from approximately 1.0 kHz to 200 MHz.

We have a large stock of Pearson 8585C and Pearson 6600 current transformers in stock.

As an authorized Pearson distributor in the US, we currently have 10 units of this Pearson 8585C current transformer in stock. 6600, are readily available for power plants. Restocking is done periodically. The lead time for Pearson current transformers ordered from the US manufacturer is approximately one year.

Electronics: Pearson Electronics is the original manufacturer of precision current monitoring transformers for accurate alternating current measurement.

Founded in 1955, Pearson designs, combined with meticulous craftsmanship and quality control, to produce current monitors with excellent frequency response and amplitude accuracy. Pearson current transformers can measure transient, harmonic, pulse, sine, radio frequency, and other complex current waveforms.

With a frequency range of 0.7 Hz to 350 MHz, our popular models cover 1 Hz to 20 MHz ± 3 dB. Accuracy of 1% or higher is achieved in the mid-frequency range. Current ranges from microamps to kiloamps.

Originally developed for measuring pulsed currents, Pearson Current Monitors are now widely used for measuring more complex transient signals and periodic signals in the range of several hertz to megahertz. Pearson Electronics also specializes in designing high-voltage pulse transformers for use with high-power microwave tubes and capacitive dividers.

These transformers feature an open-architecture design and are intended for use with high-voltage insulating oil. Pulse output voltages range from 100 kV to 500 kV, with pulse lengths from 0.25 to 50 microseconds.

Pearson products are primarily used in: Beam Instruments, Power Industry Surge Current Testing, Particle Accelerators, EMI Testing Services include testing, repair, and calibration.

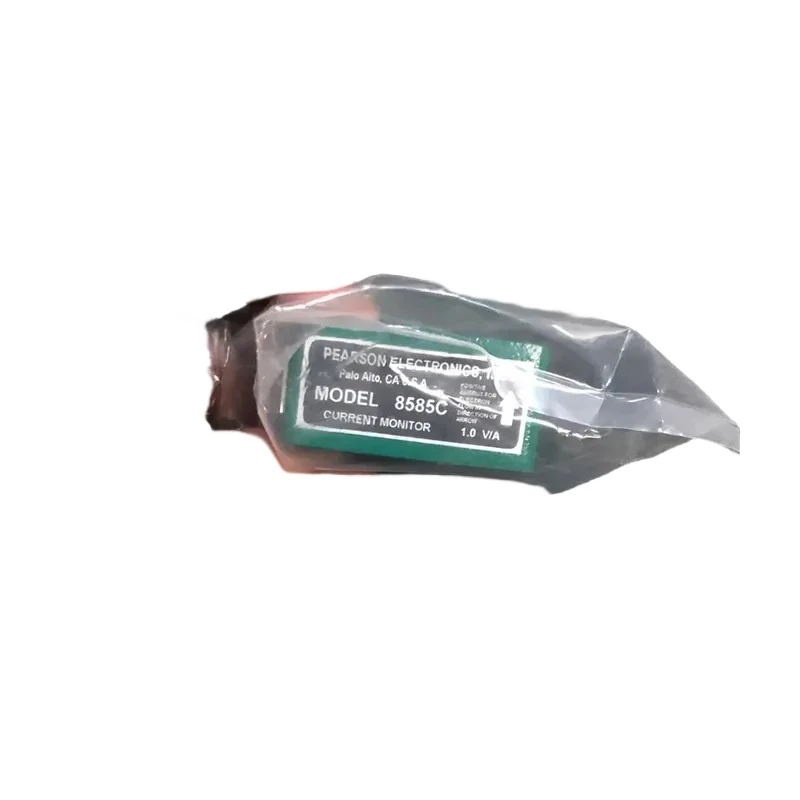

Photos of the Pearson 8585C 500A 200MHz current transformer are included. Pearson product introduction and main models: Pearson current sensor devices have a large inner diameter, allowing measurement of high-voltage currents without the risk of voltage breakdown.

Many Pearson current transformer models feature double shielding, improving noise immunity and safety in high-voltage applications. All models are hermetically sealed and suitable for use in high-voltage insulating oil or vacuum conditions. These can be connected to oscilloscopes, spectrum analyzers, power analyzers, and digital voltmeters.

Pearson broadband current detector models include: 2877, 4100, 2100, 6585, 6656, 3100, 150, 6595, 325*, 2878, 410, 411, 3972, 110, 110Af, Pearson 6600 (in stock), 310*, 1010*, 1025, 3025*, 2879, 5046, 101, 4997, 301X*, 1080, 1330*, 4418, 1423*, 2093*.

All Pearson clamp current monitor models have an initial impulse response accuracy of ±1% or higher and can operate with high impedance loads (eg, 1 megohm in parallel with 20 pF). A 50-ohm termination will reduce the output by half.

Unless otherwise specified, all models listed below are equipped with BNC connectors and are used with 50-ohm coaxial cable.

The current monitor housing is conductive but not insulated. Adequate insulation must be provided on the conductor being monitored. To avoid electric shock, do not install or remove the current monitor from a live conductor.

Pearson clamp current monitor model list: Pearson 8585C in stock, 4100°C, 8590C, 7790, 4688, 8705C+, 7805, 7760, 5101, 5949+, 411C, 7795, 3525, 7810, 7655, 5008C, 7800, 4160, 7815, 7450, 5664 Pearson Custom Current Monitors: 5753, 5834, 8600, 2854, 7737, 8181, 8122, 6027, 8440, 804, 804R, 8611, 3363, 3382, 4285,.

5011, 5673, 8365, 8606, 2811A, 8535, 4191, 4994, 5803, 5624, 7427A, 5008, 8573, 6247A, 4427, 5623, 3880, 2445 Pearson Capacitive Dividers: VD-301, VD-305A, VD-305A-10.000, VD-305A-AIR, VD-500A Pearson also offers high-voltage pulse transformer accessories, attenuators, adapters, connector services (testing, repair, and calibration),.

and other related products.

For more information on genuine Pearson current transformers such as the 8585C and 6600, please contact our sales department!
