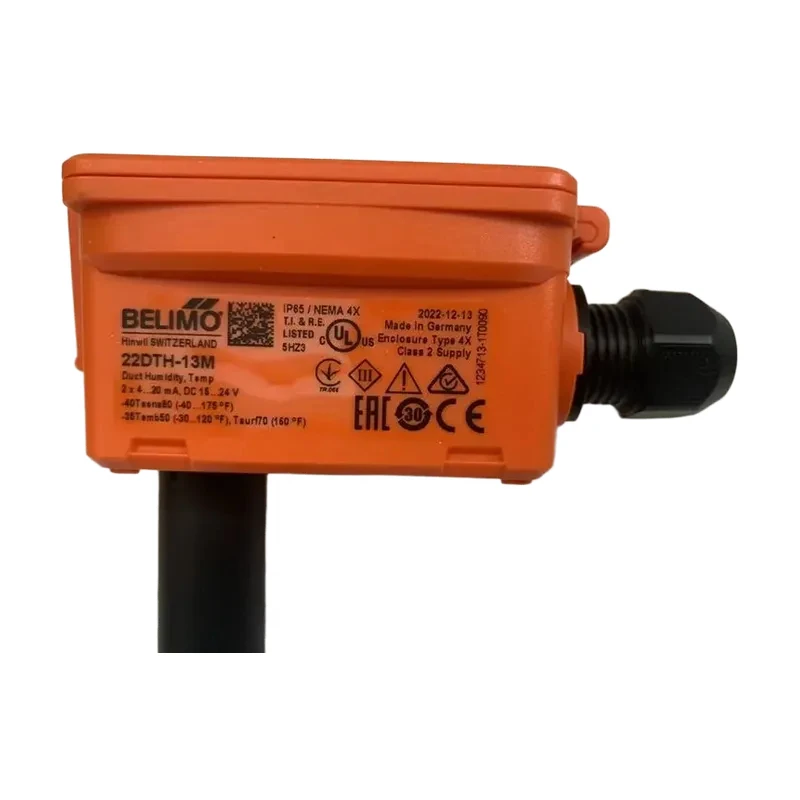

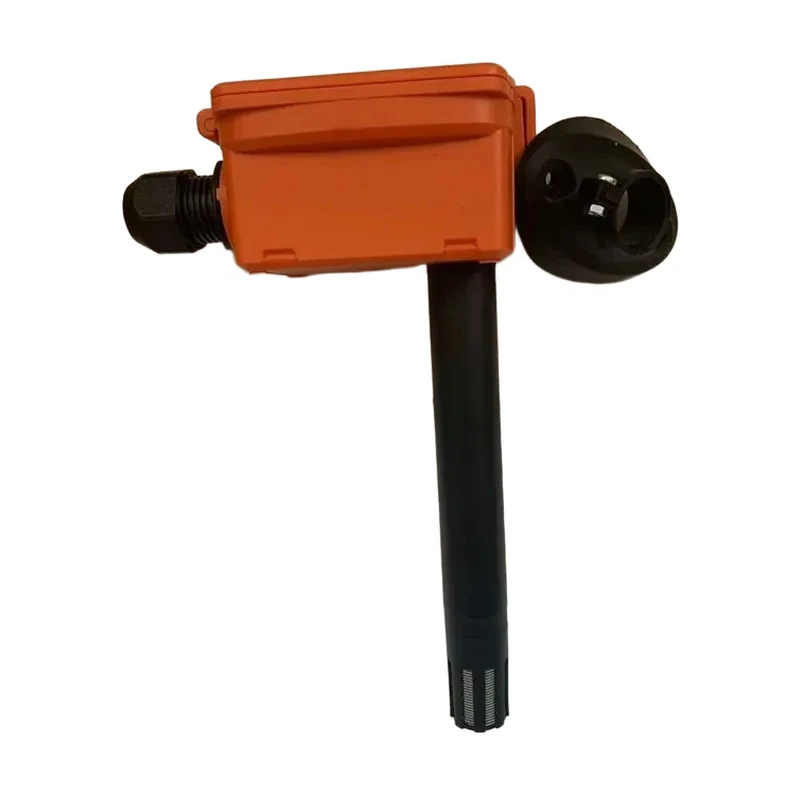

Belimo 22DTH-13M Duct Temperature and Humidity Sensor
LEHIY item code: LH-OTHER-0018
Quick buying check
This page helps you check Belimo 22DTH-13M Duct Temperature and Humidity Sensor before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
The Belimo 22DTH-13M duct temperature and humidity sensor is a genuine product. The Belimo 22DTH-13M active temperature and humidity sensor (4...20 mA) can be used to measure the relative or absolute humidity and temperature of air in ducts.
In addition to humidity, enthalpy or dew point temperature output signals can also be selected. Protection rating: NEMA 4X / IP65.
The Belimo 22DTH-13M temperature sensor has an active output signal of 4-20mA. The Belimo 22DTH-13M humidity sensor has an active output signal of 4-20mA. its use outside of these systems cannot be guaranteed. Unauthorized product modifications are strictly prohibited.
This product must not be used in conjunction with any equipment that may endanger humans, animals, or property.
Before installation, ensure all power is disconnected. Do not connect or operate any live equipment. Only authorized professionals may install this equipment, and all applicable laws, regulations, and other installation rules must be followed during installation.
This equipment contains electronic components and must not be disposed of as ordinary household waste; it must be disposed of in accordance with local laws and regulations.
Furthermore, sensing devices with transmitters should generally be operated in the middle of their measurement range to effectively avoid deviations when measuring extreme values.
The transmitter's ambient temperature should be stable, and a stable supply voltage (±0.2 V) is required. Power surges must be avoided on-site when switching power supplies.
Belimo 22DTH-13M, product parameters are as follows: Electrical Parameters Rated Voltage: DC 24 V Rated Voltage Range: DC 13.5...26.4 V Rated Power Consumption: DC 1 W Electrical Wiring: Removable spring-loaded terminal block, maximum 2.5 mm² Cable Connection: Cable goran head, with Ø6...8mm.
anti-pull buckle Parameters Sensor Technology: Polymer capacitive sensor with stainless steel filter mesh Applications: Air Multi-range: 4 selectable measurement ranges Current Output Signal: 2 x 4...20 mA, maximum load 500 Ω Measurement Parameters Measured Values: Relative Humidity Absolute Humidity Dew Point Enthalpy Temperature Humidity Measurement Range:.
0...100% relative humidity, non-condensing Absolute Humidity Measurement Range: Converter section adjustable: 0...50 g/m³ (default setting) 0...80 g/m³ Enthalpy Measurement Range: 0...85 kJ/kg Dew Point Temperature Measurement Range: The converter section is adjustable: 0...50°C (default setting) - 20...80°C.
Humidity measurement accuracy: ±2% at 0...80% relative humidity @ 25°C. Active temperature measurement accuracy: ±0.3°C @ 25°C [±0.54°F @ 77°F]. Our company has a strong advantage in supplying the Belimo 22DTH-13M duct temperature and humidity sensor.
Other models are also available: 22DTH-11M, 22DTH-11MM, 22DTH-11Q, 22DTH-13M, 22DTH-13Q, 22DTH-15M, 22DTH-15Q, 22DTH-16M.
For detailed information on the Belimo 22DTH-13M product, please contact our sales department.
