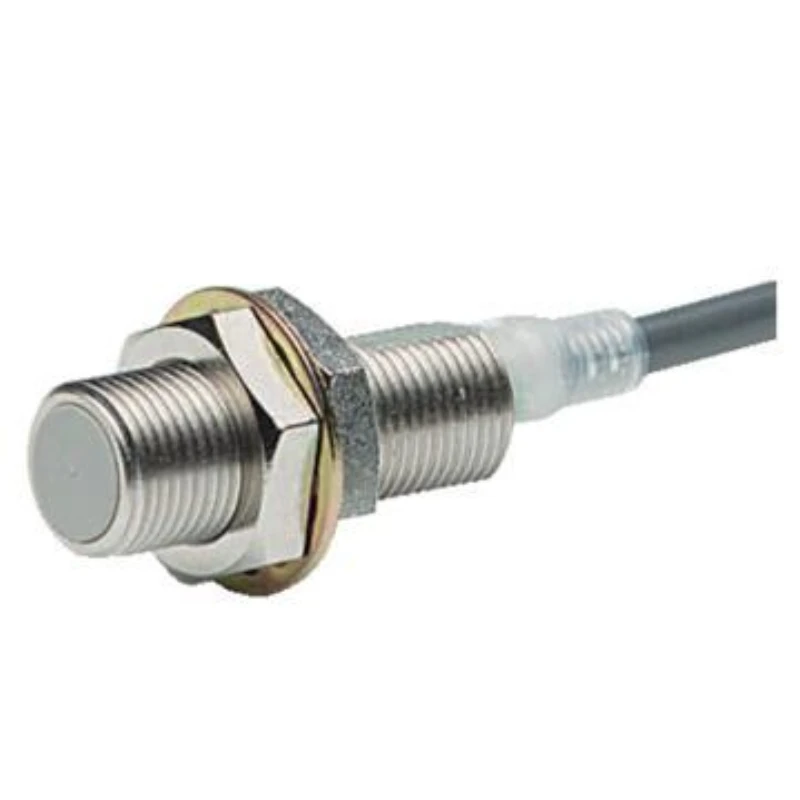

OMRON proximity switch, E2E-X8MD1 2M
LEHIY item code: LH-OMRON-2926
Ambient Temperature (Operating): -25～70℃
Category: Inductive Proximity Switch
Operating Voltage: DC12-24V
Quick buying check
This page helps you check OMRON proximity switch, E2E-X8MD1 2M before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Technical Specifications
| Sensor Head Size | M12 |
|---|---|
| Type | Cylindrical (with screw), Unshielded |
| Power Source | DC 2-wire Model |
| Sensing Distance | 8 mm ±10% |
| Setup Distance | 0 to 6.4 mm |
| Differential Distance | **Maximum Sensing Distance: 10%** **Sensing Object:** **Ferrous Metals (Sensitivity reduced for non-ferrous metals)** **Standard Sensing Object:** **Iron 30 x 30 x 1 mm** **Response Frequency:** **0.8 Hz** **Supply Voltage:** **12 to 24 VDC Ripple (pp) Maximum 10%** **Operating Voltage Range:** **10 to 30 VDC** **Sensing Object:**|
| Leakage Current | Max 0.8 mA |
| Control Output (Switching) | 3 to 100 mA |
| Control Output (Residual Voltage) | Max 3 V (Load Current 100 mA, Cable Length 2 m) |
| Indicators | Run Indicator (Red), Run Setting Indicator (Green) |
| Operating Mode | No |
| Polarity | Polarity |
| Protection Circuit | Output Short Circuit Protection Surge Suppressor |
| Ambient Temperature (Operating) | -25～70℃ |
| Ambient Temperature (Storage) | -40～85℃ |
| Ambient Humidity (Operating) | 35% to 95% Relative Humidity |
| Ambient Humidity (Storage) | 35% to 95% Relative Humidity |
| Temperature Effect | ±10% Maximum sensing distance at 23°C within the temperature range of -25 to 70°C |
| Voltage Influence | ±1% Maximum Sensing Distance at Rated Voltage within ±15% of Rated Voltage |
| Insulation Resistance | Between live parts and casing: 5 MΩ min. | At 500 VDC
| Dielectric Strength | Between live parts and housing: 1,000 VAC 50/60 Hz for 1 minute |
| Vibration Resistance | Destruction: 10～55Hz, 1.5mm double amplitude in each of the X, Y, and Z directions for 2 hours |
| Shock Resistance | Destruction: 1000 m/s<sup>2</sup><sup>10 times each in the X, Y, and Z directions |
| Protection Rating | IEC: IP67 Company Standard: Oil Resistant |
| Weight | Packaging: Approx. 70 grams |
| Materials | Housing: Nickel-plated brass Sensing Surface: Polybutylene terephthalate (PBT) Clamping Nut: Nickel-plated brass Toothed Washer: Zinc-plated iron |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Category | Inductive Proximity Switch |
| Installation Method | Unshielded |
| Detection Distance | 8mm |
| Connection Method | 2m Cable |
| Output Status | NO |
| Protection Rating (IP) | IP67 |
| Outer Size | M18 |
| Housing Material | Nickel-plated Brass |
| Operating Voltage | DC12-24V |
Plain language sourcing guide for OMRON proximity switch, E2E-X8MD1 2M
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
