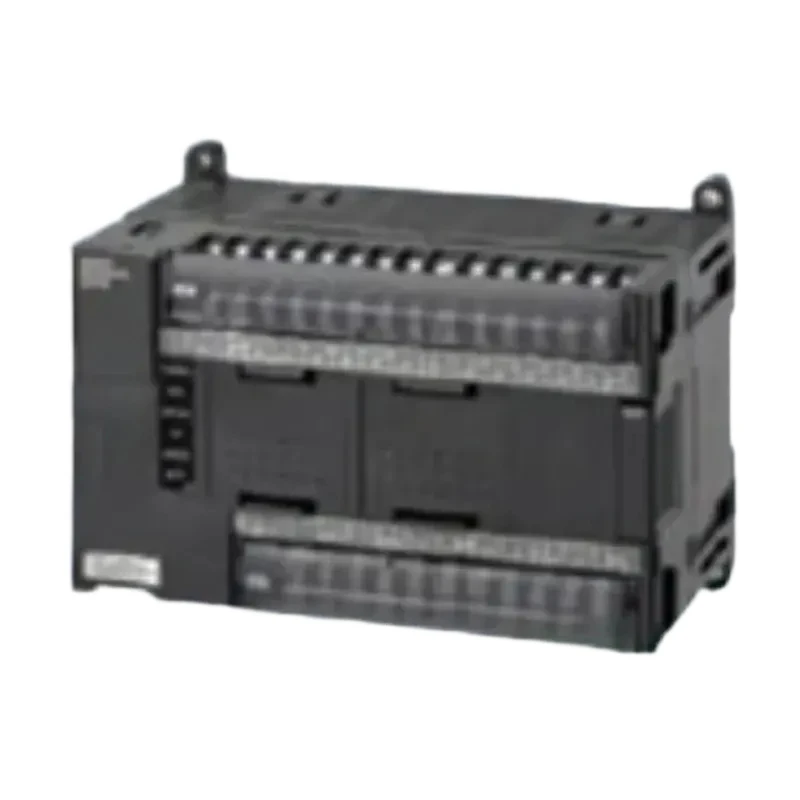

Omron CP1H series programmable controllers
LEHIY item code: LH-OMRON-0002
Quick buying check
This page helps you check Omron CP1H series programmable controllers before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
| CP1H- D- | |||
| ① ② ③ ④ | |||
| Number | Project | Symbol | Specifications |
| ① | Type | X | Basic |
| XA | Terminal block type with built-in analog input and output | ||
| Y | Type with special terminal for pulse input and output | ||
| ② | Built-in Universal Input Output Points | 40 | 40 points |
| 20 | 20 points | ||
| ③ | Output Category | R | Relay output |
| T | Product tube output (leakage type) | ||
| T1 | Transistor output (source type) | ||
| ④ | Power supply type | A | AC power |
| D | DC power |
Type
About Overseas Specifications
• Symbols mean as follows. U: UL, U1: UL(Class I Div 2 hazardous site certified products), C: CSA, UC: cULus, UC1 :cULus(Class I Div 2 hazardous site certified products), CU :cUL, N: NK, L: Lloyd, CE :EU directive, KC: Korean electric wave method login. Please consult our company for the conditions of use.CPU Unit
| Product Name | Specifications | Model | Overseas Specifications | ||||
|---|---|---|---|---|---|---|---|
| CPU type | Power | Output | Input | Output | |||
| CP1H-X type | Memory capacity: 20K steps High-speed counter: 100kHz 4-axis pulse output: 100kHz 4-axis (transistor type only) | AC power | Relay | 24:00 | 16 points | CP1H-X40DR-A | UC1, N, L, CE, KC |
| DC Power | Transistor (drain type) | CP1H-X40DT-D | |||||
| Transistor (source type) | CP1H-X40DT1-D | ||||||
| CP1H-XA type | Memory capacity: 20K steps High-speed counter: 100kHz 4-axis pulse output: 100kHz 4-axis (transistor type only) Analog input: 4-point analog output: 2 points | AC power | Relay | 24:00 | 16 points | CP1H-XA40DR-A | |
| DC Power | Transistor (drain type) | CP1H-XA40DT-D | |||||
| Transistor (source type) | CP1H-XA40DT1-D | ||||||
| CP1H-Y type | Memory capacity: 20K steps high-speed counter: 1MHz 2-axis 100kHz 2-axis pulse output: 1MHz 2-axis 100kHz 2-axis | DC power | Transistor (drain type) | 12 points + line drive input 2 axis | 8-point line drive output 2-axis | CP1H-Y20DT-D |
Optional unit (for CPU unit)
| RS-232C Option Board | Palette Slots 1, 100.00g are available for installation | CP1W-CIF01 | UC1, N, L, CE, KC |
|---|---|---|---|
| RS-422A/485 Option Board | CP1W-CIF11 | ||
| RS-422A/485 (insulated) option board | CP1W-CIF12-V1 | UC1, N, L, CE, KC | |
| Ethernet Option Board | Palette Slots 1, 100.00g can be installed * | CP1W-CIF41 | UC1, N, L, CE, KC |
| LCD Option Board | Only the palette slot 1 can be installed with a 4-line x 12-character LCD display | CP1W-DAM01 | UC1, N, L, CE, KC |
| Storage box | The program can be backed up and started. | CP1W-ME05M | UC1, N, L, CE |
Expansion unit
| Product Name | Input | Output | Input/Output Specifications | Model | Overseas specifications | |
|---|---|---|---|---|---|---|
| Input unit | 8 points | - | DC24V input | CP1W-8ED | U, C, N, L, CE, KC | |
| Output Unit | - | 8 points | Relays | CP1W-8ER | ||
| Transistor (Drain) | CP1W-8ET | |||||
| Transistor (source type) | CP1W-8ET1 | |||||
| - | 16 points | Relays | CP1W-16ER | N, L, CE, KC | ||
| Transistor (Drain) | CP1W-16ET | |||||
| Transistor (source type) | CP1W-16ET1 | |||||
| - | 32 points | Relays | CP1W-32ER | N, L, CE, KC | ||
| Transistor (Drain) | CP1W-32ET | |||||
| Transistor (source type) | CP1W-32ET1 | |||||
| I/O Unit | 12:00 | 8 points | Relays | CP1W-20EDR1 | U, C, N, L, CE, KC | |
| Transistor (Drain) | CP1W-20EDT | |||||
| Transistor (source type) | CP1W-20EDT1 | |||||
| 24:00 | 16 points | Relays | CP1W-40EDR | N, L, CE, KC | ||
| Transistor (Drain) | CP1W-40EDT | |||||
| Transistor (source type) | CP1W-40EDT1 | |||||
| Analog Input Unit | 4CH | - | Input Range: 0~5V/ 1~5V/ 0~10V/ ± 10V/ 0 ~ 20mA/ 4 ~ 20mA | Resolution: 6,000 | CP1W-AD041 | UC1, N, L, CE, KC |
| Resolution: 12,000 | CP1W-AD042 | UC1, N, CE, KC | ||||
| Analog Output Unit | - | 2CH | Output Range: 1~5V/ 0~10V/ ± 10V/ 0 ~ 20mA/ 4 ~ 20mA | Resolution: 6,000 | CP1W-DA021 | UC1, N, L, CE, KC |
| - | 4CH | Resolution: 6,000 | CP1W-DA041 | |||
| Resolution: 12,000 | CP1W-DA042 | UC1, N, CE, KC | ||||
| Analog Input/Output Unit | 4CH | 4CH | Input Range: 0~5V/ 1~5V/ 0~10V/ ± 10V/ 0 ~ 20mA/ 4 ~ 20mA Output Range: 1~5V/ 0~10V/ ± 10V/ 0 ~ 20mA/ 4 ~ 20mA | Resolution: 12,000 | CP1W-MAD44 | UC1, N, CE, KC |
| 4CH | 2CH | Resolution: 12,000 | CP1W-MAD42 | |||
| 2CH | 1CH | Resolution: 6,000 | CP1W-MAD11 | UC1, N, L, CE, KC | ||
| Temperature Sensor Unit | 2CH | - | Sensor Type: Thermocouple (J, K) | CP1W-TS001 | UC1, N, L, CE, KC | |
| 4CH | - | Sensor Type: Thermocouple (J, K) | CP1W-TS002 | |||
| 2CH | - | Sensor Type: Temperature Measuring Resistor (Pt100, JPt100) | CP1W-TS101 | |||
| 4CH | - | Sensor Type: Temperature Measuring Resistor (Pt100, JPt100) | CP1W-TS102 | |||
| 4CH | - | sensor type: thermocouple (j, k) analog input 2CH (used with 2 points in temperature sensor input) input range: 1-5V/0-10V/ 4-20mA | Analog input resolution: 2000 | CP1W-TS003 | UC1, N, CE, KC | |
| 12CH | - | Sensor Type: Thermocouple (J, K) | CP1W-TS004 | |||
| CompoBus/S I/O Link Unit | 8 points | 8 points | CompoBus/S slave | CP1W-SRT21 | UC1, N, L, CE, KC |
CJ Series High Function I/O Unit/CPU High Function Unit
| Unit type | Product Name | Specifications | Model | Overseas specifications |
|---|---|---|---|---|
| CP1H CPU Unit Option | CJ Unit Adapter | Adapter for CJ Series High Function I/O, CPU High Function Unit Connection (includes CJ Series end cap and two terminal boards) | CP1W-EXT01 | UC1, N, L, CE, KC |
| CJ1 High-Function I/O Unit | Analog Input Unit | input 4 points 1~5V (resolution 1/10,000), 0~10V, -5 ~ +5V (resolution 1/20,000), -10 ~ +10V (resolution 1/40,000), 4 ~ 20mA (resolution 1/10,000), conversion period 20 μs/1 point, 25 μs/2 point, 30 μ/3 dots, 35 μs/4 dots | CJ1W-AD042 | UC1, CE, KC |
| Input 8 points 1~5V, 0~5V, 0~10V, -10 ~ +10V, 4 ~ 20mA resolution 1/8000, conversion speed 250 μs/point (can also be set to resolution 1/4000, conversion speed 1ms/point) | CJ1W-AD081-V1 | UC1, N, L, CE, KC | ||
| Input 4 points 1~5V, 0~5V, 0~10V, -10 ~ +10V, 4 ~ 20mA resolution 1/8000, conversion speed 250 μs/point (can also be set to resolution 1/4000, conversion speed 1ms/point) | CJ1W-AD041-V1 | |||
| Analog Output Unit | output 4 points 1~5V (resolution 1/10,000), 0~10V (resolution 1/20,000), -10 ~ +10V (resolution 1/40,000), conversion period 20 μs/1 point, 25 μs/2 point, 30 μs/3 point, 35 μs/4 point | >CJ1W-DA042V | UC1, CE, KC | |
| Output 8 points 1~5V, 0~5V, 0~10V, -10 ~ +10V resolution 1/4000, conversion speed 1ms/point (can also be set to resolution 1/8000, conversion speed 250 μs/point) | CJ1W-DA08V | UC1, N, L, CE, KC | ||
| Output 8 points 4 ~ 20mA resolution 1/4000, conversion speed 1ms/point (can also be set to resolution 1/8000, conversion speed 250 μs/point) | CJ1W-DA08C | UC1, N, CE, KC | ||
| Output 4 points 1~5V, 0~5V, 0~10V, -10 ~ +10V, 4 ~ 20mA resolution 1/4000, conversion speed 1ms/point | CJ1W-DA041 | UC1, N, L, CE, KC | ||
| Output 2 points 1~5V, 0~5V, 0~10V, -10 ~ +10V, 4 ~ 20mA resolution 1/4000, conversion speed 1ms/point | CJ1W-DA021 | |||
| Analog Input/Output Unit | Input 4 points, output 2 points 1~5V, 0~5V, 0~10V, -10 ~ +10V, 4 ~ 20mA resolution 1/4000, conversion speed 1ms/point (can also be set to resolution 1/8000, conversion speed 500 μs/point) | CJ1W-MAD42 | ||
| Process Input Unit | Input 4-point full-range multi-input: pt100 (3-wire), JPt100(3-wire), Pt1000(3-wire), Pt100(4-wire), K, J, T, E, L, U, N, R, S, B, WRe5-26, PL II, 4 ~ 20mA, 0 ~ 20mA, 1~5V, 0~1.25V, 0~10V, 100mV arbitrary range, -1.25 ~ +1.25V, -5 ~ +5V, -10 ~ +10V, ± 10V Any Range Potentiometer Resolution/Conversion Speed: 1/256000 (conversion period 60ms/4 points), 1/64000 (conversion period 10ms/4 points), 1/16000 (conversion period 5ms/4 points) | CJ1W-PH41U * | UC1, CE, KC | |
| Input 4-point full-range multi-input: Pt100, JPt100, Pt1000, K, J, T, L, R, S, B, 4 ~ 20mA, 0 ~ 20mA, 1~5V, 0~5V, 0~10V conversion speed 250ms/4 points | CJ1W-AD04U | UC1, L, CE, KC | ||
| Enter 4 points R, S, K, J, T, L, B conversion rate 250ms/4 points | CJ1W-PTS51 | UC1, CE, KC | ||
| Input 4 points Pt100Ω(JIS, IEC), JPt100Ω conversion speed 250ms/4 points | CJ1W-PTS52 | |||
| Points 2 points B, E, J, K, L, N, R, S, T, U, WRe5-26, PL ± 100mV, resolution 1/64000, conversion speed 10ms/2 points | CJ1W-PTS15 | |||
| Input 2 points 0~1.25V, -1.25 ~ +1.25V, 0~5V, 1~5V, -5 ~ +5V, 0~10V, -10 ~ +10V, any range within ± 10V, 0 ~ 20mA, 4 ~ 20mA | CJ1W-PDC15 | |||
| Temperature Control Unit | 4 Loops, Thermocouple Input/NPN Output | CJ1W-TC001 | UC1, N, L, CE, KC | |
| 4 Loops, Thermocouple Input/PNP Output | CJ1W-TC002 | |||
| 2 Loops, Thermocouple Input/NPN Output, With Heater Break Alarm | CJ1W-TC003 | |||
| 2 Loops, Thermocouple Input/NPN Output, With Heater Break Alarm | CJ1W-TC004 | |||
| 4 Loops, Platinum Resistor Input, NPN Output | CJ1W-TC101 | |||
| 4 Loops, Platinum Resistor Input, PNP Output | CJ1W-TC102 | |||
| 2 Loops, Platinum Temperature Measuring Resistor Input, NPN Output, With Heater Break Alarm | CJ1W-TC103 | |||
| 2 Loops, Platinum Temperature Measuring Resistor Input, PNP Output, With Heater Break Alarm | CJ1W-TC104 | |||
| High-speed counter unit | 2-axis, maximum input frequency 500kpps | CJ1W-CT021 | UC1, N, L, CE, KC | |
| Position control unit | 1-axis open collector output type | CJ1W-NC113 | UC1, CE, KC | |
| 2-axis open collector output type | CJ1W-NC213 | |||
| 4-axis open collector output type | CJ1W-NC413 | |||
| 1-axis drive output type | CJ1W-NC133 | |||
| 2-axis drive output type | CJ1W-NC233 | |||
| 4-axis drive output type | CJ1W-NC433 | |||
| Space Unit | CJ1W-SP001 | UC1, CE | ||
| ID Sensor Unit | V680 Series Single Headtype | CJ1W-V680C11 | UC1, CE, KC | |
| V680 Series Duplex | CJ1W-V680C12 | |||
| V600 Series Single Headtype | CJ1W-V600C11 | |||
| V600 Series Duplex | CJ1W-V600C12 | |||
| CompoNet Master Unit | Word slave: 2,048 points, bit slave: 512 points | CJ1W-CRM21 | U, U1, N, L, CE | |
| CompoBus/S Master Unit | CompoBus/S Remote I/O Maximum 256 Points | CJ1W-SRM21 | UC1, N, L, CE, KC | |
| CJ1 CPU High Function Unit | Analog Input Unit | Input 4 points -10 ~ +10V (resolution 1/60000), 0~5V, 0~10V (resolution 1/30000), 1~5V, 4 ~ 20mA (resolution 1/24000) | CJ1W-ADG41 | CE |
| ControllerLink unit | Cable Type (Shielded Twisted Pair) | CJ1W-CLK23 | UC1, N, L, CE, KC | |
| Serial Communication Unit | RS-232C × 1 port RS-422A/485 × 1 port | CJ1W-SCU42 | ||
| RS-232C x 2 ports | CJ1W-SCU22 | |||
| RS-422A/485 × 2 ports | CJ1W-SCU32 | |||
| EtherNet/IP Unit | Twisted pair cable (shielded: STP) : Category 5, 5e tag data link function, information communication function | CJ1W-EIP21 | UC1, N, L, CE, KC | |
| Ethernet unit | Twisted pair cable (shielded: STP) : Category 5, 5e label data link function, + D52:E56 information communication function | CJ1W-ETN21 | ||
| DeviceNet unit | Control + D52:E56 | with master and slave functions, up to 32,000 points/masterCJ1W-DRM21 | ||
| MECHATROLINK -Ⅱ corresponding position control unit | MECHATROLINK-II: Direct operation based on ladder program, up to 16 axes of control commands by synchronous communication, control mode: position control/speed control/torque control | Number of axes: 2 axes | CJ1W-NC271 | UC1, CE, KC |
| Number of axes: 4 axes | CJ1W-NC471 | |||
| Number of axes: 16 axes | CJ1W-NCF71 | |||
| Number of axes: 16 axes | CJ1W-NCF71-MA | |||
| FL-net unit | Type 100BASE-TX | CJ1W-FLN22 | ||
| SPU | High-speed data set unit | CJ1W-SPU01-V2 |
Plain language sourcing guide for Omron CP1H series programmable controllers
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
