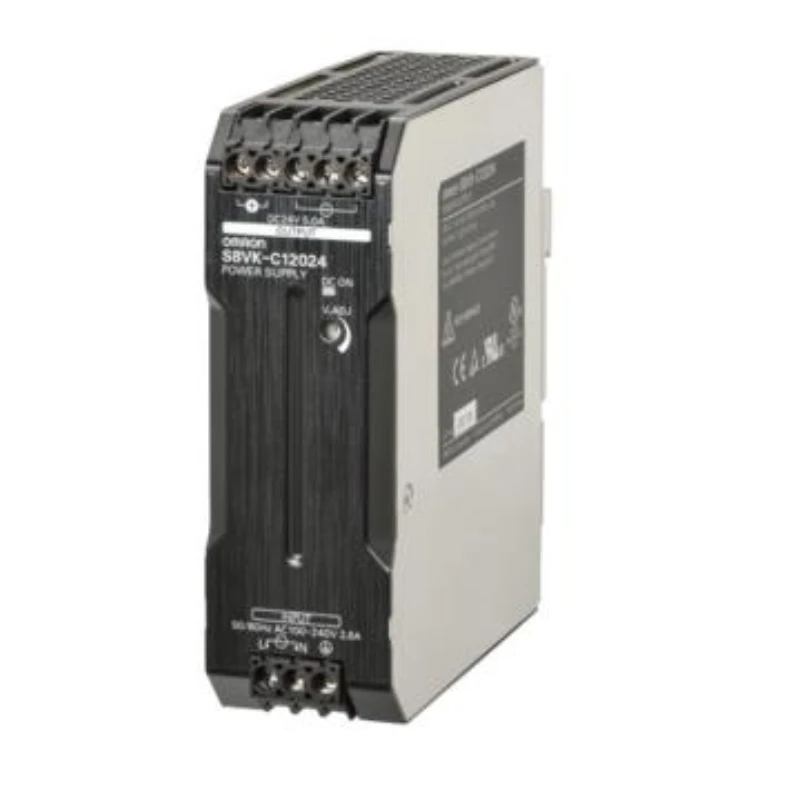

OMRON voltage transmitter, S8VK-C12024 240VAC 24VDC
LEHIY item code: LH-OMRON-2831
Temperature Variation: Below 0.05%/°C
Category: Voltage Transmitter
Load Variation (Rated Input Voltage): Below 3.0% (5 V), Below 2.0% (12 V), Below 1.5% (24 V), 0%~100% Load
Quick buying check
This page helps you check OMRON voltage transmitter, S8VK-C12024 240VAC 24VDC before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Features
|
Technical Specifications
Project | Rated power and output voltage | 15W | 30W | ||||
5V | 12V | 24V | 5V | 12V | 24V | ||
Efficiency (typical) | AC230V input | 77% | 80% | 79% | 82% | 86% | |
Input | Voltage * 1 | AC100~240V, DC90~350V (Allowable range: AC85~264V) | |||||
Frequency * 1 | 50/60Hz (47~450 Hz) | ||||||
Current (typical) | AC115V input | 0.32A | 0.3A | 0.31A | 0.5A | 0.57A | 0.58A |
AC230V input | 0.2A | 0.21A | 0.2A | 0.32A | 0.37A | 0.36A | |
Power Factor (Typical) | AC230V Input | 0.42 | 0.43 | 0.42 | 0.43 | ||
High Harmonic Current | Compliant with EN61000-3-2 | ||||||
Leakage Current (Typical) | AC115V Input | 0.14mA | 0.13mA | ||||
AC230V Input | 0.25mA | 0.24mA | |||||
Surge Current (Typical)*2 | AC115V Input | 16A | |||||
AC230V Input | 32A | ||||||
Output | Variable Voltage Range *3 | 10%~15% (V.ADJ)(Guaranteed Value) | |||||
Ripple *4 | 20 MHz (Typical) | 60mV | 50mV | 30mV | 30mV | 30mV | 30mV |
Input Variation | Below 0.5% (AC85~264V input, 100% load) | ||||||
Load Variation (Rated Input Voltage) | Below 3.0% (5 V), Below 2.0% (12 V), Below 1.5% (24 V), 0%~100% Load | ||||||
Temperature Variation | Below 0.05%/°C | ||||||
Startup Time (Typical) * 2 | AC115V Input | 530ms | 520ms | 580ms | 550ms | 550ms | 600ms |
AC230V Input | 330ms | 400ms | 400ms | 430ms | 490ms | 480ms | |
Hold Time (Typical) * 2 | AC115V Input | 28ms | 29ms | 32ms | 33ms | 36ms | 23ms |
AC230V Input | 134ms | 138ms | 134ms | 177ms | 170ms | 154ms | |
Additional Functions | Overcurrent Protection *2 | 121%~160% (130% standard value) of rated load current | |||||
Overvoltage protection *2 | Yes *5 | ||||||
Power supply boost | 120% of rated current (see engineering data) | ||||||
Parallel operation | Yes (see engineering data) | ||||||
Series operation | Maximum 2 units (using external diodes) | ||||||
Other | Ambient Temperature | -40~70℃ (Please refer to engineering data) | |||||
Storage Temperature | -40~85℃ | ||||||
Ambient Humidity | 0%~95% (Storage Humidity: 0%~95%) | ||||||
Withstand Voltage (Detection Current: 20mA) | AC3.0kV, 1 minute. (between all inputs and outputs) AC2.0kV, 1 minute. (between all inputs and PE terminals) AC1.0kV, 1 minute. (Between all outputs and PE terminals) | ||||||
Insulation Resistance | Above 100MΩ (between all outputs and all inputs/PE terminals), at DC500V | ||||||
Vibration Resistance | 10~55Hz, 0.375mm single amplitude, 2 hours in each of the 3 axes | ||||||
10~150 Hz, 0.35mm single amplitude (below 5 G), 80 minutes in each of the 3 axes | |||||||
Shock Resistance | 150 m/s², 3 times each in ±X, ±Y, and ±Z directions | ||||||
Output Indicator Light | Yes (color: green), illuminates when rated voltage is 80%~90% or above | ||||||
EMI | Conducted | Compliant with EN61204-3 EN55011 Class B, based on FCC Class A | |||||
Radiated | Compliant with EN61204-3 EN55011 Class B | ||||||
EMS | Compliant with EN61204-3 High Level | ||||||
Applicable Standards | UL Column Name: UL508 (Column Name, Class 2 Output: According to UL1310) ULUR: UL60950-1 (Certified) cUL: CSAC22.2 No.107.1 (Class 2 Output: According to CSAC22.2 No.223) cUR: CSAC22.2 No.60950- 1 EN：EN62477-1, EN60950-1 (=VDE0805) British Lloyd's Register Standards EAC(TRCU004/2011, TRCU020/2011) RCM(EN61000-6-4) | ||||||
Compliant Standards | SELV(EN60950-1/EN62477-1/UL60950-1), PELV(EN60204-1, EN62477-1) Standards, Power Transformer Safety (EN61558-2-16) StandardsEN50274 Applicable Terminal Components | ||||||
Protection Level | EN/IEC60529 IP20 | ||||||
SEMI | F47-0706 (AC200~240V Input) Standard | ||||||
Weight | 150g | 195g |
*1. Do not use the inverter output as a power source. Inverters with an output frequency of 50/60Hz are usable, but the internal temperature of the power supply may rise, potentially causing a fire or combustion. *2. For cold start at 25°C.
See the engineering datasheet for details on page 12.
*3. Adjusting the output voltage regulator (V. ADJ) can raise the voltage to more than 15% of the voltage adjustment range. When adjusting the output voltage, please confirm the actual output voltage of the power supply and ensure that the load is not damaged.
.
*4. Characteristics when the ambient temperature is between -25°C and 70°C.
*5. For reset protection, turn the input power off for at least three minutes, then turn it on again.Technical Specifications
| Specification | Value |
|---|---|
| Brand | Omron |
| Category | Voltage Transmitter |
Plain language sourcing guide for OMRON voltage transmitter, S8VK-C12024 240VAC 24VDC
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
