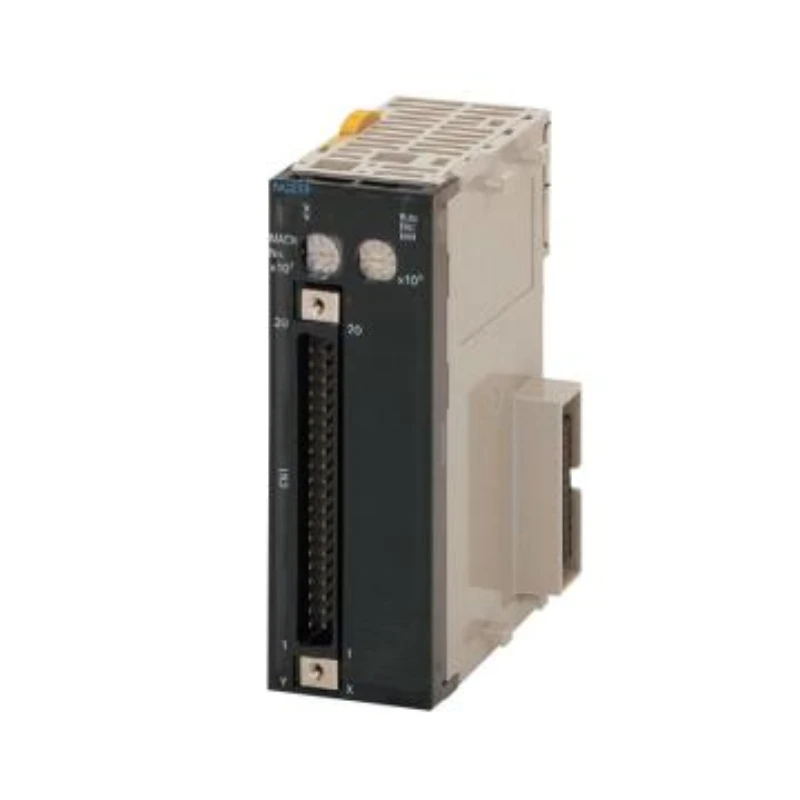

OMRON CJ series position control unit, CJ1W-NC213
LEHIY item code: LH-OMRON-2816
Permissible power supply voltage variation range DC4.75～5.25V (for PCU itself) DC21.6～26.4V (External power supply) DC22.8～25.2V (External power supply) DC4.75～5.25V (External power supply, linear driver output (only)) Internal current consumption DC5V: Below 250mA DC5V: Below 250mA DC5V: Below 360mA.
External Power Supply Current Consumption NC113: DC24V: Below 30mA NC213: DC24V: Below 50mA NC413: DC24V: Below 100mA NC133: DC24V: Below 10mA NC233: DC24V: Below 20mA NC433: Below 30mA at DC 24V NC133: Below 60mA at DC 5V NC233: Below 120mA at DC 5V NC433: Below 230mA at DC 5V Dimensions.
90 (H) × 31 (W) × 65 (D) (All Models) Weight Below 100g Below 100g Below 150g Operating Ambient Temperature 0～55°C 0～55°C * Note: Specifications not listed above conform to general CJ series specifications.: Permissible power supply voltage variation range.
Category: Position Control Unit
Power Supply Voltage: DC5V (for PCU itself)
Quick buying check
This page helps you check OMRON CJ series position control unit, CJ1W-NC213 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Features
|
Technical Specifications
| Unit Type | Name | Specifications | Assigned Unit | Current Consumption (A) | Model | Standard | ||
| <rowspan="2">Control Method/Control Output Interface | Number of Controlled Axes | Number of Components | 5V | 24V | ||||
| System | System | |||||||
| CJ1 | Position Control Unit | Pulse Train Output/Open Collector Output Open Loop Control | 1 Axis | 1 | 0.25 | --- | CJ1W-NC113 | UC1, CE |
| High Functionality | 2-Axis | 0.25 | --- | CJ1W-NC213 | ||||
| I/O Unit | 4-Axis * | 2 | 0.36 | --- | CJ1W-NC413 | |||
| Open-Loop Control with Pulse Train Output/Linear Driver Output | 1 axis | 1 | 0.25 | --- | CJ1W-NC133 | |||
| 2 axis | 0.25 | --- | CJ1W-NC233 | |||||
| 4 axes * | 2 | 0.36 | --- | CJ1W-NC433 | ||||
| Space Unit | The operating ambient temperature range can be increased to 0～55°C (provided that the CJ1W-SP001 CJ series space unit is used). | CJ1W-SP001 | UC1, CE | |||||
| Note: This unit cannot be used with the NJ series equipment automation controller. | ||||||||
| * The operating ambient temperature of CJ1W-NC413/NC433 is 0～50°C. The allowable range of external power supply voltage is DC22.8～25.2V. |
| Project | Model | ||
| CJ1W-NC113/133 | CJ1W-NC213/233 | CJ1W-NC413/433 | |
| Power Supply Voltage | DC5V (for PCU itself) | ||
| DC24V (external power supply) | |||
| Permissible power supply voltage variation range | DC4.75～5.25V (for PCU itself) | ||
| DC21.6～26.4V (External power supply) | DC22.8～25.2V | ||
| (External power supply) | |||
| DC4.75～5.25V (External power supply, linear driver output (only)) | |||
| Internal current consumption | DC5V: Below 250mA | DC5V: Below 250mA | DC5V: Below 360mA |
| External Power Supply Current Consumption | NC113: DC24V: Below 30mA | NC213: DC24V: Below 50mA | NC413: DC24V: Below 100mA |
| NC133: DC24V: Below 10mA | NC233: DC24V: Below 20mA | NC433: Below 30mA at DC 24V||
| NC233: Below 120mA at DC 5V | NC433: Below 230mA at DC 5V | ||
| Operating Ambient Temperature | 0～55°C | 0～55°C * | |
| Note: Specifications not listed above conform to general CJ series specifications. |
Technical Specifications
| Specification | Value |
|---|---|
| Category | Position Control Unit |
| Brand | Omron |
Plain language sourcing guide for OMRON CJ series position control unit, CJ1W-NC213
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Omron | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
