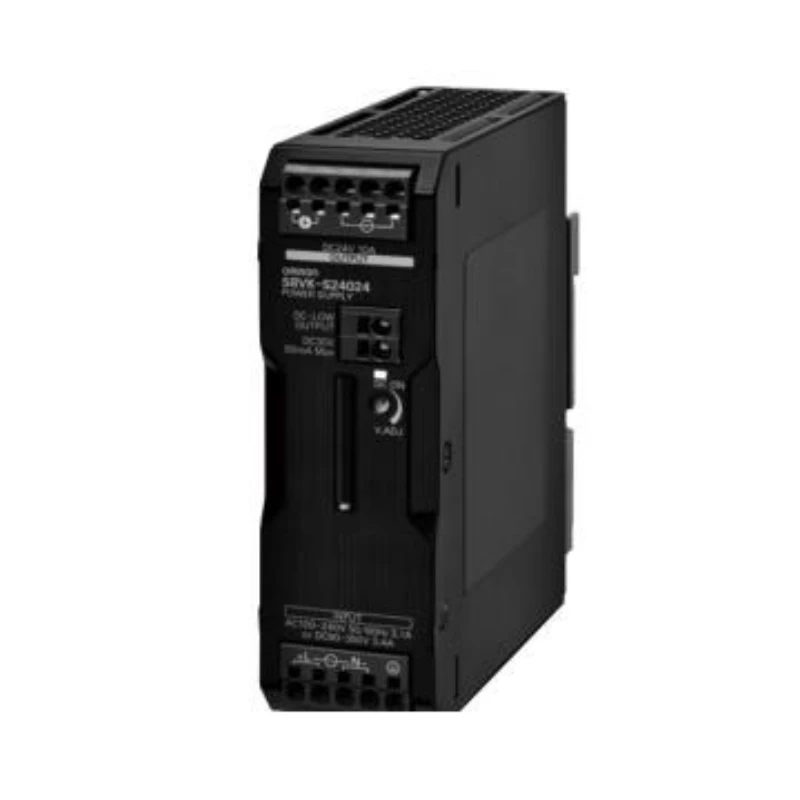

OMRON switching power supply, S8VK-S24024
LEHIY item code: LH-OMRON-2613
Temperature variation: AC100V~240V Input
Category: Switching Power Supply
Voltage Variable Range *5: 21.6～28V (V.ADJ)
Quick buying check
This page helps you check OMRON switching power supply, S8VK-S24024 before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Introduction Overview
| Power | Rated Input Voltage | Rated Output Voltage | Rated Output Current | Maximum Peak Current | Model |
|---|---|---|---|---|---|
| 60W | AC100～240V (Tolerant Range AC85～264V, DC90～350V) | 24V | 2.5A | 3A | S8VK-S06024 |
| 120W | 24V | 5A | 6A | S8VK-S12024 | |
| 240W | 24V | 10A | 15A | S8VK-S24024 | |
| 480W | 24V | 20A | 30A | S8VK-S48024 |
Technical Specifications
| Power | 240W | 480W | |
|---|---|---|---|
| Project | Rated Output Voltage | 24V | 24V |
| Efficiency | AC115V Input *1 | 91% typ. | 91% typ. |
| AC230V Input *1 | 93% typ. | 93% typ. | |
| Input Conditions | Input Voltage Tolerance *2 | Single-phase AC85～264V, DC90～350V*13, AC265～300V (1 second) | |
| Frequency *2 | 50/60Hz (47～63Hz) | ||
| Input Current | AC115V Input *1 | 2.4A typ. | 4.6A typ. |
| AC230V Input *1 | 1.3A typ. | 2.3A typ. | |
| 0.9 or higher | 0.9 or higher | ||
| Leakage Current * 3 | AC115V Input | Below 0.5mA | |
| AC230V Input | Below 1mA | ||
| Surge Current * 4 (25℃, Cold Start) | AC115V Input | 16A typ. | |
| AC230V Input | 32A typ. | ||
| Output Characteristics | Rated Output Current | 10A | 20A |
| Rated Output Power | 240W | 480W||
| Maximum Peak Current | 15A | 30A | |
| Voltage Variable Range *5 | 21.6～28V (V.ADJ) | ||
| Ripple Noise Voltage *6 | AC100V ～240V Input *1 | Below 100mVp-p Bandwidth 20MHz | Below 130mVp-p Band size 20MHz |
| Static input variation *7 | Below 0.5% | ||
| Static load variation *8 | Below 1.5% | ||
| Temperature variation | AC100V~240V Input | Below 0.05%/℃ | |
| Startup Time *4 | AC115V Input *1 | Below 1,000ms | Below 1,000ms |
| AC230V Input *1 | Below 1,000ms | Below 1,000ms | |
| Output Hold Time *6 | AC115V Input *1 | 35ms typ. | 30ms typ. |
| AC230V Input *1 | 35ms typ. | 30ms typ. | |
| Included Function | Overcurrent Protection | Yes, Automatic Reset | |
| Overvoltage Protection *9 | Yes, Overvoltage protection at 130% or higher, circuit breaking (power-off reset) | ||
| Inline Operation | Can be used (up to 2 units, external diode required) | ||
| Parallel Operation | Can be used (up to 2 power supplies) Please refer to the sample "●About Parallel Operation". | ||
| Output Indicator Light | Yes (LED, Color: Green) | ||
| Undervoltage Detection Output | Yes (Photoelectric Switch Output DC 30V and below, 50mA and below) | ||
| Insulation Withstand Voltage | Withstand Voltage | AC 3.0kV 1min (between all input terminals) and (all output terminals), cutoff current 20mA | |
| AC2.0kV 1min (between all input terminals) and (), cutoff current 20mA | |||
| AC1.0kV 1min (between all output terminals) and (), cutoff current 20mA | |||
| AC500V 1min (between all output terminals) and (all undervoltage detection output terminals), cutoff current 10mA | |||
| Insulation Resistance | Above 100MΩ, DC500V (between all output terminals, all undervoltage detection output terminals) and (all input terminals) | ||
| Environment | Ambient Temperature *10 | -40～+70℃ (Rated attenuation due to temperature) (No freezing or condensation) | |
| Storage Temperature | -40～+85℃ (No freezing or condensation) | ||
| Ambient Humidity | Below 95%RH (Storage humidity below 95%RH) | ||
| Vibration Resistance | 10～55Hz Maximum 5G Single Amplitude 0.42mm 3 Directions 2h Each | ||
| Shock Resistance | 150m/s<sup>2</sup> 6 Directions 3 Times Each | ||
| Reliability | MTBF *11 | Over 135,000 hours | |
| Lifespan *12 | Over 10 years | ||
| Structure | Weight | Under 700g | Under 1,150g |
| Cooling Fan | None | ||
| Protective Construction | IP20, EN/IEC 60529 | ||
| Compliant with Standards | High-order harmonic suppression | Compliant with EN 61000-3-2 | |
| EMI | Noise Terminal voltage | Compliant with EN 61204-3 Class B, EN 55011 Class B | |
| Radiated interference Electric field strength | Compliant with EN 61204-3 ClassB, EN 55011 ClassB | ||
| EMS | EN 61204-3 high severity levels | ||
| Safety Standards | UL Listing: UL 508,ANSI/ISA 12.12.01 cUL: CSA C22.2 No.107.1, CSA C22.2 No.213 UL UR: UL 60950-1(Recognition) OVCⅡ (≦3000m) Pol2 cUR: CSA C22.2 No.60950-1 OVCⅡ (≦3000m) Pol2 EN: EN 50178 OVCⅢ (≦2000m) OVCⅡ (2000m＜and≦3000m) Pol2、 EN 60950-1 OVCⅡ (≦3000m) Pol2 Complies with PELV (EN/IEC 60204-1) standard *13 Complies with EN/IEC 61558-2-16:2009+A1:2013 standard *13 | ||
| Marine Standards *13 | LR Standard, DNV G Standard (DNV (GL is applying) | ||
| SEMI Standard | Compliant with SEMI F47-0706 (AC200～240V input) standard |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Series | S8VK |
| Category | Switching Power Supply |
| Rated Power (W) | 240 |
| Output Voltage (V) | DC24 |
| Rated Power (kW) | 0.24 |
