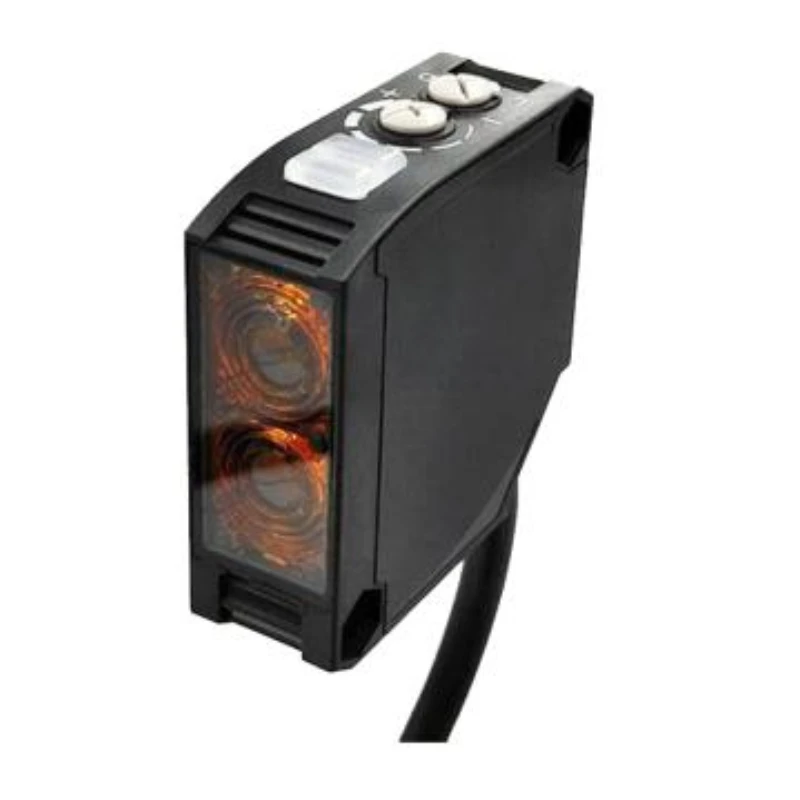

OMRON photoelectric sensor, E3JK-RR11-C 2M OMS
LEHIY item code: LH-OMRON-2412
Ambient Temperature: -25～55℃ (but must be free from icing and condensation)
Category: Photoelectric Sensor
Power Supply Voltage: AC24～240V±10% 50/60Hz
Quick buying check
This page helps you check OMRON photoelectric sensor, E3JK-RR11-C 2M OMS before you ask for a quote.
Confirm the brand, model number, part number, and quantity. Share a clear nameplate photo when the old item has close variants.
LEHIY can check stock, lead time, packing, shipping documents, and safe replacement options for maintenance orders.
Product Introduction Overview
| Detection Method | Retroreflective Type (No MSR Function) |
| Detection Distance | When using reflector E39-R1: 100mm～7m |
| When using reflector E39-R2: 100mm～11m | |
| Light Source | Red LED (624 nm) |
| Connection Method | Wire Lead-out Type |
Technical Parameters</t> Specifications
| Shape | Square |
| Detection Method | Retroreflective (without MSR function) |
| Detection Distance | When using reflector E39-R1: 100mm～7m |
| When using reflector E39-R2: 100mm～11m | |
| Standard Detection Object | Opaque: φ75mm and above (when using reflector E39-R1) |
| Opaque Body: φ100mm or larger (when using reflector E39-R2) | |
| Pointing Angle | 1.5° or larger |
| Light Source | Red LED (624 nm) |
| Power Supply Voltage | AC24～240V±10% 50/60Hz |
| DC24～240V±10% Ripple (p-p) less than 10% | |
| Power Consumption | Less than 2W |
| Control Output Relay Output (1c) | |
| AC250V 3A (cosφ=1) or less | |
| DC5V 10mA or more | |
| Lifespan (Relay Output) | Electrical type: Over 100,000 cycles (switching frequency 1800 times/hour) |
| ON when light enters/ON when light is blocked (switchable) | |
| Protection Circuit | Anti-Interference Function |
| Response Time | Below 20ms |
| Sensitivity Adjustment | Single-Direction Rotary Knob |
| Ambient Illumination | Incandescent Lamp: 3,000lx |
| Sunlight: 11,000lx | |
| Ambient Temperature | -25～55℃ (but must be free from icing and condensation) |
| Storage Temperature | -40～70℃ (but must be free of freezing and condensation)|
| Ambient Humidity | 35～85% (but must be free of condensation) |
| Storage Humidity | 35～95% (but must be free of condensation) |
| Insulation Resistance | Above 20MΩ (using a DC 500V megohmmeter) |
| Withstand Voltage | AC1500V 50/60Hz 1min |
| Vibration | Durability: 10～55Hz Dual Amplitude 1.5mm X, Y, Z directions, 2h |
| Misoperation: 10～55Hz Dual Amplitude 1.5mm X, Y, Z directions, 2h | |
| Impact | Durability: 500m/s<sup>2</sup>X, Y, Z directions, 3 times |
| Misoperation: 100m/s<sup>2</sup>X, Y, Z directions, 3 times | |
| Protection Level | IEC: IP64 |
| Connection Method | Wire Lead-out Type (Wire length 2m) |
| Indicator Lights | Action Indicator (Orange), Stabilization Indicator (Green) |
| Weight | Packaged: Approx. 180g |
| Accessories | Instruction Manual, Mounting Bracket, Reflector |
| Material | House: ABS |
| Lens: Isobutylene Resin | |
| Display: Isobutylene Resin | |
| Rotating Knob: POM | |
| Cable: PVC |
Product Applications
A photoelectric sensor is a device that converts light signals into electrical signals. Its working principle is based on the photoelectric effect. The photoelectric effect refers to the phenomenon where electrons in a substance absorb the energy of photons when light shines on it, resulting in a corresponding electrical effect. Based on the different phenomena of the photoelectric effect, it is divided into three categories: external photoelectric effect, internal photoelectric effect, and photovoltaic effect. Photoelectric devices include phototubes, photomultiplier tubes, photoresistors, photodiodes, phototransistors, and photovoltaic cells. The performance and characteristic curves of photoelectric devices are analyzed. |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | OMRON |
| Category | Photoelectric Sensor |
Plain language sourcing guide for OMRON photoelectric sensor, E3JK-RR11-C 2M OMS
Start with the full model name. Check the brand name. Check the part number. Check the code on the old unit. These small checks help you avoid a wrong order.
Take one clear photo of the front label. Take one photo of the side label. If the part has a cable, plug, port, seal, coil, or screen, take a photo of that area too.
Tell us the quantity you need. Tell us your country. Tell us the date when the plant needs the part. We can then check stock, lead time, safe packing, and the best shipping plan.
If the exact model is no longer made, do not guess. Send the old model and the use case. LEHIY can compare close options and explain which choice is safer for repair work.
Use simple order notes. Write the model in one line. Write the quantity in one line. Write the delivery country in one line. This helps our team reply faster.
Check the old part before removal. Look at the label. Look at the connector. Look at the mounting size. Look at the voltage or pressure rating if it is shown.
Do not rely on a short nickname for a part. Many industrial items have close versions. A small suffix can change the plug, output, range, or software setting.
Ask for a stock check if the plant is stopped. Ask for a lead time if the order is planned. Ask for packing photos if the part is fragile or heavy.
For a replacement order, tell us what failed. Tell us where the part is used. Tell us if an equal model is acceptable. This makes the first answer more useful.
For repeat orders, send the last invoice, old label, or old packing photo. The same reference can help us match the correct product again.
For urgent service, keep the message simple. One model, one quantity, one photo, and one delivery target are enough for a fast first check.
Share Article
| Brand Name: | Omron | Certification: | ISO9001, CE |
|---|---|---|---|
| Place of Origin: | China | Condition: | New |
| Warranty: | 1 year | Customized sourcing: | available |
What are your strengths?
Ans. LEHIY specializes in industrial automation and control components, offering fast sourcing, stable quality, and competitive prices for global customers.
What is your estimated delivery time?
Ans. Most items ship within 3-7 days. Customized or rare models may take 10-30 working days.
What are your primary product offerings?
Ans. Our main products include PLCs, sensors, valves, solenoid valves, actuators, power modules, transmitters, and complete industrial automation solutions.
How can I get in touch with you?
Ans. You can reach us anytime via Email, WhatsApp, LinkedIn, or our contact page. Our sales engineers respond quickly and provide technical support when needed.
What are your payment terms?
Ans. Standard terms are 50% TT in advance and 50% balance before delivery. We also support Alibaba Trade Assurance and L/C for qualified orders.
Feel free to Ask questions
Replacement support
OMRON photoelectric sensor, E3JK-RR11-C 2M OMS
Send the brand, model, part number, quantity, nameplate photos, and application requirements. LEHIY will check availability, suitable alternatives, packing details, and delivery options before quoting.
For discontinued, temporarily unavailable, or configuration-sensitive items, our team can compare the requested model with close variants or compatible replacements for maintenance and spare parts planning.
Use this page as a practical sourcing note for engineers, buyers, and maintenance teams comparing automation components. Check the model name, brand, LEHIY code, application, and replacement requirements before sending an inquiry.
Short, clear information helps our team confirm availability faster and reduce back-and-forth communication during urgent maintenance projects.
- Confirm the complete model number and any suffix printed on the nameplate.
- Share quantity, destination country, preferred shipping method, and target delivery date.
- Include photos, drawings, old purchase records, or datasheets when compatible alternatives are acceptable.
- Ask for stock checking, replacement comparison, packing details, and export documentation before ordering.
Useful details for a faster quote
- Complete model and part number
- Required quantity and target delivery date
- Nameplate photos, drawings, or old purchase records
- Voltage, signal range, dimensions, or accessory needs
Model matching
We review brand, model, part number, nameplate photos, installation environment, and replacement requirements.
Quality and delivery
Each order can be checked for authenticity, condition, packing, warranty, shipping method, and delivery schedule.
Stock alternatives
For urgent maintenance projects, we can help check stock, compatible alternatives, and fast international shipment.
OMRON photoelectric sensor, E3JK-RR11-C 2M OMS verification notes
Please send the full model number, quantity, target delivery date, and nameplate photos. These details help us check the requested product or a close replacement.
LEHIY reviews product name, part number, series, label information, and application requirements before shipment.
If the original model is discontinued or supplied with different accessories, we can explain practical differences before quoting.
For repeat purchasing, we can help organize related models, replacement parts, shipment schedules, and clear communication for your team.
